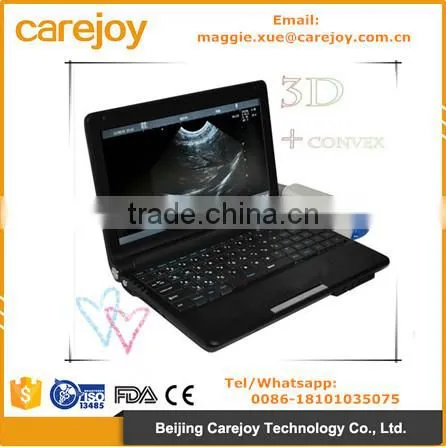

CE approved Laptop Ultrasound machine with Convex Linear Probe price 10 inch external 3D software optional
Ultrasound Scanner
This laptop versatile linear & convex ultrasound system is ideal for mixed practice. It is designed for bedside use and emergency scanning (triage ultrasound) either on site or in a rescue situation. RUS-9000F, weight only 1.5kg, is distinguishable by its bright and clear image quality. The probes offer a wide range of diagnostic applications. This scanner is a cost effective solution for family doctors, veterinary scanning. The complete software package, the multi-step zoom, and the high product versatility are available in it.
Advanced digital imaging technology
DBF: Digital Beam Forming technology
DFS: Dynamic Frequency Scanning technology
DRF: Dynamic Receiving Focusing technology
RDA: Real-time Dynamic Aperture imaging technology
DRA: Real-time Dynamic Receiving Apodization technology
Specification:
Performance:
Image mode: B, B+B, 4B, B+M, M
Grey: 256
Display: 10.1-inch high-resolution TFT LCD
Probe frequency: 2.5~10.0 MHz
Probe connector: 1
Lateral resolution: ≤3 mm (depth ≤80mm)
≤4 mm (80mm≤depth ≤130mm)
longitudinal resolution: ≤2 mm (depth ≤80mm)
≤3 mm (80mm≤depth ≤130mm)
Detectable depth: ≥160mm
Blind area: ≤5mm
Geometrical position distortion: Lateral ≤15
Longitudinal ≤10
Image processing:
Pre-processing: Continuously variable aperture
TGC (Near Middle Far)
Dynamic filtering
Dynamic Range
Edge enhancement
Frame correlation
Smooth
Post- processing: Gray map
Black/white reverse
Left/right reverse
Up/down reverse
Function:
Cine loop: 192-frame cine loop memory
Zoom: X0.8X0.9X1.0X1.1X1.2X1.3X1.4X1.5
magnifications in real time
Permanent Storage: 1024
Storage media: massive image-storage capacity
USB disk
SD card
Front panel control: Brightness, overall gain of the image
Focusing method: Automatic multi-stage focusing
OSD (On Screen Display): Date, Time, age, sex, Patient ID and hospital, information, Gain, Focusing, Comments, Scroll, Zoom setting
Measurements: Distance, circumference, area/perimeter, volume, heart rate, pregnant week, fetal weight, etc.
Body-marks: More than forty different body-markers
Adjustable biopsy guideline: Guidance for puncture
Sleep mode: save energy and protect screen and probe
Parameter Preset: Suitable present for different application (Gynecology, Heart, Abdomen)
Image mode: B, B+B, 4B, B+M, M
Measurement & Calculations
B mode: Distance, circumference, area, volume
M mode: Distance, velocity, heart rate
Software packages:
Abdomen (Distance, circumference, area, volume)
GYN/OB (EDD,GA,BPD,GS,CRL,AD,AC,FL,HC,FTA,APTD,TTD,FW),
Cardiology (SAm, SL, SAi, SD, DAm, DL, DAi, DD, ESV, EDV, SV, EF)
Others
Peripheral port: Video output 1
USB port 2
MiniUSB2.0 port
Power supply: AC 100~240V
50Hz/60Hz
Dimension (cm): 37(L)X27(W)X6(H)
Net weight: 1.5 KG
Standard Configurations:
Main unit
10.1-inch high-resolution TFT LCD
1 each 3.5MHz R60 convex probe
1 probe connector
192 frames cine-loop
1024 permanent storage
OB report
OB & GYN & Cardiac software
2 USB port & 1 mini2.0USB port
VALENX Li-ion battery
Optional
7.5MHz linear probe
6.5MHz Trans-vaginal probe
5.0MHz Micro-convex probe
