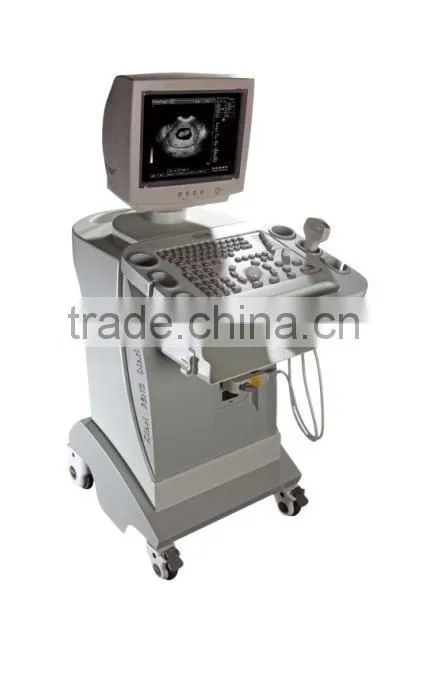

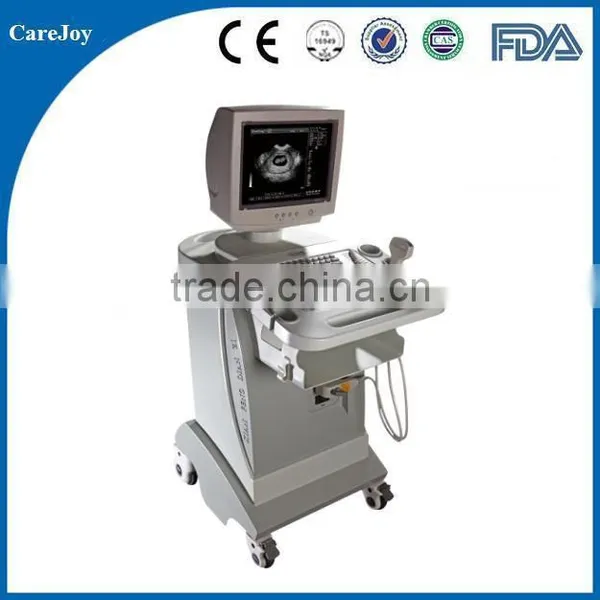

Hospital Equipment Ultrasonic/Ultrasound Scanner,Trolley Ultrasound

Hospital Equipment Ultrasonic/Ultrasound Scanner,Trolley Ultrasound

Features:
Full digital imaging technology

DBF: Digital Beam Forming
RDA: Real-time dynamic aperture imaging
DRA: Dynamic real-time acoustic apodizer
DRF: Dynamic receiving focus
DFS: Dynamic frequency scanning
Ensure that the image is not distorted, edge clearer, level richer
Humanized operating design
8 sections TGC gain adjustment
With abundant built-in software packages
Comprehensive software measurement capabilities, to allow more extensive clinical application
Two probe connectors
Probe connected with a variety of choice to achieve maximum functionality.
Excellent value for money
VLSI, advanced technology, stable performance
Reasonable cost control, to achieve the perfect embodiment of price and performance

Specification:
Image mode: B, B/B, 4B, B+M, M
Image magnification: *0.8, *1.0, *1.2, *1.5, *1.8, *2.0
Local zoom: 2 times local zoom in real time
Dynamic range: 64dB – 96dB adjustable
Focus: 4-segments dynamic electronic focuses selected
Gray scale: 256
Pre-processing: variable aperture, image direction, dynamic filter, edge enhancement, etc.
Post-processing: digital space time filter, 8 y corrections, 16 Pseudo Colors, column correlation, frame correlation, spot correlation, linear interpolation, etc.
Multi-frequency: 2.5MHz/3.0MHz/3.5MHz/4.0MHz etc.
Multi-frequency selected
Measurement: distance, circumference/acreage, HR, pregnancy week (BPD, GS, CRL, FL, AC) and calculating fetus weight, etc.
Annotation: Chinese/English interface transition; hospital name, doctors/patients name, case number, gender, age; 16 body marks with probe location, full screen character annotation, real time clock display
Puncture lead: Image B: Puncture guide line under B mode
Gain adjustment: 8-segments TGC adjustment, GAIN adjustment or near field, far field, overall gain adjustable
Image reverse: left/right, black/white, up/down
Storage: 128 images permanent storage
Cine loop: 256 images real time display cycling/one-by-one checked
Output interface: 2 SVGA video outputs, SVGA color monitor circumscribed; 2 PAL video outputs, which can be connected with PAL standard monitor, Video thermal recorder, ultrasound image workstation, etc.

Standard configuration:
10-inch SVGA high resolution monitor
2 probe connector
1 USB

Optional:
80 elements R60, 3.5MHz multi-frequency convex probe
High frequency linear probe
Electronic trans-vaginal probe
Rectal probe
Video thermal recorder
3D Ultrasound image working station, etc.

Package Content:
- Main Unit:                                          1 each
- Power cable:                                     1 each
- Ground Line:                                    1 each
- Fuse (3A):                                        2 each
- User Manual in English:                    1 each

Package: Standard export carton.

Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.

1. 18 months warranty for the mainframe from date of shipment under normal use and service.

2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.

3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.

4. OEM/ODM services are available.
