2016 Large Screen LED Hot Sale Portable Ultrasounic Diagnose Scanner Machine System with 2 Probe/Transducer Connector
Features for Ultrasound Scanner:
DBF: Digital Beam Forming
RDA: Real-time dynamic aperture imaging
DRA: Dynamic real-time acoustic apodizer
DRF: Dynamic receiving focus
DFS: Dynamic frequency scanning
Ensure that the image is not distorted, edge clearer, level richer.
Humanized operating design.
8 sections TGC gain adjustment.
With abundant built-in software packages.
Comprehensive software measurement capabilities, to allow more extensive clinical application.
Two probe connectors.
Probe connected with a variety of choice to achieve maximum functionality.
Excellent value for money.
VLSI, advanced technology, stable performance.
Reasonable cost control, to achieve the perfect embodiment of price and performance.
Specification for Ultrasound Scanner:
Image magnification: *0.8, *1.0, *1.2, *1.5, *1.8, *2.0
Local zoom: 2 times local zoom in real time
Dynamic range: 64dB – 96dB adjustable
Focus: 4-segments dynamic electronic focuses selected
Gray scale: 256
Pre-processing: variable aperture, image direction, dynamic filter, edge enhancement, etc.
Post-processing: digital space time filter, 8 y corrections, 16 Pseudo Colors, column correlation, frame correlation, spot correlation, linear interpolation, etc.
Multi-frequency: 2.5MHz/3.0MHz/3.5MHz/4.0MHz etc. Multi-frequency selected
Measurement: distance, circumference/acreage, HR, pregnancy week (BPD, GS, CRL, FL, AC) and calculating fetus weight, etc.
Annotation: Chinese/English interface transition; hospital name, doctors/patients name, case number, gender, age; 16 body marks with probe location, full screen character annotation, real time clock display
Puncture lead: Image B: Puncture guide line under B mode
Gain adjustment: 8-segments TGC adjustment, GAIN adjustment or near field, far field, overall gain adjustable
Image reverse: left/right, black/white, up/down
Storage: 128 images permanent storage
Cine loop: 256 images real time display cycling/one-by-one checked
Output interface: 2 SVGA video outputs, SVGA color monitor circumscribed; 2 PAL video outputs, which can be connected with PAL standard monitor, Video thermal recorder, ultrasound image workstation, etc.
Standard configuration:
10-inch SVGA high resolution monitor
2 probe connector
1 USB
Optional:
80 elements R60, 3.5MHz multi-frequency convex probe
High frequency linear probe
Electronic trans-vaginal probe
Rectal probe
Video thermal recorder
3D Ultrasound image working station, etc.

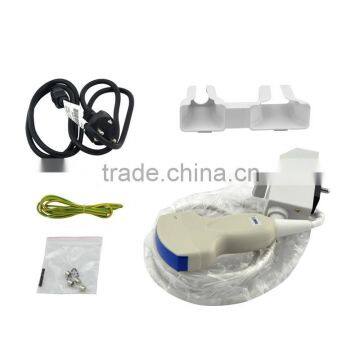

Package Content:
- Main Unit: 1 each
- Power cable: 1 each
- Ground Line: 1 each
- Fuse (3A): 2 each
- User Manual in English: 1 each
- Packing list: 1 each
- Optional part: 1 set
Details show:
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
