CE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex Probe Ultrasound Machine

CE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex Probe Ultrasound Machine thumbnail-1
CE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex Probe Ultrasound Machine thumbnail-2
CE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex Probe Ultrasound Machine thumbnail-3

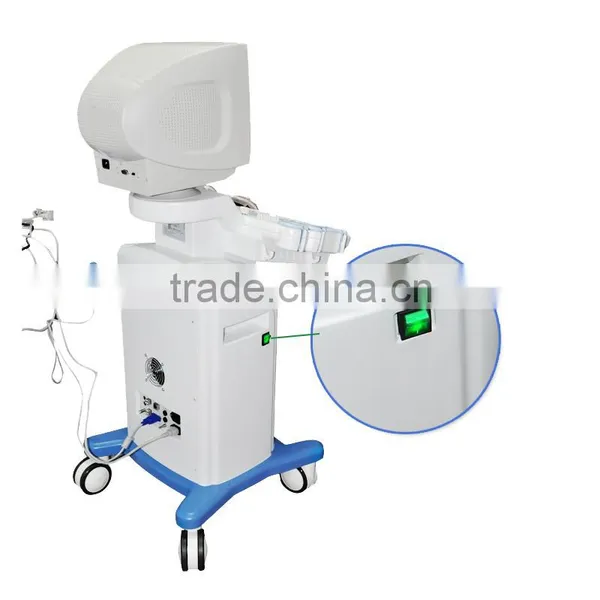

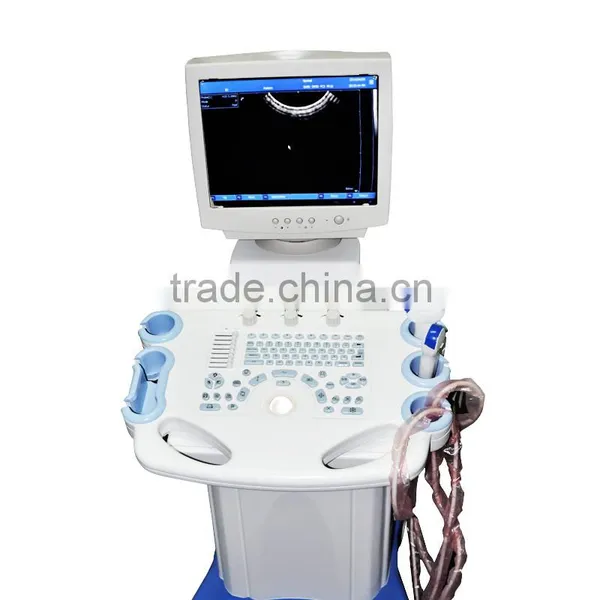

CE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex Probe Ultrasound Machine photo-1
CE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex Probe Ultrasound Machine photo-2
CE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex Probe Ultrasound Machine photo-3
US$ 700 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Doppler Ultrasound Equipment, Trolley
Brand Name:
Carejoy
Model Number:
RUS-9000C
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Doppler Ultrasound Equipment, Trolley
Brand Name Carejoy
Model Number RUS-9000C
Place of Origin Beijing, China





Product Description



Trolley Ultrasound Scanner:



Digital Ultrasonic Diagnostic imaging System
Incorporated with the latest micro-electronic technology and image processing techniques such as BDBF, RDF, DFS, RDA, DRF and THI, RUS-9000C delivers excellent image clarity and accuracy, features a wide selection of broadband hign density transducers for general and specialty clinical applications of abdominal, OB/GYN, gynecology, cardiology, small organ, and urinary, etc, with optimal penetration and resolution. Powerful embedded PC work platform contributes to simple, efficient and pleasant operation experience.

  • Technical Specifications

  • Transducer Type: linear/convex/micro-convex array

  • Scan Mode: B, B/B, B/M, M, 4B

  • Gray Scale: 256

  • Monitor: 14” non-interlaced
  • Transducer Frequency: 4-frequency, 2.0-10.0 MHz (depengding on transducers)

  •  Scanning Angle: 60-160 degree (depending on transducers)

  •  Scanning Depth: 20-240 mm (depending on transducers)

  •  Imaging Processing: Tissue Harmonic Imaging (THI)
                       Tissue Specific Imaging (TSI)
                         Frame correlation
                         Edge inhancement
                         y-correlation
                         8-segment TGC adjustment

  • Image Reverse: 90/180/270℃, positive/negative
  •  Dynamic Range: ≥100 Db, 4-STEP switch
  •  Zoom: continuously, PIP (Picture in picture)
  •  Cine-loop: 256 frames manually or automatically, 4B or 9B, B/M or M mode cine loop

  • Permanent Storage: >50000 Frames

  • Display Info.: Date, Time, Hospital Name, Patient Mame/ID/Age/Sex/Weight, Transducer/Frequencey, etc
  •  Software Packages: General, Obstetric, Gynecology, Cardiology, Organ, Urinary
  • Measurement &Calculation: distance, circumference, area, volume, angle, time, velocity, heart rate, residual urine, etc. Automatic measurement and calculation software packages of obstetric , gynecology, organ, cardiology and urinary.

  • Peripheral Ports: Video, S-Video, VGA, RS232, RJ-45, USB 2.0
  • Power supplier: 100-260V, 50/60Hz
  • Net Weight: 55kgs
  •  Carton Size (monitor included): 86(L)×66(W)×106(H) CM

Standard configurations:

  • 14" non-interlaced monitor
  • Main unit with abundant built-in software packages and  peripheral ports, 2 transducer connectors
  • R60/2.5/3.5/4.0/5.0MHz convex AC power cable
  • Coupling gel
  • Operation manual

Optional:

  • R20/2.0/3.5/4.0/5.0MHz micro-convex transducer(128 element)
  • R10/5.0/6.5/7.5/8.0MHz transvaginal transducer (128 element)
  • L40/5.0/6.5/7.5/10.0MHz high frequency linear transducer(128 element)
  • 3-D re-construction software
  • DICOM3.0
  • Biopsy guide
  • Video, laser or jet printer
  • Video recorder
  • CD/DVD ROM
  • 160G hard disk
  • SD/CF card
  • Flash disk

CE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex probe ultrasound machineCE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex probe ultrasound machineCE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex probe ultrasound machineCE Approved PC Platform Trolley Ultrasound Scanner RUS-9000C With Convex probe ultrasound machine







Company Information



Our company has been a professional manufacturer & distributor for high-tech medical equipments since 2001.





We aims to provide the costeffective, reliable performance products. By collaborating with famous universities

and organizations, the company has designed and produced several types medical equipments in China market.

The quality management system of our company is ISO13485 certified.

Our products are also CE certified by MedCert Germany CE 0482.

Our company has a considerable market share in China domestic market and a growing increase in international market.





We aims to build good business relationships with more international distributors and customers sincerely.

We assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices

and rapid & effective customer service
