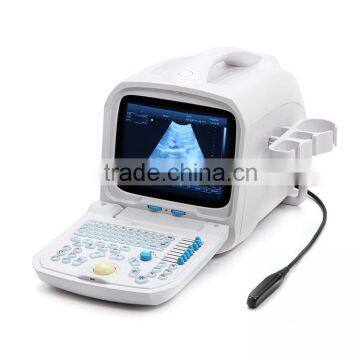

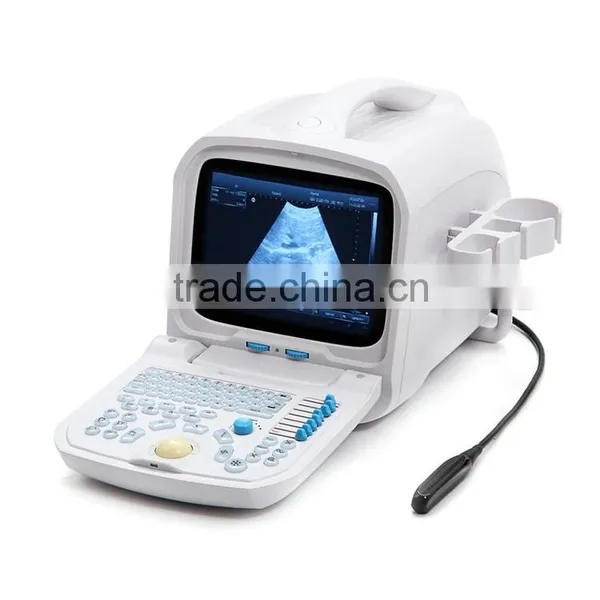

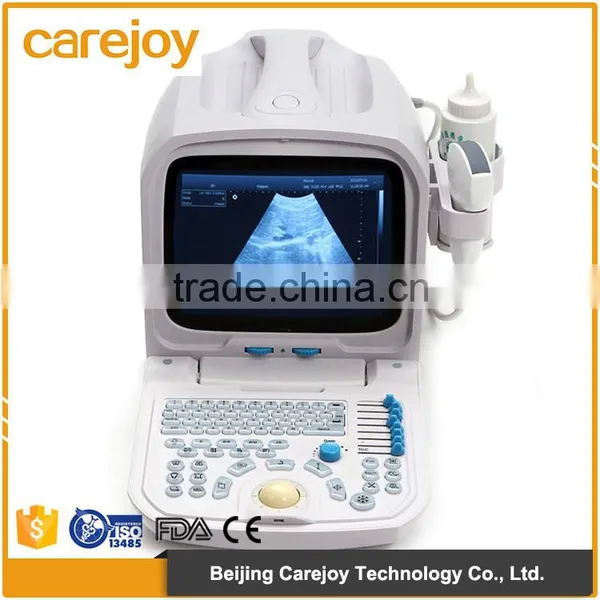

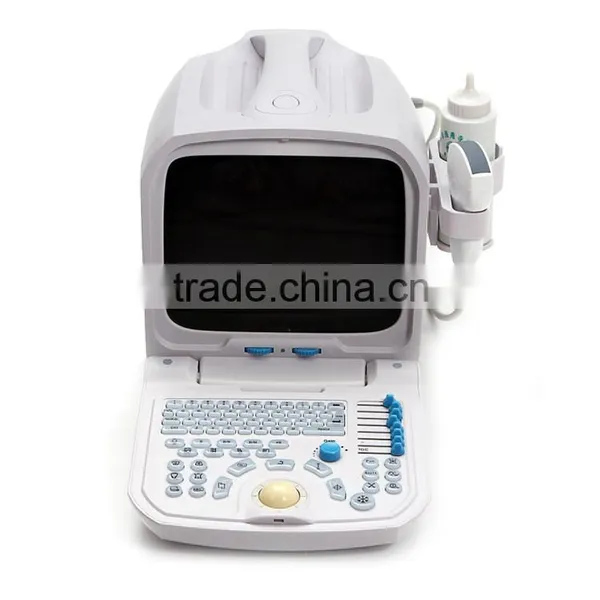

Beautiful compact diagnostic ultrasound probe / mini ultrasound machine / Portable ultrasound scanner
Features for Portable Ultrasound Scanner:
- Application of FPGA& SMT technology, brief circuits with reliable performance
- Dynamic frequency imaging, multistage focusing, aperture control
- Multi-frequency (4-frequency) & high sensitivity probe contributes to high resolution images
- Applicable to abdominal, obstetrics, gynecological, urological and small parts diagnosis
- Cline-loop & permanent image storage
- 8-segment TGC
- Built-in color coding module & VGA video outlet

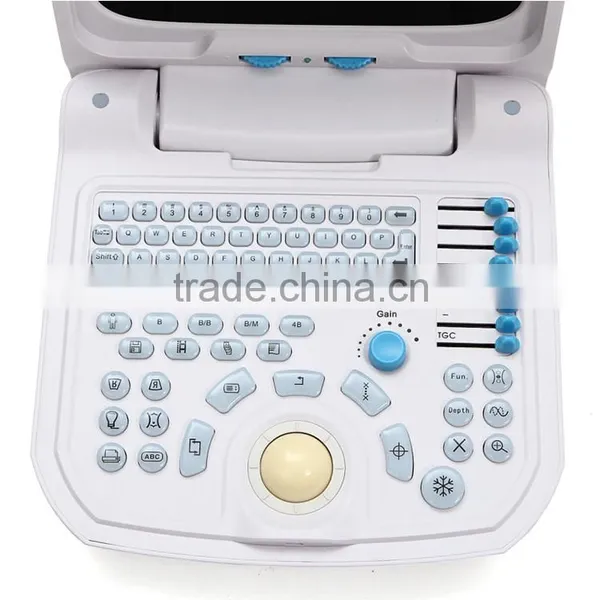

- User-friendly with one-touch keyboard & trackball operation
- USB port
Specification for Portable Ultrasound Scanner:
- Display modes: B, B+B, B+M, M, 4B
- Scanner depth: 230mm
- Gray scale: 256
- Image magnification: x0.8, x1.0, x1.2, x1.5, x2.0
- Cline-loop: maximum 128 frames
- Permanent Image storage: 32 frames
- Image conversion: up/down, left/right, black/white
- Local zoom: 4(can be used at frozen/real-time)
- Frame correlation: selectable 4 levels
- Body marks: 43
- Pseudo color processor: 7 colors
- Video output: PAL-D, VGA
- Monitor: external monitor can be used
- Measurement: distance, circumference, area, heart rate, pregnant week, fetal weight, EDD
- Comments: real-time clock, date, scanning depth, model of probes, parameter of frame correlation, combination of focus, patient’s ID, gender, age
- Power supply: AC220V±22V or AC110±11V, 50Hz±1Hz or 60 Hz±1Hz
- Gross Weight: 12kgs
- Net Weight: 10kgs(including probe)
- Carton Size: 47cm x 39cm x 39cm
Optional:

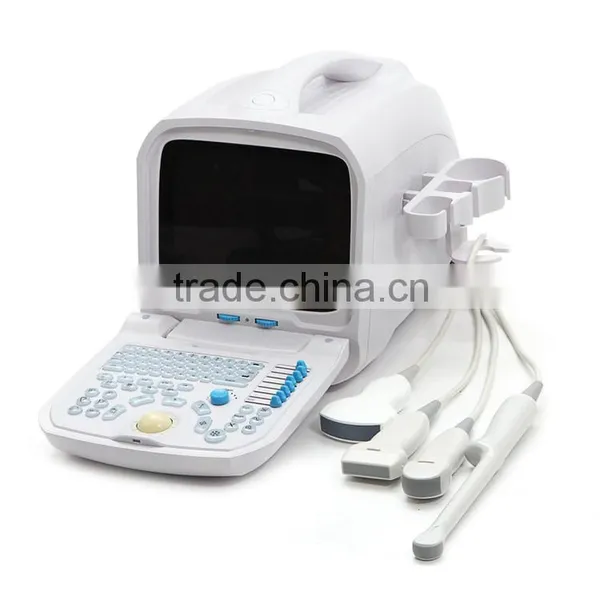

- Micro-convex probe
- High frequency linear probe
- Electronic trans-vaginal probe
- Micro-Convex probe
- Video thermal recorder
- 3D Ultrasound image working station, etc
Package Content:
- Main Unit: 1 each
- Convex probe: 1 each
- Power cable: 1 each
- Ground Line: 1 each
- Fuse (3A): 2 each
- User Manual in English: 1 each
- Packing list: 1 each
Click the link for more styles:
http://jxkh.en.china.cn/productgrouplist-801116687/Ultrasound_Scanner.html
Click the picture for more styles:
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
