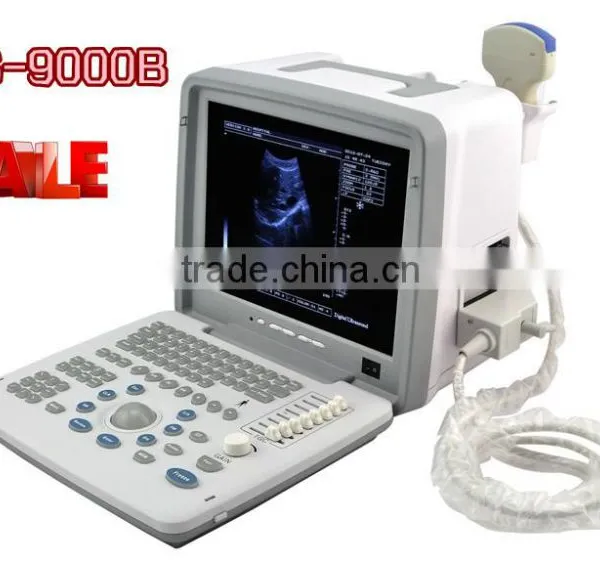

Sale portable Ultrasound Scanner with Convex probe for detecting gynecology obstetrics etc

Ultrasound Scanner

Features:

• Full digital imaging technology

DBF: Digital Beam Forming

RDA: Real-time dynamic aperture imaging

DRA: Dynamic real-time acoustic apodizer

DRF: Dynamic receiving focus

DFS: Dynamic frequency scanning

• Ensure that the image is not distorted, edge clearer, level richer
• Humanized operating design
• 8 sections TGC gain adjustment
• With abundant built-in software packages
• Comprehensive software measurement capabilities, to allow more extensive clinical application
• Two probe/three probe connectors (optional)
• Probe connected with a variety of choice to achieve maximum functionality.
• Excellent value for money
• VLSI, advanced technology, stable performance
• Reasonable cost control, to achieve the perfect embodiment of price and performance

Specification:

• Image mode: B, B/B, 4B, B+M, M
• Image magnification: *0.8, *1.0, *1.2, *1.5, *1.8, *2.0
• Local zoom: 2 times local zoom in real time
• Dynamic range: 64dB – 96dB adjustable
• Focus: 4-segments dynamic electronic focuses selected
• Gray scale: 256
• Pre-processing: variable aperture, image direction, dynamic filter, edge enhancement, etc.
• Post-processing: digital space time filter, 8 y corrections, 16 Pseudo Colors, column correlation, frame correlation, spot correlation, linear interpolation, etc.
• Multi-frequency: 2.5MHz/3.0MHz/3.5MHz/4.0MHz etc. Multi-frequency selected
• Measurement: distance, circumference/acreage, HR, pregnancy week (BPD, GS, CRL, FL, AC) and calculating fetus weight, etc.
• Annotation: Chinese/English interface transition; hospital name, doctors/patients name, case number, gender, age; 16 body marks with probe location, full screen character annotation, real time clock display
• Puncture lead: Image B: Puncture guide line under B mode
• Gain adjustment: 8-segments TGC adjustment, GAIN adjustment or near field, far field, overall gain adjustable
• Image reverse: left/right, black/white, up/down
• Storage: 128 images permanent storage
• Cine loop: 256 images real time display cycling/one-by-one checked
• Output interface: 2 SVGA video outputs, SVGA color monitor circumscribed; 2 PAL video outputs, which can be connected with PAL standard monitor, Video thermal recorder, ultrasound image workstation, etc.
• Optional features: multiple probes connectable, USB port, Video thermal recorder
• Probe connectors: 2 socket, multiple probes connectable

Standard configuration:

• 12-inch LCD monitor
• 2 probe connector
• 1 USB
• 80 elements R60, 3.5MHz multi-frequency convex probe

Optional:

• High frequency linear probe
• Electronic trans-vaginal probe
• Rectal probe
• Video thermal recorder
