Single Twins optional 12 inch Multi parameter FHR TOCO FM Fetal Monitor detecting fetus fetal movement with transducer doppler
Product detail :

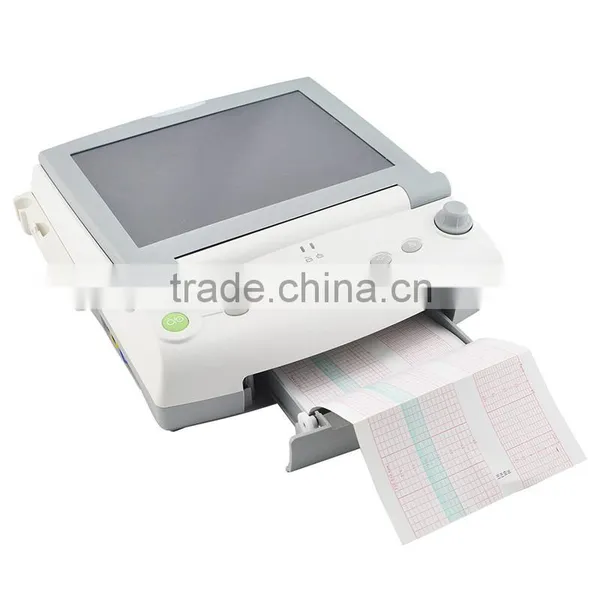

This series is a lightweight, compact fetal and maternal monitor, it can meet the need of whole
stages of labor (including antepartum and intrapartum monitoring for fetus and mother),It also
can be connected to the obstetrical central station.
7Features:
1,12.1 inch true color LCD flip screen, optional touch screen
2,Hidden handle, easy to move, space-saving, easy operation
3 Ultrasound probe: Multi-wafer, wide wave beam, pulse working mode, high sensitivity
1.0-3.0MHZ ultrasound probe optional
4,120-160bpm normal area mark
5,Automatic data storage of 48 hours for play back or print out
6,built-in thermal printer can print immediately or after storing with clear and exquisite
curve.
7,152mm wide line printing which compatible with America and international standard
8,you can set up printing time automatic stopping printing at a appoint time
9,With advanced DSP technology make the FHR reliable and precise
10,with event marker
11,code-operation,easy and convenient
12,A variety of alarm functions which include: tachycardia, bradycardia, printing
time-over indicator, lack of paper and so on
13,with manual/automatic fetal movement functions
14,support wire/wireless network
15,Standard 3 parameters setting, can be upgraded to 6 parameters or 9 parameters
16,This model is a single fetus monitor, it can be upgraded as a twins monitor
,1Technical parameters
Fetal heart rate:
Ultrasound intensity:<5mw/cm2
Working frequency: 1.0-3.0MHz
measurement scope:30-240 bpm
TOCO Pressure:
measuring range:0-100(pressure unit)
Nonlinear error:≤±10%
Fetal Movement: Manual/automatic FM
Alarming scope: Upper limit: 160,170,180,190 bpm
Lower limit: 90,100,110,120 bpm
resolution: ±1BPM
Accuracy: ±1BPM
Power: AC220V±20%, 50Hz/45VA
Dimension/ net weight: 298×240×73(mm)/1.75kg
Working environment:
Temperature:0-70°C
Relative Humidity :10-80%52m
Send Inquiry to This Supplier
