Multi parameter Maternal Monitor Fetal FHR TOCO FM SPO2 PR ECG NIBP RESP TEMP for mothers and infants single twins optional

Multi parameter Maternal Monitor Fetal FHR TOCO FM SPO2 PR ECG NIBP RESP TEMP for mothers and infants single twins optional

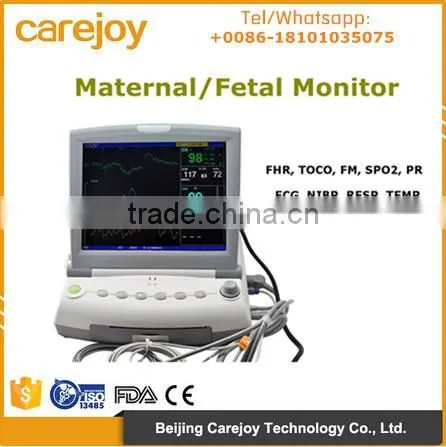

Maternal/Fetal Monitor

1. 12.1" color LCD flip screen,
2. Ergonomic handle design, easy to carry and move.
3. Normal FHR(120-160bpm) area backgroud mark
4. Manual/automatic fetal movement function.
5. Multi-alarming functions ,including tachycardia,bradycardia,printing time-over indicator,shortage of paper, etc.
6. Built-in durable thermal printer with real-time and playback printing function , MTBF more than 20 years .

7. 152mm wide paper, compatible with American and international standard paper .
8. High sensitive multi-wafer Transducer with low ultrasound power (optional 1MHZ-3MHZ).
9. Windows operation system,, easy and convenient coding input keyboard .

Technical Parameters :
Fetal heart rate :

Multi-wafer,wide wave beam,pulse working mode, high sensitivity
Ultrasound intensity:<5mW/cm2
Working frequency:1.0--3.0MHZ(optional)
Measurement scope:30-240bpm
Alarming scope :
upper limit:160,170,180,190 bpm
lower limit:90,100,110,120 bpm
Resolution:±1bpm
Accuracy:±1bpm
Toco Pressure
Measuring range:0-100(pressure unit)
Nonlinear error:≤±10%
Fetal Movement :
Manual/automatic FM
Power:
AC 220V±20%,50Hz<45VA
Working environment:
Temperature:0-70°C
Relative humidity:10-80%
Gross weight
7.5kg
Package dimension :
52*41*52cm
