Home > Health & Medicine > Medical Equipment > Ultrasonic, Optical, Electronic Equipment > Factory Price !!CE Approved Portable Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000A
Factory Price !!CE Approved Portable Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000A
US$ 1,000 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Portable Ultrasonic Diagnostic Devices
Brand Name:
oem
Model Number:
RUS-9000A
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Approved Portable Ultrasound Scanner With 3.5Mhz Multi-frequency Convex Probe RUS-9000ANegotiableMOQ: 1 Set -
China Medical Factory Supply Multi-frequency Digital Cheap Price of Mini Ultrasound Machine for PregnancyUS$ 1,500 - 2,000MOQ: 1 Set
-
Highly Recommend Portable Ultrasound Scanner Optional Convex , Micro-convex,Transvaginal,Linear,Rectal Probe RUS-9000A SupplierUS$ 1,100 - 2,500MOQ: 1 Set
-
New!!! Full Digital Portable Ultrasound Scanner (PC) With Low PriceUS$ 1,400 - 2,999MOQ: 1 Unit
-
Full Digital Portable Ultrasound Scanner RUS-9000A PC Platform 3D WorkstationUS$ 500 - 2,000MOQ: 1 Set
Type
Portable Ultrasonic Diagnostic Devices
Brand Name
oem
Model Number
RUS-9000A
Place of Origin
Beijing, China
Product Description
Applicable fields
- Suitable for the diagnosis of Abdomen, Cardiac, Gynecology, Obstetrics, Thyroid Gland, Small Organs, Urology and so on.
- Widely used for clinical examination and diagnosis. They are the ideal equipments to meet the needs of various kinds of hospitals and clinics.
Leading Digital Technologies
- DBF: Digital Beam Forming
- RDA: Real-time dynamic aperture imaging
- DRA: Dynamic real-time acoustic apodizer
- DRF: Dynamic receiving focus
- DFS: Dynamic frequency scanning, frequency range: 2.0-12.0MHz, 4 kinds of scaning frequencies
Advantages:
- Embedded PC platform is adopted in the ultrasonic master system
- THI
- DFC Dynamic frequency scanning
- Histogram, Sectionl drawing, Puncture guide
- Save hundreds of thousands of images and cine loop permanently
- Dynamic real-time PIP local zoom functions
- Double connectors
- Double USB ports
- Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve
- Auto-create report systems of Gyn., small organs, cardiac, urology and other sections
- Compatible of jet printer, laser printer, video printer and video recorder
Image Processing:
- Display mode: B, 2B, 4B, B/M, M
- Image precess technologies: controllable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation
- Dynamic Range: 100Db, 4 steps of switches
- Image magnification, stepless magnification, dynamic real-time PIP local zoom functions
- Cine loop: 256 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode
- Image management system: the functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode.
Software Functions:
- Measurement and calculation: measure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic.
- Assist tools: puncture guide, histogram, sectional drawing
- Menu manage interface, real time online support and navigation clew system, image fore-set and one-key optimization functions
- Auto-measure software of OB., Gyn., small organs, cardiac, urology and others:
OB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, FI, LIMP, BBT, FBP
Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine
Small organs: thyroid gland, hip joint
Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP, CA/CE, MVCF, CO, CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV
Urology: remained urine sample, prostate, PSAD
- Presetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.
- Patient cases database systems. All the data could be saved, searched and managed
- Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve
- Auto-create report systems of Gyn., small organs, cardiac, urology and other sections
Standard Configuration:
- Main unit
- 10.4 inches SVGA high resolution non-interlaced monitor
- 256 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode
- Two probe connectors
- Two USB ports
- 3.5MHz R60/R50 electronic convex transducer(2.0/5.0MHz, 96 elements)
Optional:
- 7.5MHz L40 linear probe (5.0/10.0MHz, multi-frequency)
- 6.5MHz R10/R13 trans-vaginal probe (5.0/8.0MHz, multi-frequency)
- 3.5MHz R20 cardiac probe (2.0/5.0MHz, multi-frequency)
- Trolley
- Jet printer, Laser printer, Video printer and video recorder

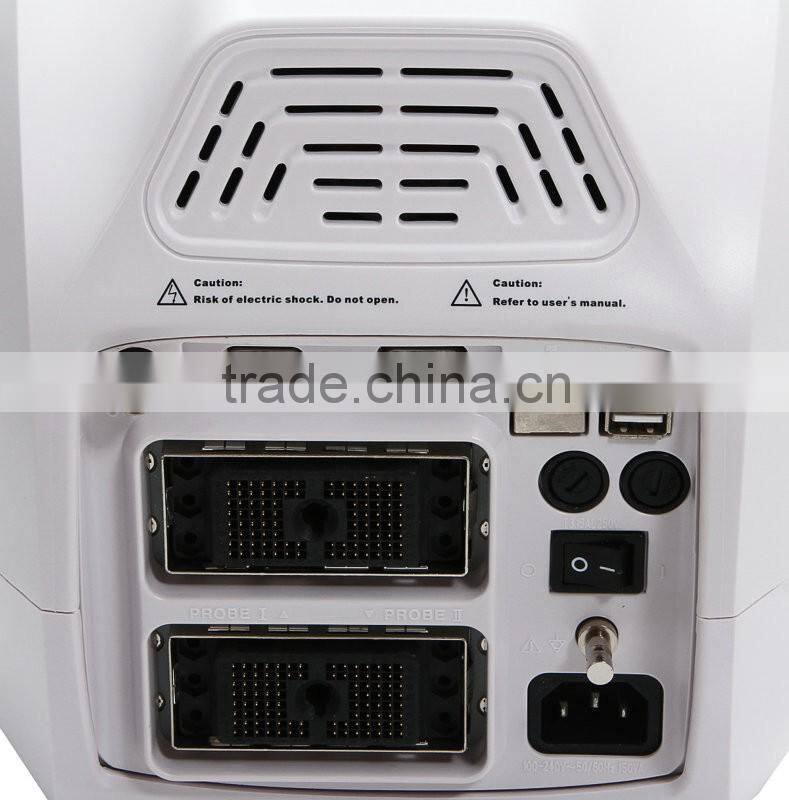

Relative extended ports:
- VGA, S-Video, TV video port
- USB2.0 port, 2G saving card
- RJ-45 network port
- Multiple kinds of saving modes are all supported, containing soft disk, hard disk, falsh disk, CF card, SD card and others.
- Compatible of jet printer, laser printer, video printer and video recorder
