Home > Health & Medicine > Medical Equipment > Medical Diagnosis Equipment > Digital 1-channel Electrocardiograph ECG Machine EKG-901-2 CE ISO Mark

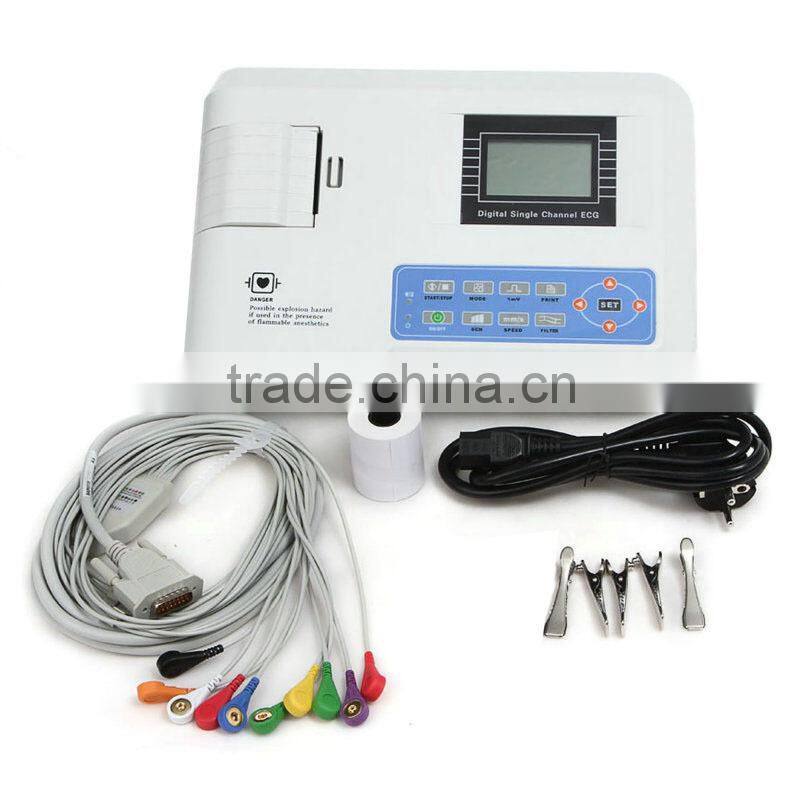

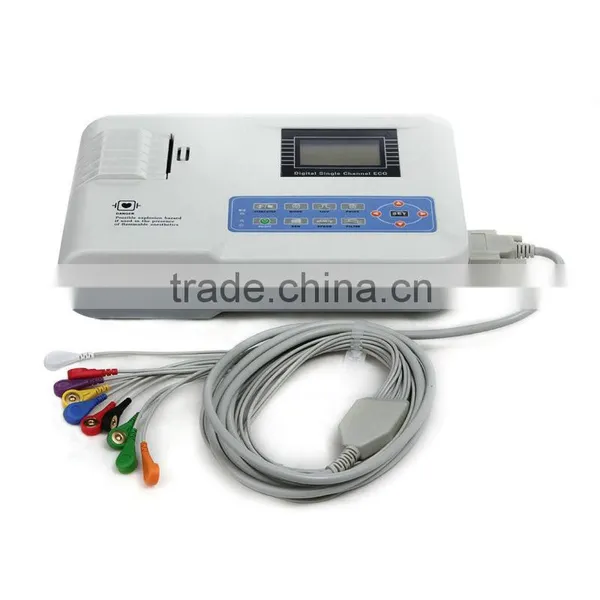

Digital 1-channel Electrocardiograph ECG Machine EKG-901-2 CE ISO Mark
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Brandnew
Place of Origin:
Beijing, China
Model Number:
EKG-901-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Single Channel Electrocardiograph ECG Machine EKG-901-2 SupplierNegotiableMOQ: 1 Set -
OEM/ODM Services Single Channel Handheld LCD Display Digital Ecg Machine PriceNegotiableMOQ: 1 Set
-
Handheld Resting 12 Leads Single Channel Electrocardiograph ECG Machine EKG Monitor With High PerformanceUS$ 220 - 360MOQ: 1 Set
-
CE FDA Approved ECG Machine/ Electrocardiograph/Single Channel EKG MachineUS$ 190 - 290MOQ: 1 Set
-
Portable 12.1 Inch Multi Parameters Patient Monitor Optional Printer With Cheap PriceUS$ 430 - 500MOQ: 1 Set
Brand Name
Brandnew
Place of Origin
Beijing, China
Model Number
EKG-901-2
ECG Machine
Features:

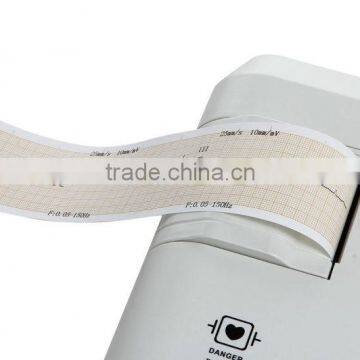

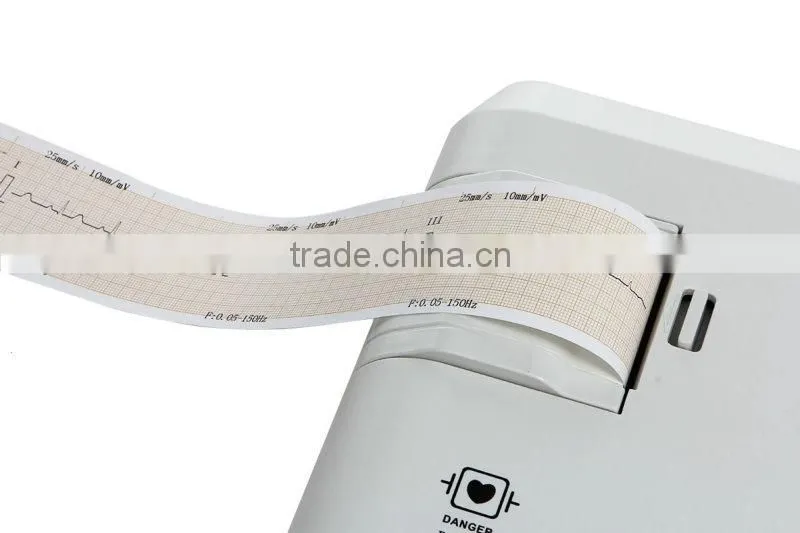

High-resolution thermal printing array system
Frequency response is as high as 150Hz
Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
High resolution digital filter inhibits baseline drift without affecting ECG waveform
One-touch operation
Concept of floating input circuit meets IEC safety standard
Rechargeable battery supporting more than 50 patient examinations
Lead Standard: 12 leads
Specifications
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 12 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
CMRR |
>80dB >100dB (with filter) |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System |
Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec ) |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply |
AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimensions | 310mm×230mm×70mm |
| Dimension of Packing | 400mm×280mm×160mm |
| Weight | 2.75kg |
