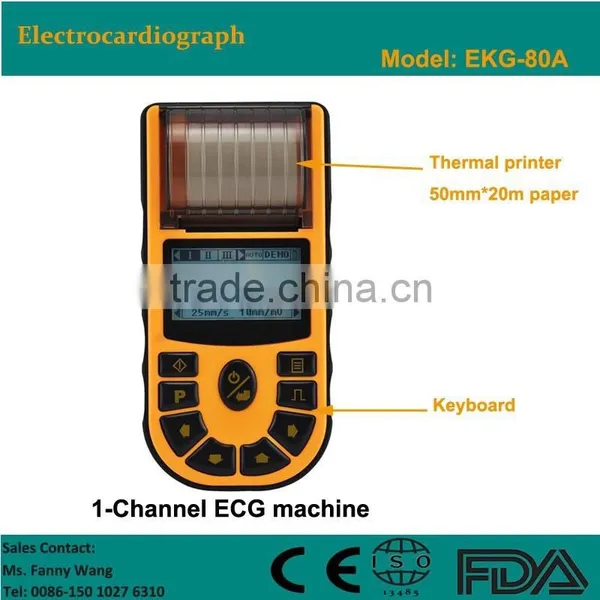

CE FDA approved ECG machine/ Electrocardiograph/Single channel EKG machine
Features:
- Hand-held single channel digital ECG machine with measurement report
- Automatic and manual operation modes
- LCD display ECG wave
- AC/DC power, built-in rechargeable Ni-MH battery
- Mini size, hand-held, portable, convenient for doctors’use anywhere
Specification:
Safety Mode |
IEC60601-1 class I, type CF |
Lead selection |
Automatic and Manual |
Operation mode |
Automatic and Manual |
Input circuit |
Floating |
Calibrating voltage |
1mV ±5% |
Input current |
<100nA |
CMRR |
>103dB |
A/D |
12bit |
Frequency response |
0.05Hz-150Hz |
Filter |
AC: 50/60Hz EMG: 35-4Hz |
Skin voltage tolerance |
±300mV |
Sensitivity setting |
5, 10, 20mm/mV, conversion deviation≤5% |
Noisy level |
≤15Vp-p |
Display |
LCD 160x96, visual size: 34x60 |
Recording system |
Thermal-array printing |
Noise level |
≤15μVp-p |
Power supply |
AC: 220V+-10% DC: 7.4 Lithium battery |
Size |
190x90x40mm |
Weight |
800g |
Click the link for more styles:
https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
