Portable Digital 6-channel Software Electrocardiograph Color Touch Screen ECG Machine EKG Machine EKG-923
Features:
12-lead simultaneous standard resting ECG

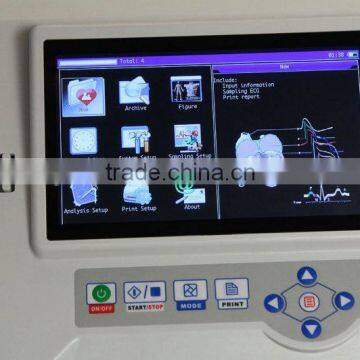

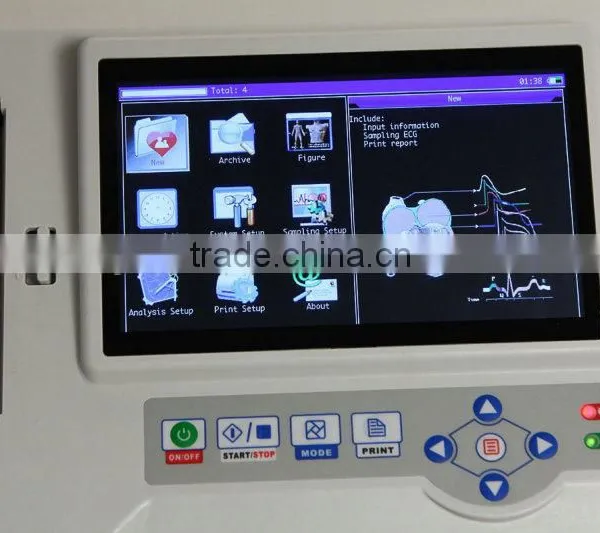

7-inch TFT, touch screen, led backlight
Digital isolation technology and signal processing solution, digital filter
Patient management, name and age and id.
Detail analysis report.
Multi-language options: Germany, France, Italian, Turkey, etc
Built-in lithium rechargeable battery, wide thermal printing system

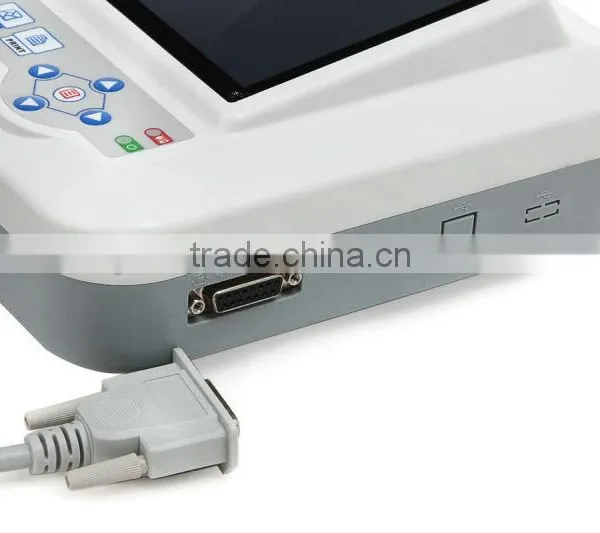

USB and LAN socket
Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
Auto-measurement, auto-analysis, and auto-interpretation
Specification:
Safety standard |
IEC class I, type CF |
Lead |
Standard 12 leads |
Patient leak current |
<10uA |
Input impedance |
>=50M |
Frequency response |
0.05~150Hz(-3dB) |
Time constant |
>3.2s |
CMRR |
>100dB |
Dimension of recording paper |
80mmx20m |
Paper speed |
25mm/s, 50mm/s |
Sensitivity choice |
5, 10, 20mm/mV |
Measurement parameters |
HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
|
Product safety type |
Class I, CF. Defibrillation and pacing protection |
Enduring polarization voltage |
300mv
|
Noise level |
<15uVp-p |
Dimension |
130mm x 74mm x 25mm (WxLxH) |
Net weight |
2.5kg |
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
