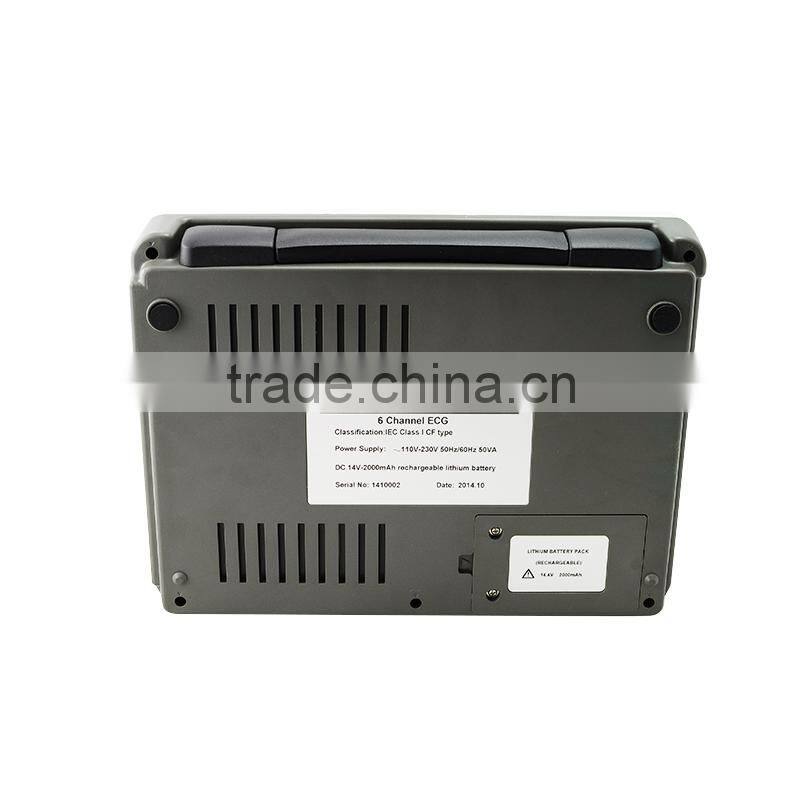

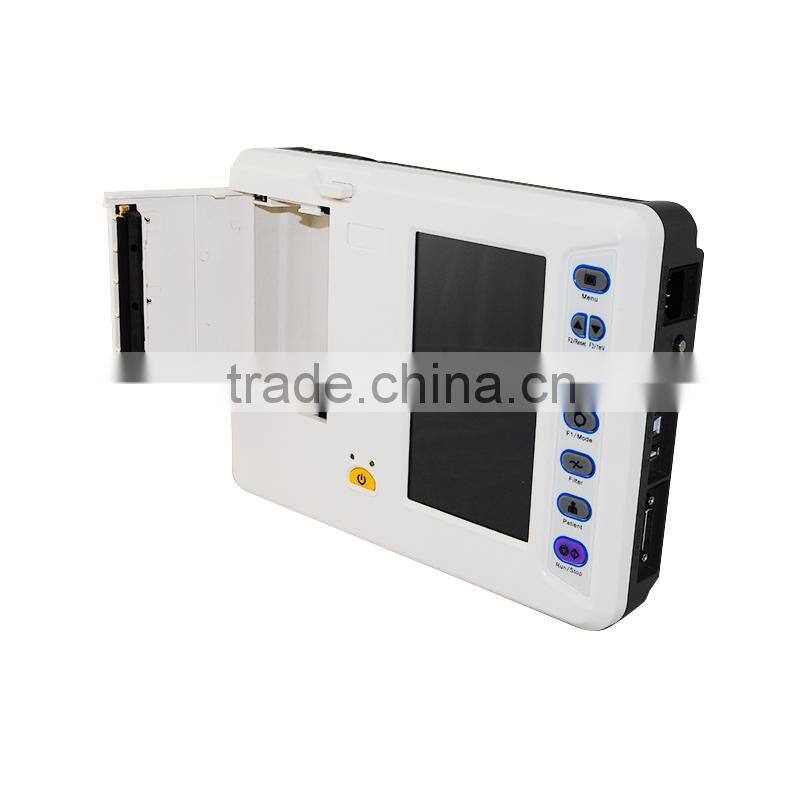

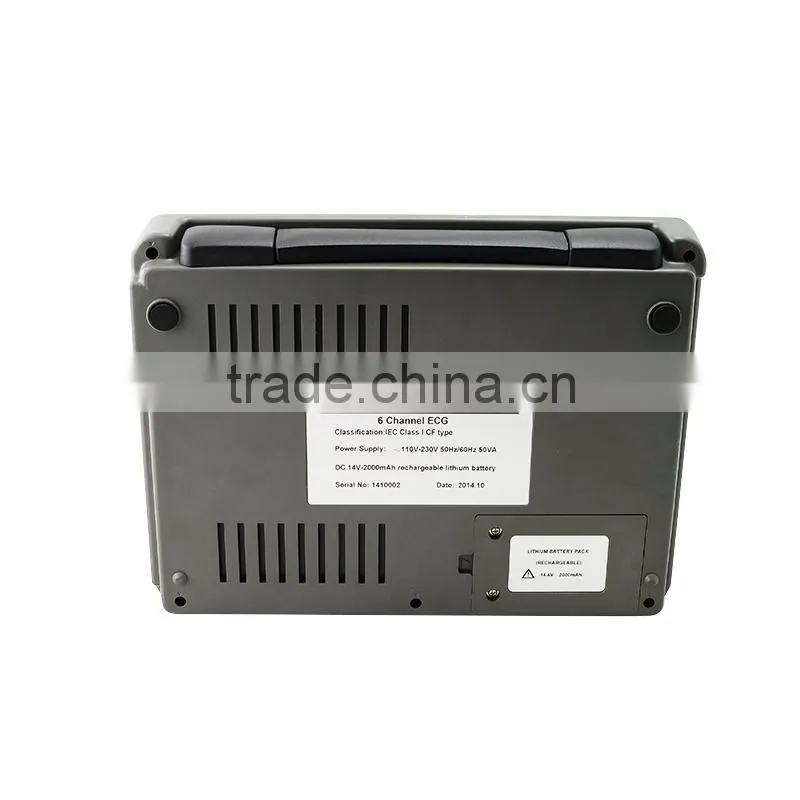

High End Model 7 Inch 6 Channel Handheld 12-lead ECG Signal Resting Electrocardiograph ECG Machine EKG-1206A SUPPLIER
US$ 550 - 750
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Brandnew
Place of Origin:
Beijing, China
Model Number:
EKG-1206A
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Carejoy CE Certified Resting 12-lead Signal 7 Inch 6 Channel Digital Electrocardiograph ECG Machine EKG-1206A New ModelUS$ 550 - 750MOQ: 1 Set -
CE Approved 7 Inch Color ECG Machine/ Electrocardiograph/six Channel EKG MachineNegotiableMOQ: 1 Set
-
Digital 3-Channel ECG EKG Electrocardiograph With Free SoftwareUS$ 100 - 559MOQ: 1 Set
-
Recommend 12 Lead 3 Channel ECG Machine With PC Sync Software Electrocardiograph EKG-903BSUS$ 350 - 600MOQ: 1 Set
-
CE&ISO Best Price Color Screen Medical Equipment 3 Channel Electrocardiograph ECG Machine With Software EKG Machine-903BS-ShellyUS$ 100 - 500MOQ: 1 Unit
Brand Name
Brandnew
Place of Origin
Beijing, China
Model Number
EKG-1206A
Product Description
Electrocardiograph
Features:
- Six channel digital ECG machine with interpretation
- Simultaneous acquisition of 12-lead ECG signal
- Manual/Auto/Arrhythmia analysis modes

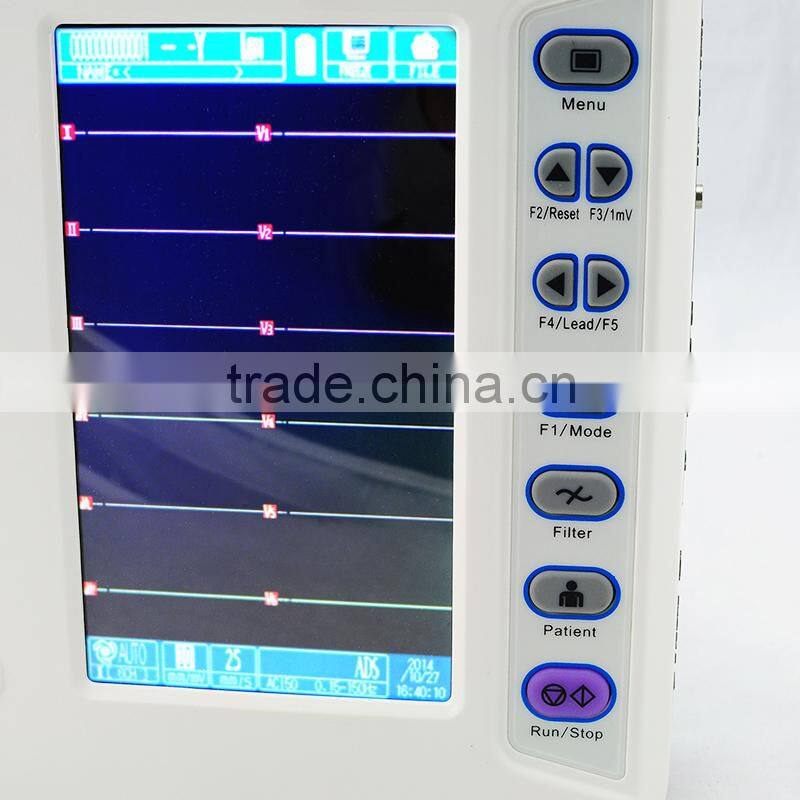

- Real time ECG, 20 patients cases
- Multiple printing modes
- 112mm 3/6-ch format recording

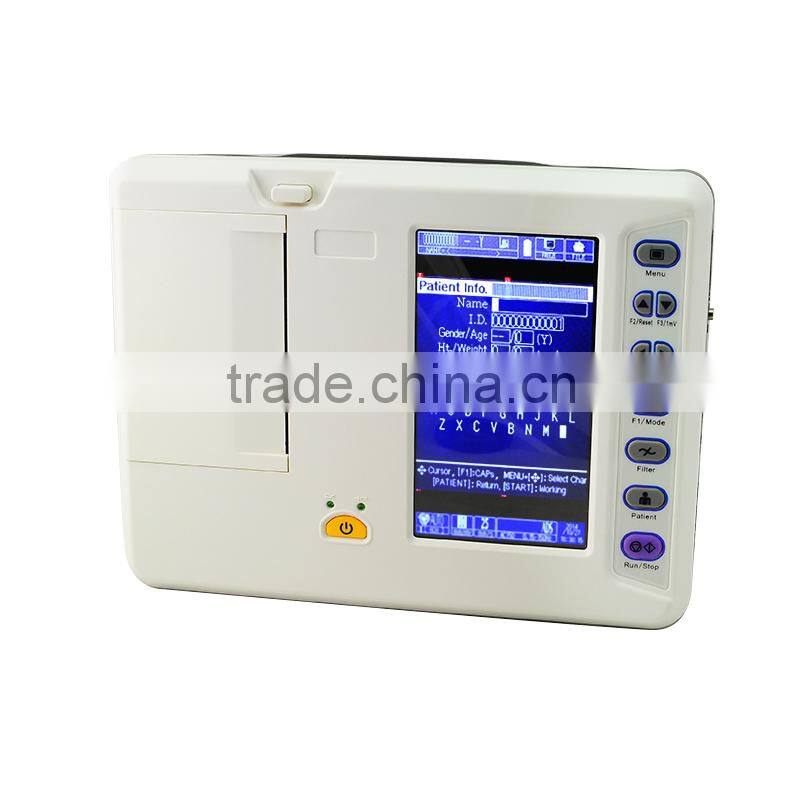

- 320x240 graphic, 7 inch Color LCD
- High resolution thermal printing system
- High resolution digital filter

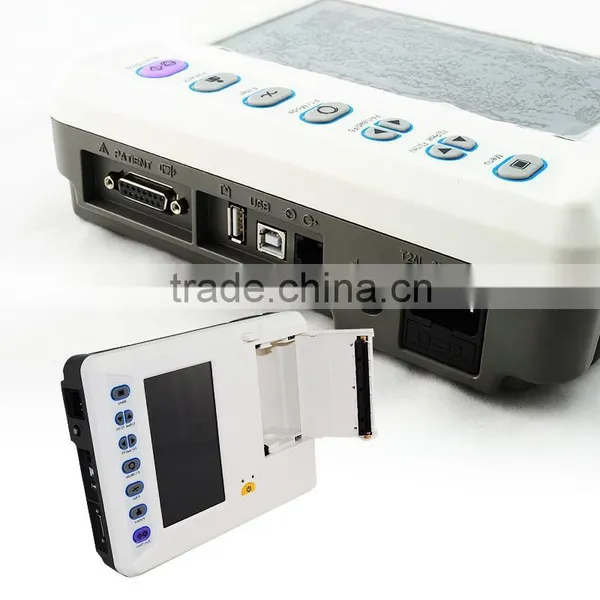

- Built-in USB or RS232, optional PC-ECG software
- AC/DC power, built-in rechargeable Ni-MH battery
- Light weight with handle, convenient for use
Specification:
Safety standard |
IEC60601-1 class I, type CF |
Lead |
Standard 12 Leads, Lead change automatically |
Resolution |
12 bit / 1000Hz |
Operation mode |
Manual/Auto/Analysis modes |
Filter |
AC, EMG filter |
Drift filter |
Anti-drift system |
Input circuit |
Floating; Protection against Defibrillator effect |
CMRR |
>100dB (with filter) |
Input circuit current |
<0.1μA |
Input impedance |
≥50ΜΩ |
Calibrating voltage |
1mV±3% |
Frequency response |
0.05Hz~160Hz (IEC) |
Time constant |
>3.2seconds |
Noise level |
≤15Vp-p |
Threshold |
≤20μV |
Sensitivity |
Auto 2.5, 5, 10, 20, 40mm/mV |
Recording system |
High resolution thermal printer |
Paper speed |
25, 50mm/s±3% |
Recording paper |
112mmx20m, roll/fold paper |
Power supply |
AC: 110v-220V, 50/60Hz DC: 14.4V rechargeable NI-Ion battery (2200mAh) |
LCD display |
320x240 graphic, 7 inch LCD |
Dimensions |
285×265×72mm |
Weight |
3.5kg |
