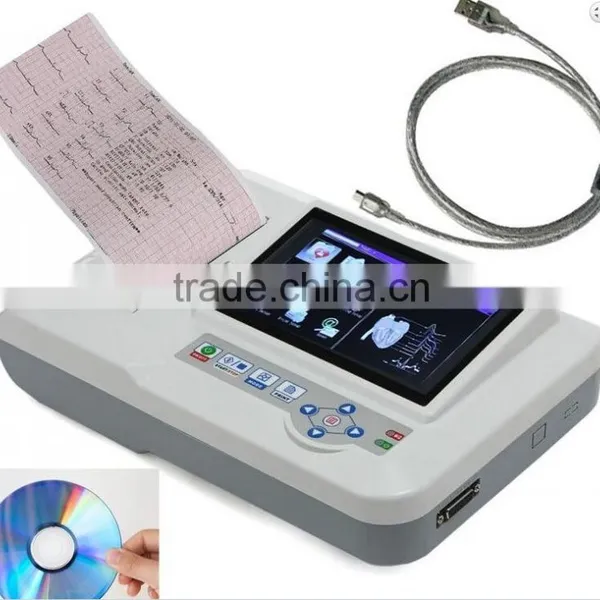

Touch Screen 6 Channel Digital Electrocardiograph ECG Machine With Software EKG-923S with CE certified

Electrocardiograph

EKG-923S is an electrocardiograph collecting 12-lead ECG signal simultaneously and printing ECG waveform with thermal printing system, which features in, recording and displaying ECG waveform with manual or auto mode, measuring and diagnosing ECG waveform parameters automatically, prompting for "Lead off" and "Lack of paper", multi-language interface, case database management.

-  7" TFT LCD Touch Screen

-  With PC ECG software

-  Operation mode: touch screen and function keys, simple and convenient to operate.

-  Compact and delicate design.

-  Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.

-  Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).

-  Full-digital design, anti-baseline drift, AC and EMG interference.

-  Adjust the baseline automatically, optimize the print setting and choose the rhythm leads.

-  In AUTO mode, finish all operation by pressing the button once, which improves work efficiency.

-  Adopt digital signal processing technology to get high-quality ECG waveforms via AC filter, baseline filter and EMG filter of ECG signal.

-  Auto-measurement, auto-analysis and auto-diagnosis for routine ECG parameters, reduces the doctor's burden and improve work efficiency.

-  Multiply printing formats, including 2*6+1(rhythm lead), 2*6, 3*4, 3*4+1(rhythm lead), 4*3, 4*3+1(rhythm lead), 6*2, 6*2+1(rhythm lead), rhythm 2, rhythm 3, rhythm 4, rhythm 5, rhythm 6, rhythm 7, channel record, etc.

-  Display of 3/6/12-lead ECG, "Lead off" and "Lack of paper" on one screen, and with ECG DEMO mode. Auto-check and auto-analysis for ECG parameters, ECG waveform can be recorded manually or automatically. And patient information can be stored by case database.

-  Timing print can be set to every 1/2/3/5/10/20/30/60 minutes.

-  Optional print setting, including "Print and save"(print waveform and save case), "Print no save"(only print waveform but not save case), "Save no print"(only save case but not print waveform).

-  Store up to 1000 cases, convenient for case review and statistic.

-  Multi-language(Chinese, English, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakstan and Russian) interface and report.

-  AC/DC, and in optimal DC state, built-in rechargeable lithium battery can continuously work for 8h, print for more than 2h and 190-ECG, which meets the requirements of visiting a patient at home and body examination.

-  Built-in auto-protection circuit, and automatic power off when there is no operation in appointed time.

General Specs
