Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked

Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked thumbnail-1
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked thumbnail-2
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked thumbnail-3
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked thumbnail-4
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked thumbnail-5
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked thumbnail-6
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked photo-1
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked photo-2
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked photo-3
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked photo-4
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked photo-5
Hospital and Clinic Used Standard 12 Leads Portable Ecg Machine With CE,FDA Marked photo-6
US$ 500 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other
Brand Name:
Brandnew
Model Number:
EKG-1212F
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other
Brand Name Brandnew
Model Number EKG-1212F
Place of Origin Beijing, China

 Hospital and clinic used Standard 12 leads portable ecg machine with CE,FDA marked

 Hospital and clinic used Standard 12 leads portable ecg machine with CE,FDA marked

Product Description

 Details

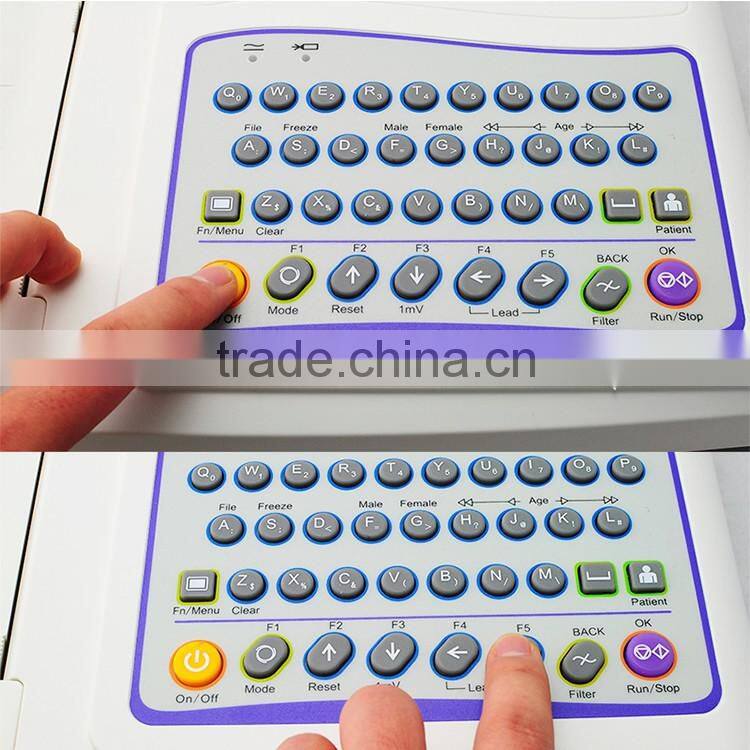

-       Alphanumeric keyboard to operate, very convenient to use

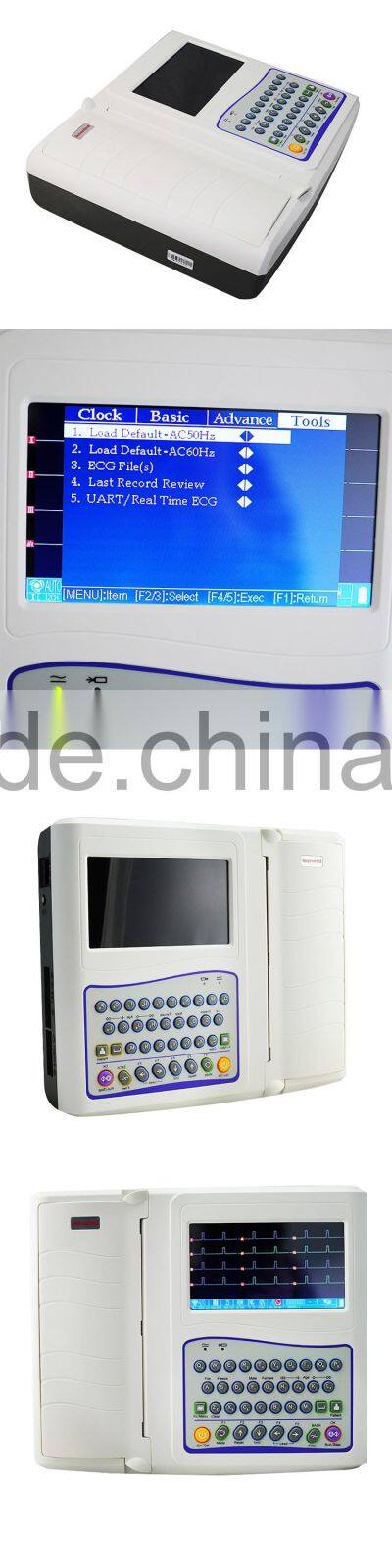

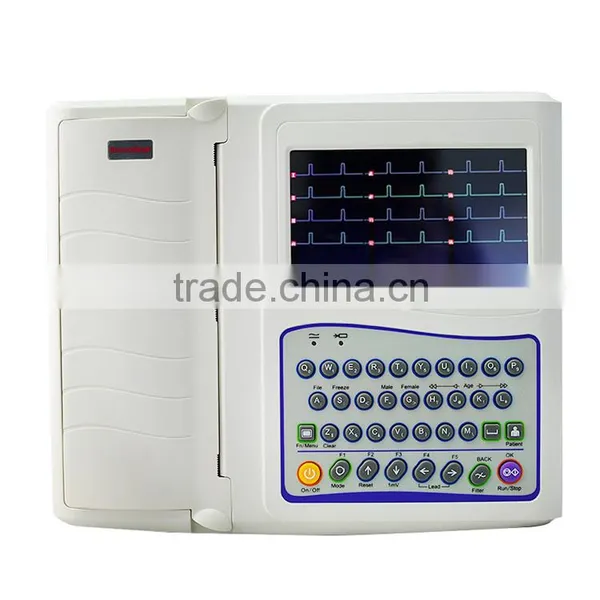

-       800x480 graphic 7 inch color LCD to simultaneously display ECG information

-       Portable and delicate design, easy to operate

-       Accurate pulse pace identification function

-       High accuracy digital filter, automatic baseline adjustment

-       Working modes: Manual, Automatic, Arrythmia Analysis, Storage

-       215mm, 12 channel format recording, excellent automatic interpretation

-       250 patient cases storage ( SD card storage is optional )

-       Detailed patient information record

-       Adapt to 110-230V,50/60Hz power supply.

-       Built-in rechargeable Li-ion battery continuously working for about 4 hours

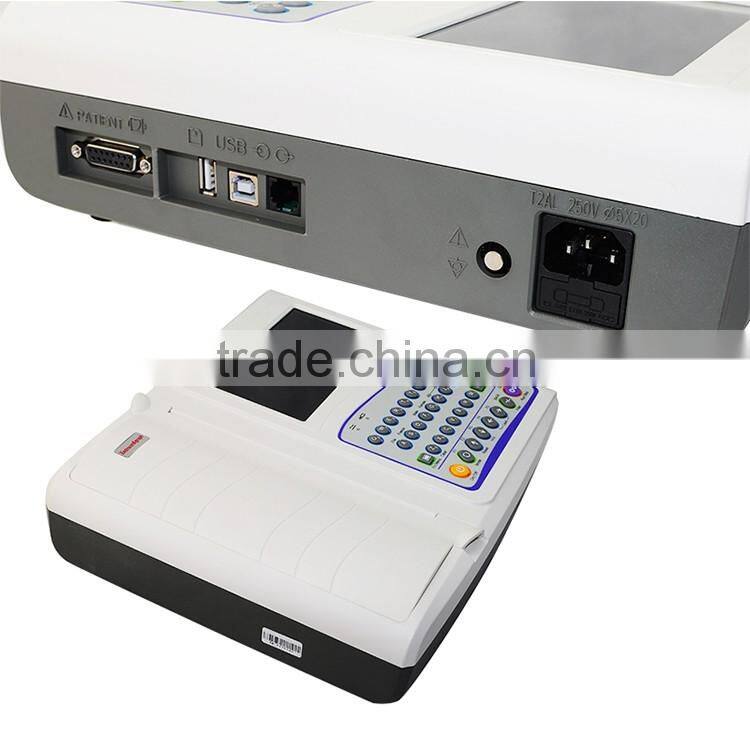

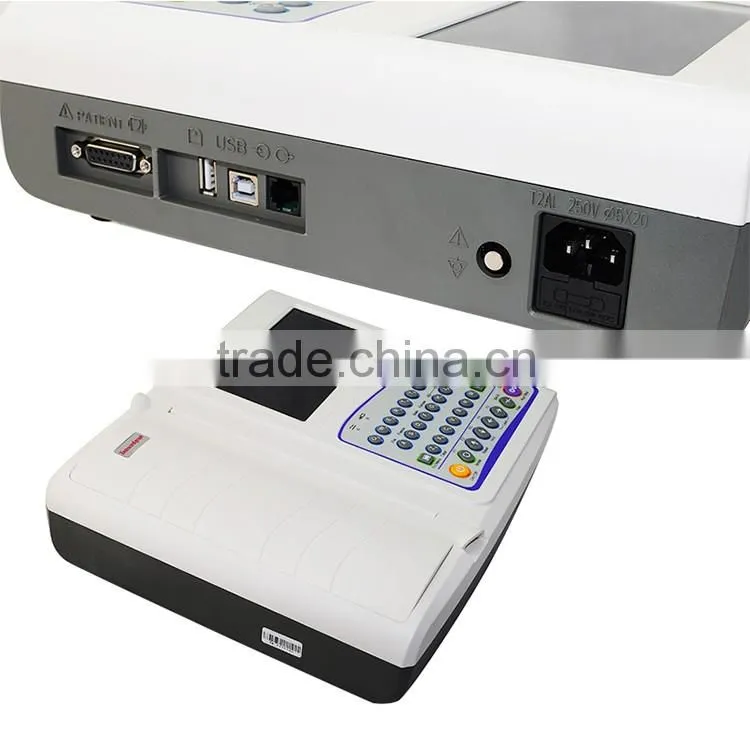

-       USB / Rs232 communication port support USB storage, laser printer printing and PC ECG software ( Optional )

General Specs

Lead

Standard 12 leads

Lead acquisition

12 bit/1000Hz(synchronously 12 leads)

Work mode

Manual/Auto/R-R Analysis

Filter

AC Filter: 50Hz/60Hz

EMG Filter: 25Hz/45Hz

Anti-Drift Filter:0.15 Hz (Adaptive)

CMMR

≥120dB (with AC Filter)

Input circuit

Floating; Protection circuit against

Defibrillator effect

Input impedance

≥50ΜΩ

Input circuit current

≤0.05 μA

Patient current leakage

<10 μA

Calibrating voltage

1mV±2%

Voltage tolerance

≥±500mV

Time constant

≥3.2s

Frequency response

0.05~160Hz(-3db)

Noise level

<15μVp-p

Inter-channel interference

≤0.5mm

Sensitivity

Auto,2.5,5,10,20,40mm/mV(±3%)

Recording mode

3ch+++, 6ch, 6ch+, 12ch

Default Man.Mode is 3ch+++  format

Default Auto.Mode is 12ch format

Paper speed

6.25,12.5,25,50mm/s(±3%)

Paper

215mm x 20m roll / 210x140mm Z-fold paper

Working environment

Temperature5-40℃;Humidity 25-95%

Power supply

AC 110-230v(±10%), 50/60Hz(±1Hz), 40VA

DC Built-in rechargeable battery,14.4V (4400mAh)

Dimension/Weight

347mm x 293mm x 83mm, 4.8kgs

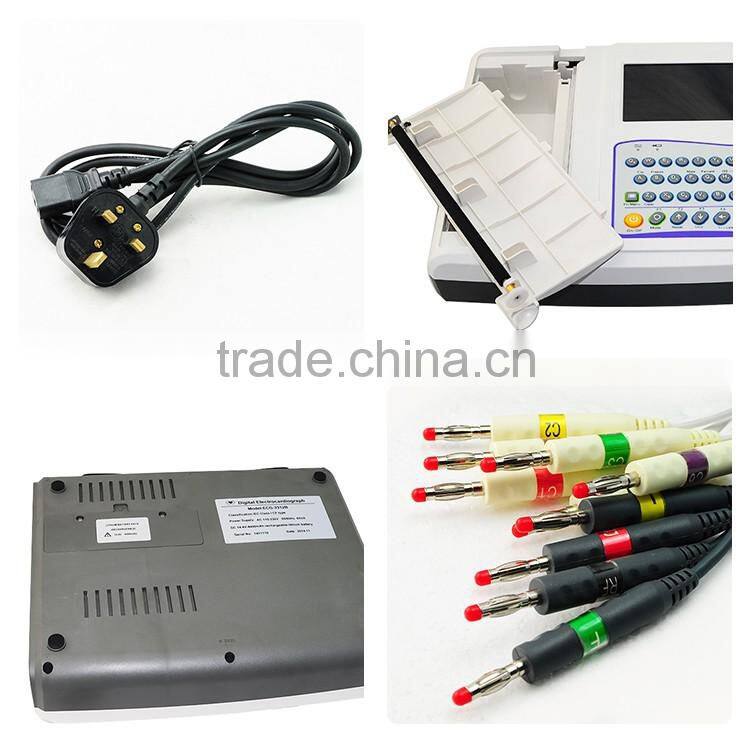

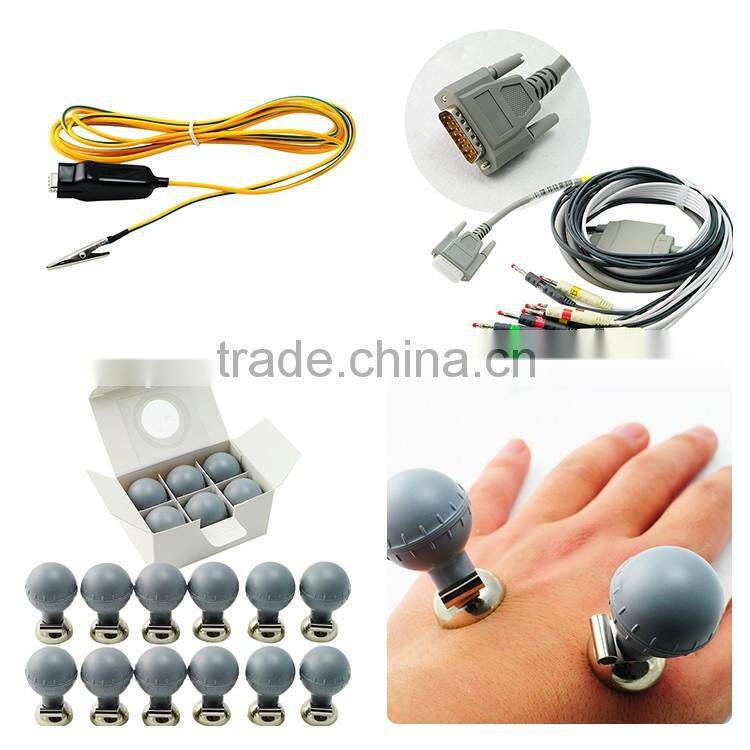

Packing List:

Electrocardiograph: 1each

Banana type ECG cable: 1each

Chest electrodes: 6each

Limb electrodes: 4each

Power cable: 1each

Grounding cable: 1each

Fuse: 2each

Paper roll: 1each

Manual: 1each



Hospital and clinic used Standard 12 leads portable ecg machine with CE,FDA markedHospital and clinic used Standard 12 leads portable ecg machine with CE,FDA markedHospital and clinic used Standard 12 leads portable ecg machine with CE,FDA markedHospital and clinic used Standard 12 leads portable ecg machine with CE,FDA markedHospital and clinic used Standard 12 leads portable ecg machine with CE,FDA marked



Click the link for more styles:

https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html



Hot Sale

Hospital and clinic used Standard 12 leads portable ecg machine with CE,FDA marked

Contact Information

 Hospital and clinic used Standard 12 leads portable ecg machine with CE,FDA marked

Company Information

Hospital and clinic used Standard 12 leads portable ecg machine with CE,FDA marked

Hospital and clinic used Standard 12 leads portable ecg machine with CE,FDA marked

Our Services

1. 18 months warranty for the mainframe from date of shipment under normal use and service.

2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.

3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.



4. OEM/ODM services are available.
