Home > Health & Medicine > Medical Equipment > Medical Diagnosis Equipment > Digital 1-channel 12 Lead Electrocardiograph Portable Ecg Machine EKG-901

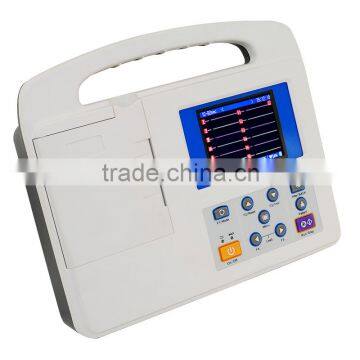

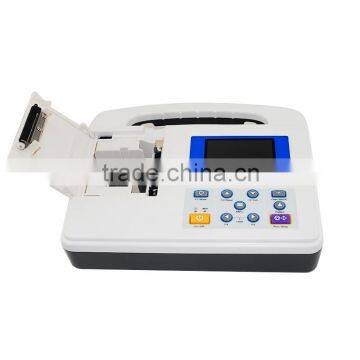

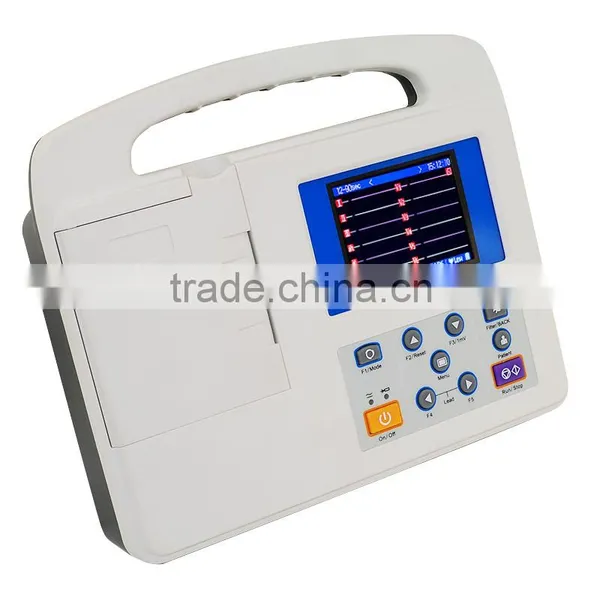

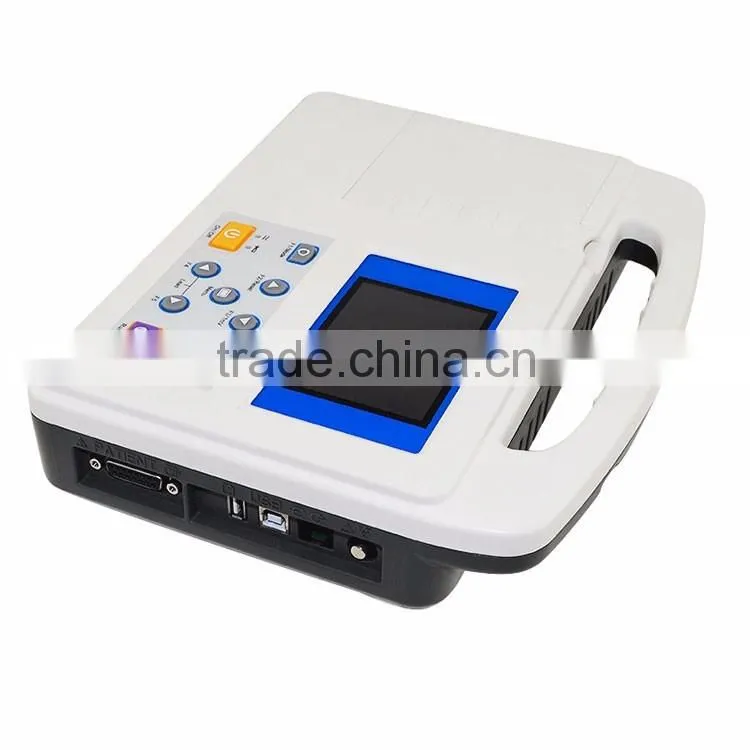

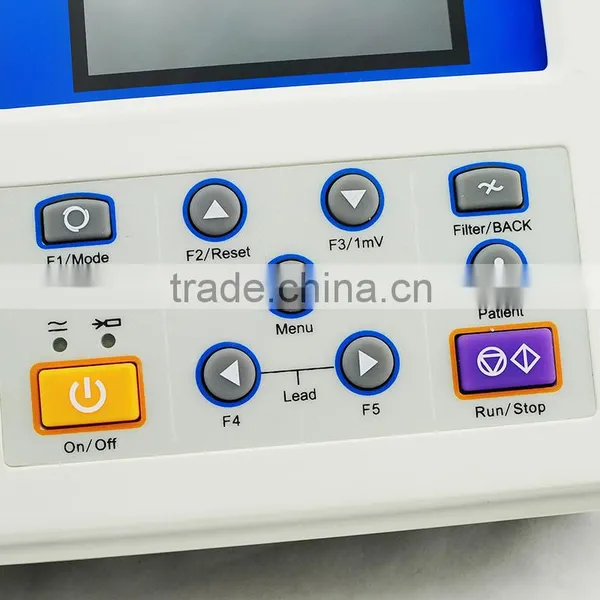

Digital 1-channel 12 Lead Electrocardiograph Portable Ecg Machine EKG-901
US$ 100 - 389
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Blood Testing Equipments
Brand Name:
OEM
Place of Origin:
Beijing, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3-channel 12 Lead Color Screen EKG Electrocardiograph Portabel Ecg MachineUS$ 250 - 350MOQ: 1 Set -
12 Lead 3 Channel EKG Monitor Electrocardiograph Electrocardiogram Portable Ecg MachineUS$ 250 - 350MOQ: 1 Set
-
CE&ISO One Channel Veterinary/VET Handheld Electrocardiograph ECG Machine EKG Machine Price EKG-80V-ShellyUS$ 100 - 500MOQ: 1 Set
-
Cheap Price of CE&ISO One Channel Veterinary/VET Portable Electrocardiograph ECG Machine EKG Machine Price EKG-80V-ShellyUS$ 100 - 500MOQ: 1 Set
-
CE&ISO Certification Single Channel Handheld Human Use Electrocardiograph ECG Machine EKG Machine Price With Software-ShellyUS$ 100 - 500MOQ: 1 Set
Type
Blood Testing Equipments
Brand Name
OEM
Place of Origin
Beijing, China
Model Number
EKG-901
Product Description
Features:
- One channel digital ECG machine with interpretation.
- Simultaneous acquisition of 12-lead ECG signal.
- Manual/Auto/Arrhythmia analysis modes.
- Real time ECG, 20 patients cases.
- Multiple printing modes.
- 320x240 graphic, 3.8 inch LCD.
- High resolution thermal printing system.
- High resolution digital filter.

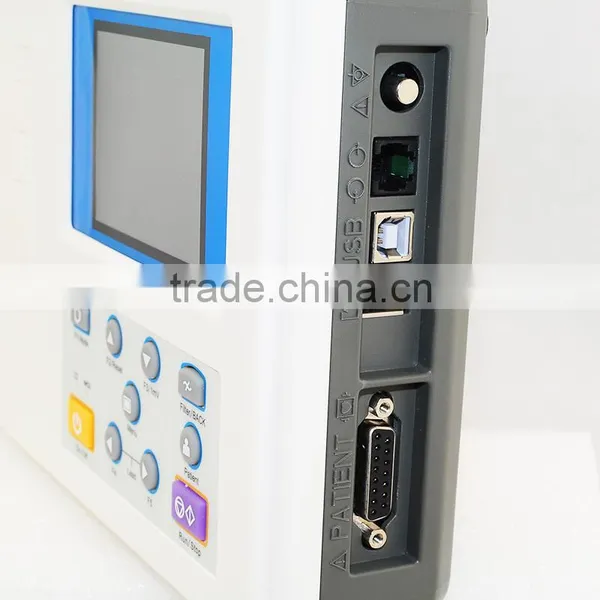

- Built-in USB or RS232, optional PC-ECG software.
- AC/DC power, built-in rechargeable Ni-MH battery.
- Light weight with handle, convenient for use.
Specification:
| Model number | EKG-901 |
| Safety standard | IEC60601-1 class I, type CF |
| Lead | Standard 12 Leads, Lead change automatically |
| Resolution | 12 bit / 1000Hz |
| Operation mode | Manual/Auto/Analysis modes |
| Filter | AC, EMG filter |
| Drift filter | Anti-drift system |
| Input circuit | Floating; Protection against Defibrillator effect |
| CMRR | >100dB (with filter) |
| Input circuit current | <0.1μA |
| Input impedance | ≥50ΜΩ |
| Calibrating voltage | 1mV±3% |
| Frequency response | 0.05Hz~160Hz (IEC) |
| Time constant | >3.2seconds |
| Noise level | ≤15Vp-p |
| Threshold | ≤20μV |
| Sensitivity | Auto 2.5, 5, 10, 20, 40mm/mV |
| Recording system | High resolution thermal printer |
| Paper speed | 25, 50mm/s±3% |
| Recording paper | 50mmx20m, roll/fold paper |
| Power supply | AC: 220V / 110V, 50/60Hz |
| DC: 14.4V rechargeable NI-Ion battery (1500mAh) | |
| LCD display | 320x240 graphic, 3.8 inch LCD |
| Dimensions | 285×265×72mm |
| Weight | 2.5kg |
Hot Sale
Click the picture for detalied information:
Contact information
CE Certification
Company Information
Our Services
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
Packaging & Shipping
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Trading Company
Year Established
2014
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
