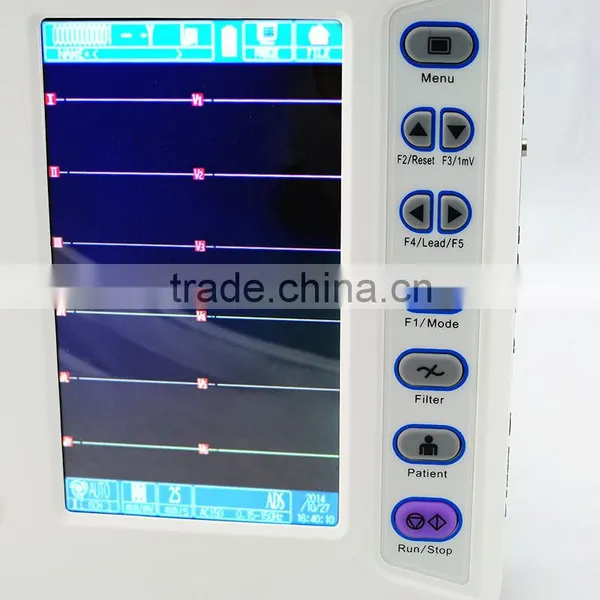

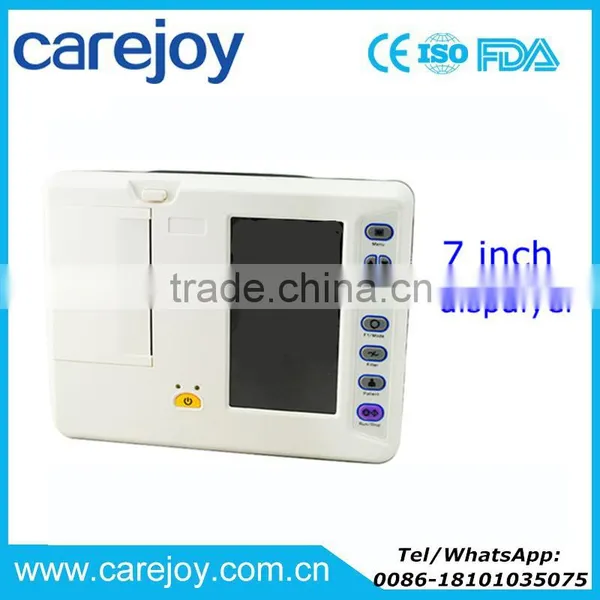

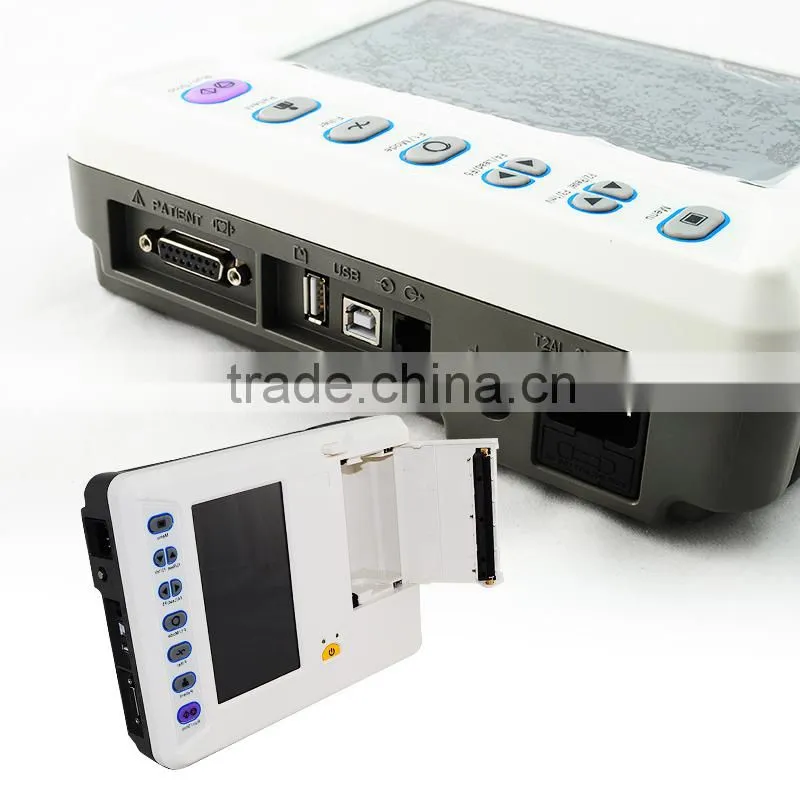

CE Approved 7 Inch 6 Channel ECG EKG Machine Electrocardiograph 110 V - 240V
US$ 530 - 800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Visual Acuity Examination Apparatus
Brand Name:
Carejoy
Place of Origin:
Beijing, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Carejoy CE ISO PC Analysis Software Resting 12 Lead Touch Screen 6 Channel Digital Electrocardiograph ECG MachineUS$ 80 - 760MOQ: 1 Set -
12-lead ECG Signal 7 Inch 6 Channel Digital Resting Electrocardiograph ECG Machine EKG-1206AUS$ 550 - 750MOQ: 1 Set
-
7 Inch LCD Touch Screen 12 Lead Resting 6 Channel Electrocardiograph ECG Machine EKG-923S PC Analysis SoftwareUS$ 480 - 600MOQ: 1 Set
-
6 Channel Good Quality Touch Screen 12 Lead Resting Electrocardiograph ECG Machine EKG 923 Multi LanguageUS$ 460 - 560MOQ: 1 Set
-
7 Inch Touch Screen 12 Lead Resting 6 Channel Electrocardiograph ECG Machine EKG Monitor With PC Sync Software Multi-languageUS$ 460 - 550MOQ: 1 Set
Type
Visual Acuity Examination Apparatus
Brand Name
Carejoy
Place of Origin
Beijing, China
Model Number
EKG-1206A
Product Description
Electrocardiograph
Features:
- Six channel digital ECG machine with interpretation
- Simultaneous acquisition of 12-lead ECG signal
- Manual/Auto/Arrhythmia analysis modes
- Real time ECG, 20 patients cases
- Multiple printing modes
- 112mm 3/6-ch format recording
- 320x240 graphic, 7 inch Color LCD
- High resolution thermal printing system
- High resolution digital filter
- Built-in USB or RS232, optional PC-ECG software
- AC/DC power, built-in rechargeable Ni-MH battery
- Light weight with handle, convenient for use
Specification:
Safety standard |
IEC60601-1 class I, type CF |
Lead |
Standard 12 Leads, Lead change automatically |
Resolution |
12 bit / 1000Hz |
Operation mode |
Manual/Auto/Analysis modes |
Filter |
AC, EMG filter |
Drift filter |
Anti-drift system |
Input circuit |
Floating; Protection against Defibrillator effect |
CMRR |
>100dB (with filter) |
Input circuit current |
<0.1μA |
Input impedance |
≥50ΜΩ |
Calibrating voltage |
1mV±3% |
Frequency response |
0.05Hz~160Hz (IEC) |
Time constant |
>3.2seconds |
Noise level |
≤15Vp-p |
Threshold |
≤20μV |
Sensitivity |
Auto 2.5, 5, 10, 20, 40mm/mV |
Recording system |
High resolution thermal printer |
Paper speed |
25, 50mm/s±3% |
Recording paper |
112mmx20m, roll/fold paper |
Power supply |
AC: 110v-220V, 50/60Hz DC: 14.4V rechargeable NI-Ion battery (2200mAh) |
LCD display |
320x240 graphic, 7 inch LCD |
Dimensions |
285×265×72mm |
Weight |
3.5kg |
