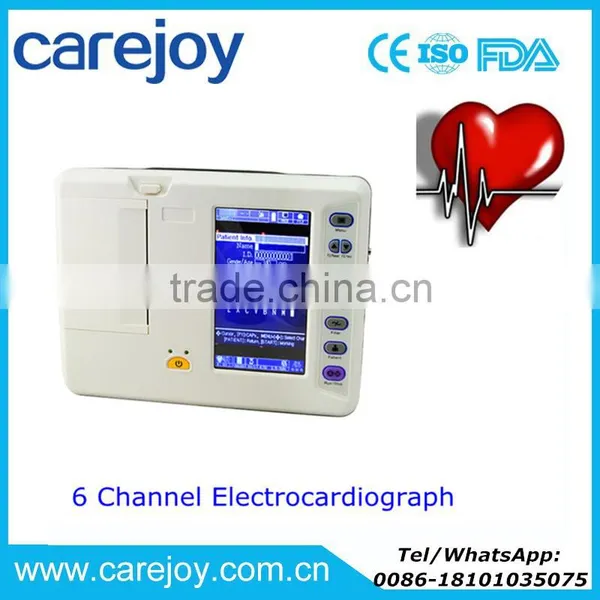

12-lead ECG signal 7 inch 6 Channel Digital Resting Electrocardiograph ECG Machine EKG-1206A

Name: 12-lead ECG signal 7 inch 6 Channel Digital Resting Electrocardiograph ECG Machine EKG-1206A
Brand: Carejoy
Price: USD $550 - 750 / Set

FOB Price

USD $550 - $750 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Beijing
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Carejoy

Place of Origin:

Beijing, China

Model Number:

EKG-1206A

Product Description

Electrocardiograph

Features:

Six channel digital ECG machine with interpretation
Simultaneous acquisition of 12-lead ECG signal
Manual/Auto/Arrhythmia analysis modes
Real time ECG, 20 patients cases
Multiple printing modes
112mm 3/6-ch format recording
320x240 graphic, 7 inch Color LCD
High resolution thermal printing system
High resolution digital filter
Built-in USB or RS232, optional PC-ECG software
AC/DC power, built-in rechargeable Ni-MH battery
Light weight with handle, convenient for use

Specification:

Safety standard	IEC60601-1 class I, type CF
Lead	Standard 12 Leads, Lead change automatically
Resolution	12 bit / 1000Hz
Operation mode	Manual/Auto/Analysis modes
Filter	AC, EMG filter
Drift filter	Anti-drift system
Input circuit	Floating; Protection against Defibrillator effect
CMRR	>100dB (with filter)
Input circuit current	<0.1μA
Input impedance	≥50ΜΩ
Calibrating voltage	1mV±3%
Frequency response	0.05Hz~160Hz (IEC)
Time constant	>3.2seconds
Noise level	≤15Vp-p
Threshold	≤20μV
Sensitivity	Auto 2.5, 5, 10, 20, 40mm/mV
Recording system	High resolution thermal printer
Paper speed	25, 50mm/s±3%
Recording paper	112mmx20m, roll/fold paper
Power supply	AC: 110v-220V, 50/60Hz DC: 14.4V rechargeable NI-Ion battery (2200mAh)
LCD display	320x240 graphic, 7 inch LCD
Dimensions	285×265×72mm
Weight	3.5kg
