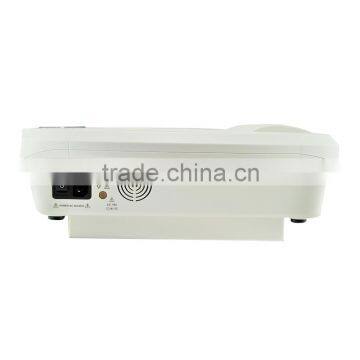

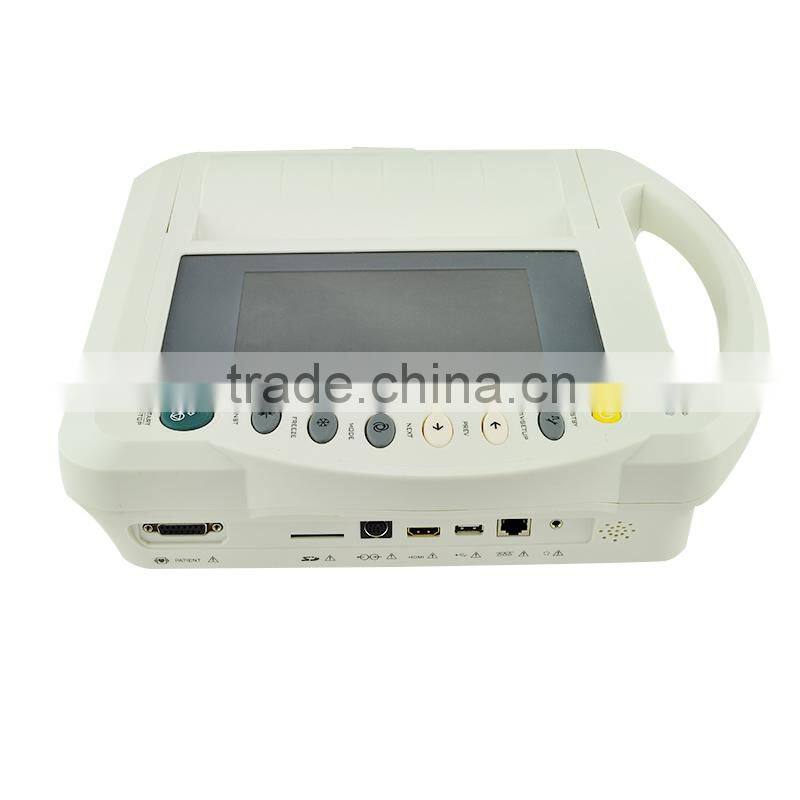

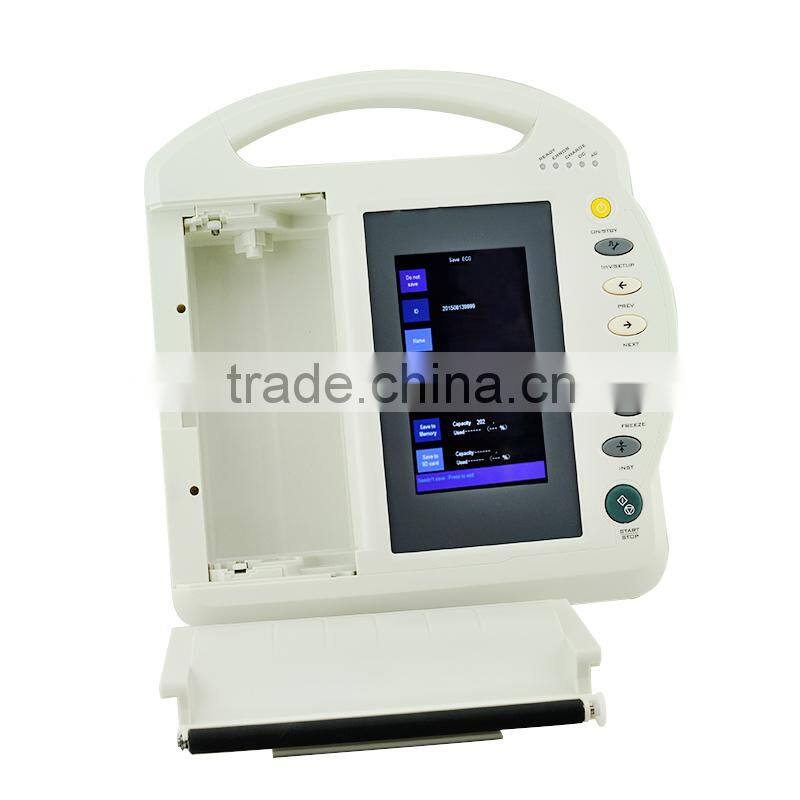

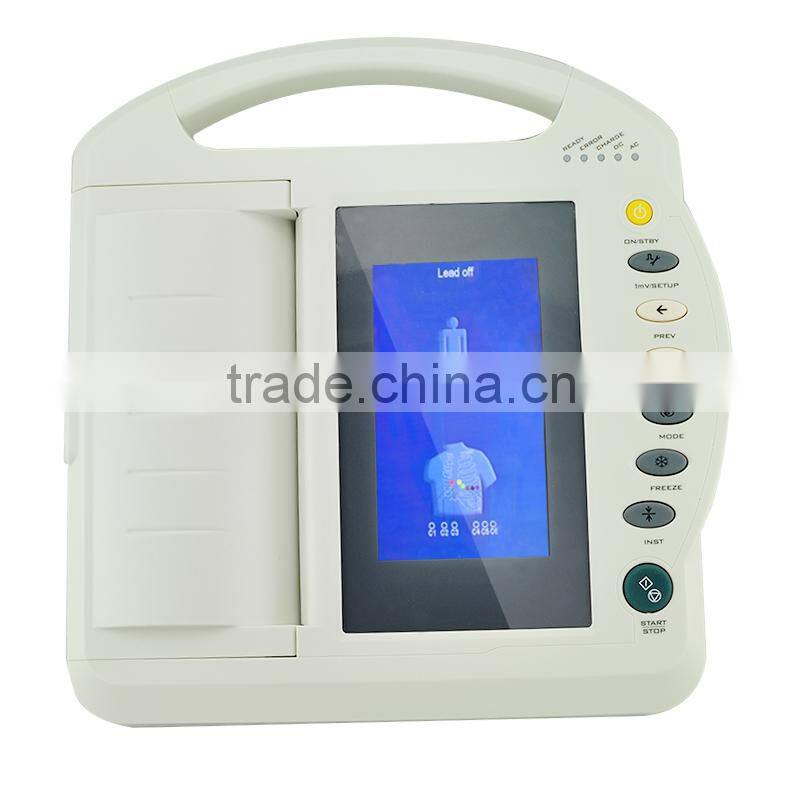

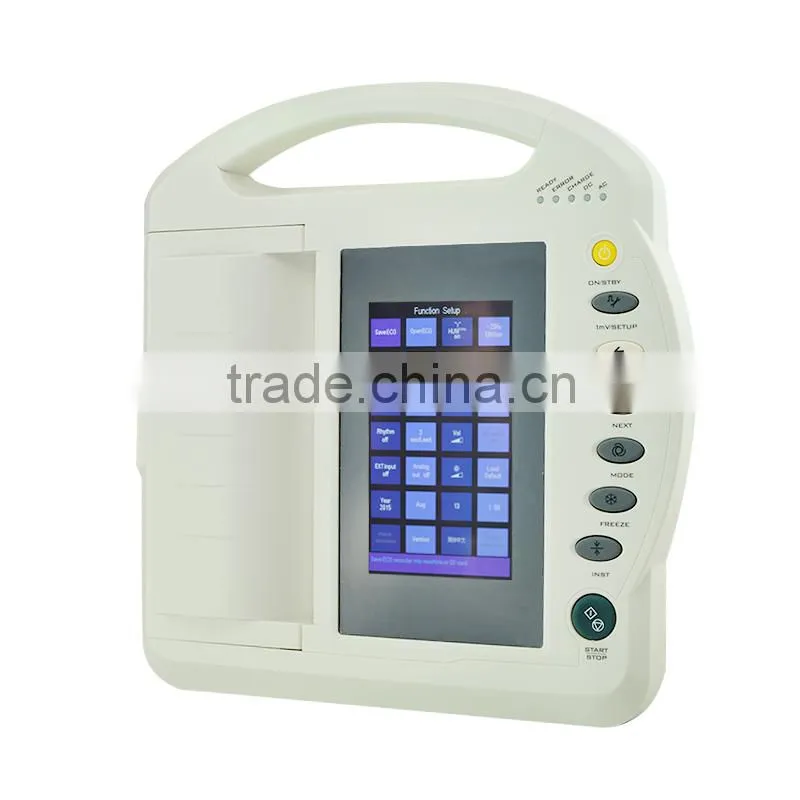

Help CenterPopular 7 Inch Color Screen 12 Lead 12 Channel Electrocardiograph ECG / EKG Machine With CE
Related Products
-
18 Months Warranty ECG Simulator for ECG EKG Holter by EngineerUS$ 180 - 260MOQ: 1 Set -
2016 New Wireless Stress Test System Treadmill Stress Test Ecg MachineNegotiableMOQ: 1 Piece
-
Portable 3 Channel ECG Machine With PC Analyzer Software Electrocardiograph EKG-903BS With CE FDA CertificateUS$ 350 - 800MOQ: 1 Set
-
CE Approved 7 Inch 6-Channel Color ECG MachineUS$ 500 - 700MOQ: 1 Set
-
FDA*CE*ISO Cardiograph 7 Inch 12 Lead 12 Channel Electrocardiograph ECG / EKG MachineUS$ 680 - 780MOQ: 1 Set
Features:

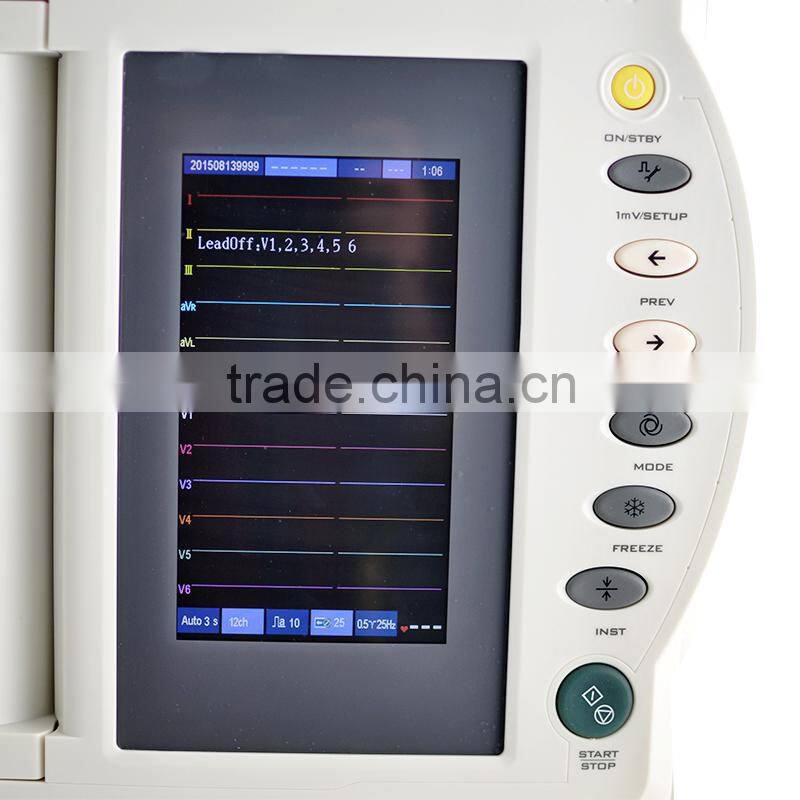

Backlit high resolution 480 x 800 7 inch color screen display.
12 channel ECG waveform simultaneously,Time,Heart-rate.ect
Operation Mode:automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart).
Printing Output:3+3 channel; 6 channel; 6+1 channel; 12 channel; 12+1 channel
216mm*20M thermal paper in rolls
200 reports in built-in memory, support external SD card.
report presentation,review and re-printing.
Recording sensitivity:1.25,2.5,5,10,20,40mm/mV±2%
14.8V 4400mA Li-poly rechargeable battery pack (DC)
Technical Specification:
Lead standard | 12 STANDARD or CABRERA leads |
Calibrating voltage | 1mV±2% |
Frequency response | 0.05~150Hz |
Patient current leakage | <10μA |
Noise level | <15μVp-p |
Printing speed | 5; 6.25; 10; 12.5; 25; 50mm/s±3% |
Input dynamic | ±500 mV |
Recording sensitivity | 1.25,2.5,5,10,20,40mm/mV±2% |
CMMR | ≥120dB |
Input impedance | ≥50Mohm |
Input circuit current | ≤0.1μA |
Input circuit | Defibrillation protection |
Power Supply | 220V±10%, 50Hz±2%, 75VA |
14.8V 4400mA Li-poly rechargeable battery pack (DC) | |
Report storage | 200 reports in built-in memory, support external SD card |
report presentation,review and re-printing. | |
Filer | Muscle filter: (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) |
AC filter: (50Hz or 60Hz, -20dB) | |
Drift filter: (0.5Hz,-3dB) | |
Machine weight | 3.9kg |

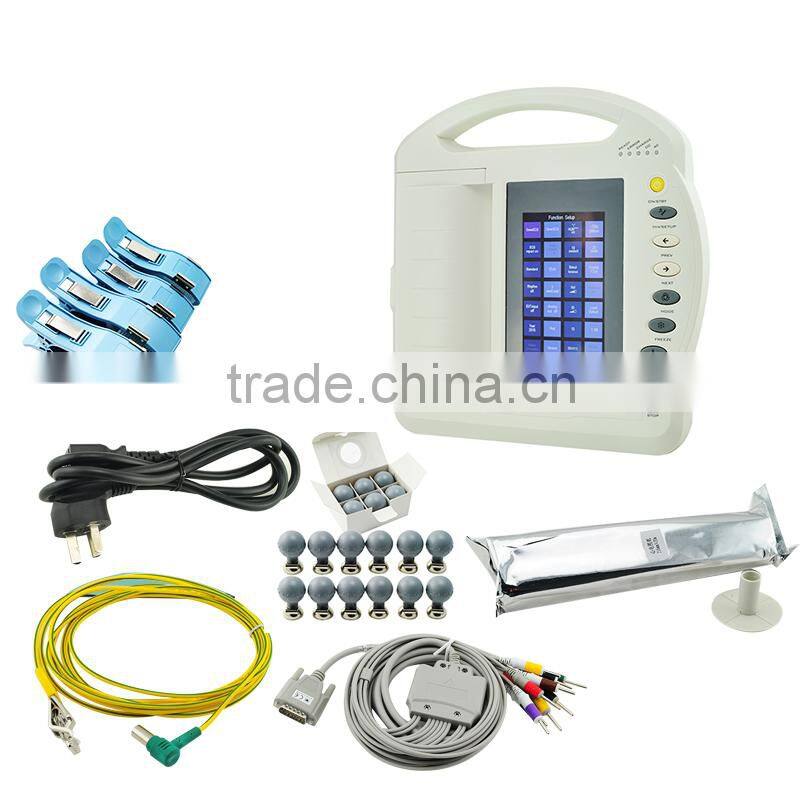

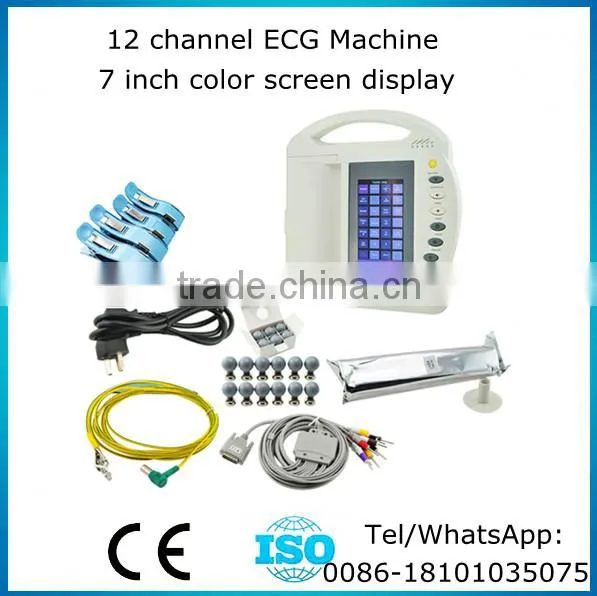

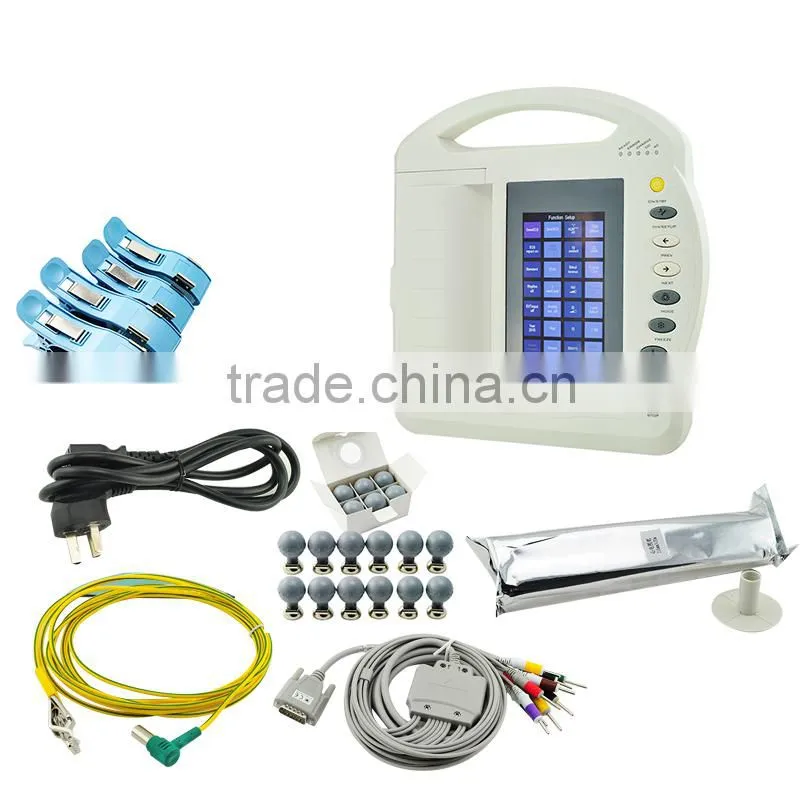

Packing List:
Electrocardiograph ×1
Banana type ECG cable×1
Chest electrodes×6
Limb electrodes×4
Power cable×1
Grounding cable
