ECG Machine

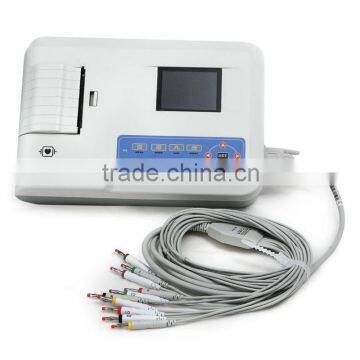

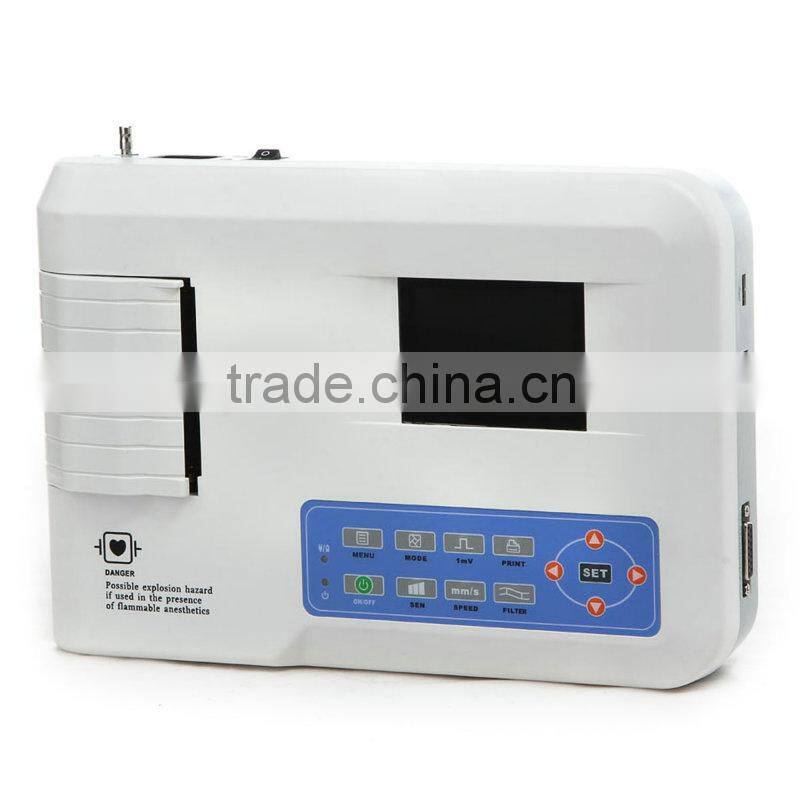

EKG-903BS is an electrocardiograph collecting 12-lead ECG signal simultaneously and printing ECG waveform with thermal printing system, which features in, recording and displaying ECG waveform with manual or auto mode, measuring and diagnosing ECG waveform parameters automatically, prompting for "Lead off" and "Lack of paper", multi-language interface, case database management.

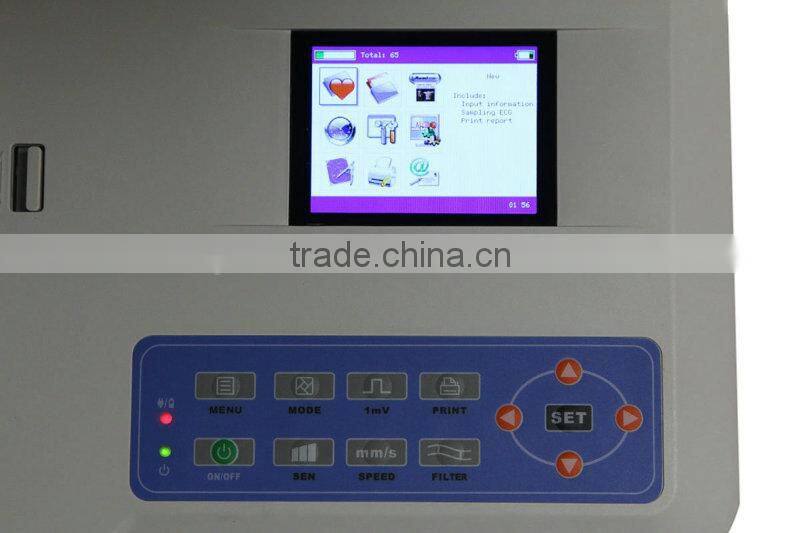

- 3.5" color LCD, accurate and clear ECG waveform and working state display, economical to save recording paper.
- Sync collection for 12-lead ECG, adopt digital signal processing technology to get high-quality ECG waveforms via AC filter, baseline filter and EMG filter of ECG signal.
- Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
- Multiply printing modes and formats, including manual, auto 4*3, auto 3*4+1, auto 3*4, auto 2*6+1, auto 2*6, auto 3-2+1, auto 3-2, auto 1*12+1, auto 1*12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with timing print function, which meets different requirements.

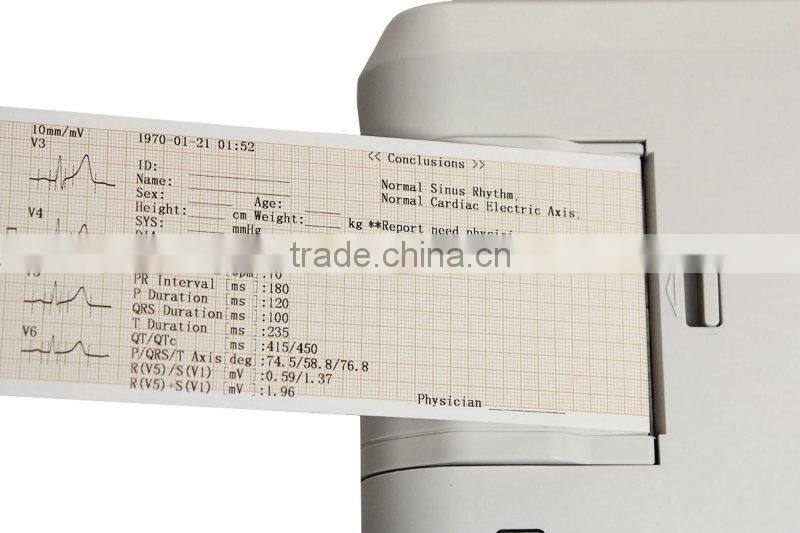

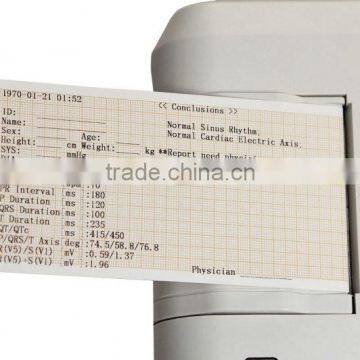

- With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor's burden.
- Built-in memory stores up to 260 cases, convenient for case review and statistic.
- With ECG software for PC
- Multi-language(Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakstan, Russian, Ukrainian, Serbian and Slovenian) interface and report.
- AC/DC, and in optimal DC state, built-in rechargeable lithium battery can continuously work for 10h, print for more than 3h and 260-ECG, which meets the requirements of visiting a patient at home and body examination.
General Specs
- Input way: Floating and defibrillation protection;
- Lead: standard 12 leads;
- Patient leak current: <10µA;
- Input impedance: ≥50MΩ;
- Frequency response: 0.05Hz~150Hz(-3dB);
- Time constant:>3.2s;
- CMRR:≥60dB, >100dB(add filter);
- EMG interference filter: 35Hz(-3dB);
- Recording way: Thermal array printing system;
- Specification of recording paper:80mm(W)×20m(L) High-speed thermal paper;
- Paper speed:
Auto-record:25mm/s.50mm/s,error:±5%
Rhythm record:25mm/s.50mm/s,error:±5%
Manual record:5mm/s.10mm/s.12.5mm/s.25mm/s.50mm/s,error:±5%;
- Sensitivity choice: 5.10.20mm/mV, error:±5%.Standard sensitivity is 10mm/mV±0.2mm/mV;
- Auto-record: Setting up record following the auto-record format and auto-mode, switching leads automatically, automatical measurement and analyse;
- Rhythm record: Setting up record following the rhythm format and rhythm mode, automatical measurement and analyse;
- Manual record: Setting up record following the manual format, manual leads-changing;
- Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5) , S(V1) , R(V5)+S(V1);
- Product safety type: Class I, Type CF applied part, there is defibrillation circuit;
- Enduring polarization voltage:±300mV;
- Noise level: ≤15µVp-p;
- Fuse Specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V;
- Size: 315mm(L)×215mm(W)×77mm(H);
- Net Weight: 2.25Kg.

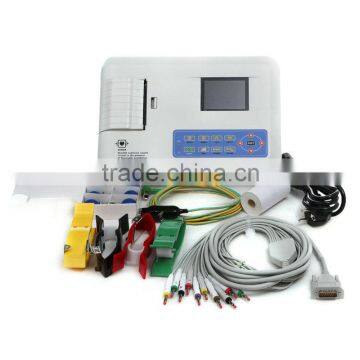

Packing List:
Electrocardiograph: 1each
Banana type ECG cable: 1each
Chest electrodes: 6each
Limb electrodes: 4each
Power cable: 1each
Grounding cable: 1each
Fuse: 2each
Paper roll: 1each
Manual: 1each
Our company has been a professional manufacturer & distributor for high-tech medical equipments since 2001.
We aims to provide the costeffective, reliable performance products. By collaborating with famous universities
and organizations, the company has designed and produced several types medical equipments in China market.
The quality management system of our company is ISO13485 certified.
Our products are also CE certified by MedCert Germany CE 0482.
Our company has a considerable market share in China domestic market and a growing increase in international market.
We aims to build good business relationships with more international distributors and customers sincerely.
We assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices
and rapid & effective customer service
