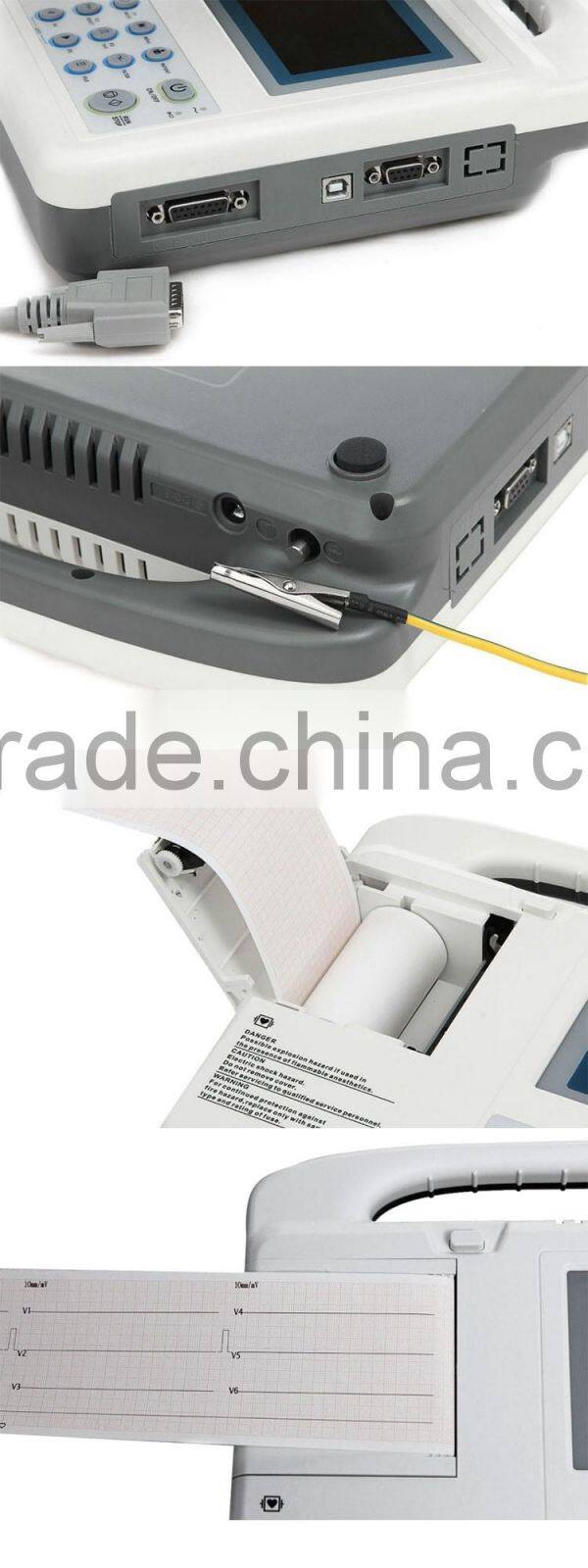

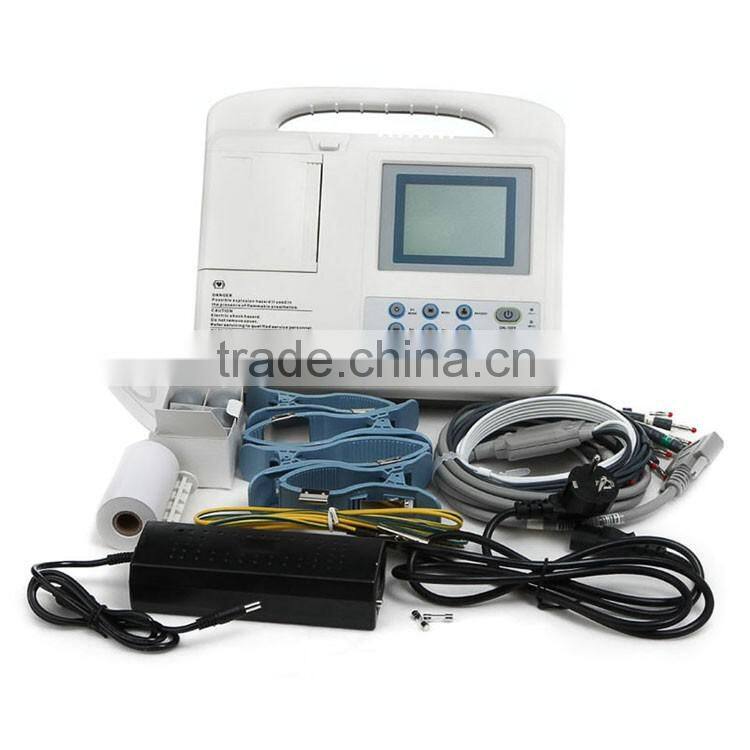

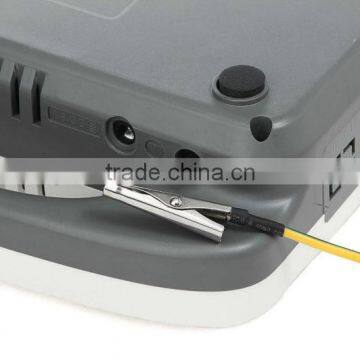

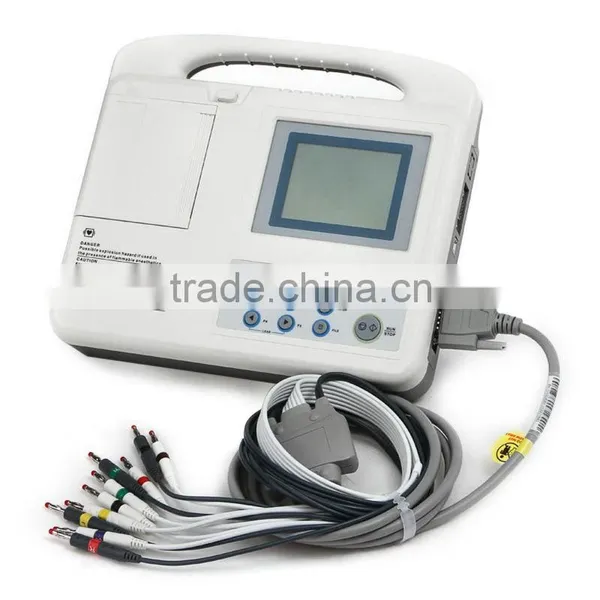

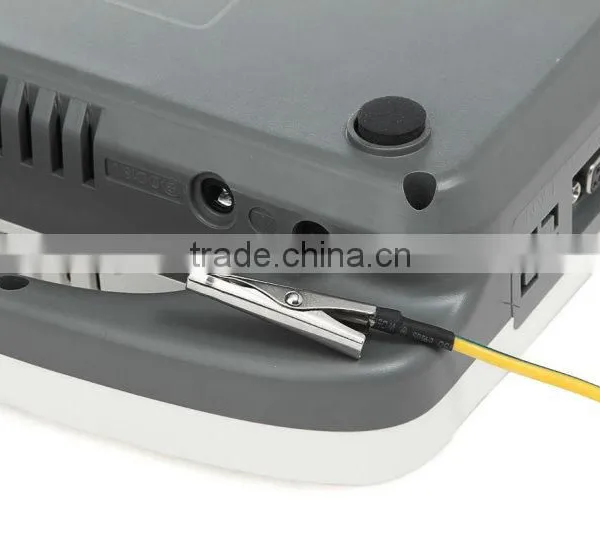

2016 new Portable Digital 3-channel Color Electrocardiograph ECG EKG machine on sale
Description:
Features:
- Three channel digital ECG machine with interpretation
- Simultaneous acquisition of 12-lead ECG signal
- Manual/Auto/Arrhythmia analysis modes
- Real time ECG, 20 patients cases
- Multiple printing modes
- 80mm 3-ch recording with rhythm lead

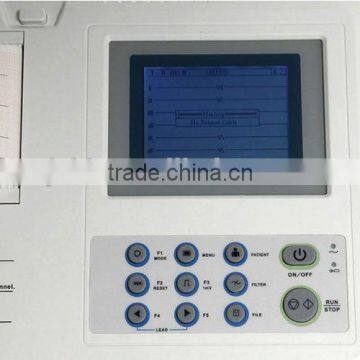

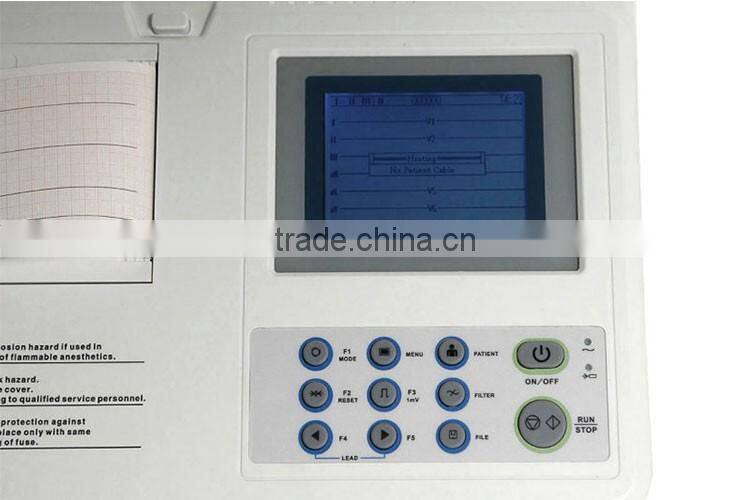

- 320x240 graphic, 5.7 inch LCD
- High resolution thermal printing system
- High resolution digital filter
- Built-in USB or RS232, optional PC-ECG software
- AC/DC power, built-in rechargeable Ni-MH battery
- Light weight with handle, convenient for use
Specification:
Safety standard
| IEC60601-1 class I, type CF
|
Lead
| Standard 12 Leads, Lead change automatically
|
Resolution
| 12 bit / 1000Hz
|
Operation mode
| Manual/Auto/Analysis modes
|
Filter
| AC, EMG filter
|
Drift filter
| Anti-drift system
|
Input circuit
| Floating; Protection against Defibrillator effect
|
CMRR
| >100dB (with filter)
|
Input circuit current
| <0.1μA
|
Input impedance
| ≥50ΜΩ
|
Calibrating voltage
| 1mV±3%
|
Frequency response
| 0.05Hz~160Hz (IEC)
|
Time constant
| >3.2seconds
|
Noise level
| ≤15Vp-p
|
Threshold
| ≤20μV
|
Sensitivity
| Auto 2.5, 5, 10, 20, 40mm/mV
|
Recording system
| High resolution thermal printer
|
Paper speed
| 25, 50mm/s±3%
|
Recording paper
| 80mmx20m, roll/fold paper
|
Power supply
| AC: 220V / 110V, 50/60Hz
|
LCD display
| 320x240 graphic, 5.7 inch LCD
|
Dimensions
| 285×265×72mm
|
Weight
| 2.5kg
|
Click the link for more styles:
https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
