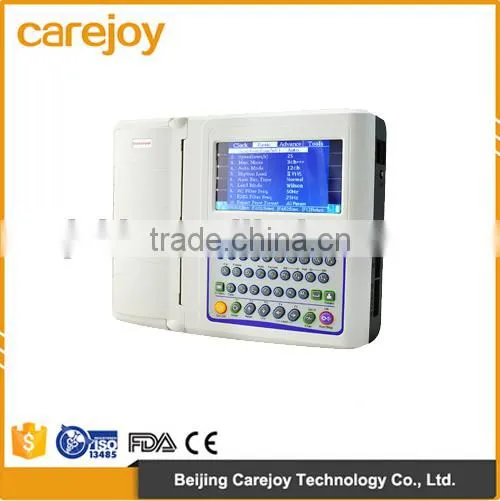

Help CenterFactory Price!!CE Approved 7 Inch Twelve Channel Color ECG Machine(EKG-1212F)
Related Products
-
Factory Price!!CE Approved 7 Inch 6-Channel Color ECG Machine(EKG-923)US$ 500 - 700MOQ: 1 Set -
Factory Price!!CE FDA Approved ECG Machine/ Electrocardiograph/Single Channel EKG MachineUS$ 210 - 300MOQ: 1 Set
-
CE*ISO Certified Resting 12 Lead Signal 7 Inch 6 Channel Digital Electrocardiograph ECG Machine Monitor EKG 1206AUS$ 450 - 750MOQ: 1 Set
-
Cheap Price 3 Channel Resting ECG Machine Electrocardiograph Electrocardiogram EKG FactoryUS$ 280 - 450MOQ: 1 Set
-
7 Inch Portable Resting 3 Channel 12-lead Electrocardiograph ECG Machine EKG-903A3 With CE ISO ApprovedUS$ 280 - 450MOQ: 1 Set
CE approved 12-Channel Color EKG machine!!!
Product Name |
Digital 12-channel Electrocardiograph |
Model |
EKG-1212F |
Key words |
ECG machine/ Electrocardiograph/12 channel ECG machine/EKG machine |
Brief introduction |
12-lead simultaneous resting ECG machine thermal printing Rechargeable battery One-touch use |
| |
Features:
- 12 channel digital ECG machine with interpretation
- Simultaneous acquisition of 12-lead ECG signal
- Manual/Auto/Arrhythmia analysis modes
- Real time ECG, 20 patients cases
- Alphabetic keyboard for patient info
- Multiple printing modes
- 320x240 graphic, 7 inch LCD
- High resolution thermal printing system
- High resolution digital filter
- Built-in USB or RS232, optional PC-ECG software
- AC/DC power, built-in rechargeable Ni-MH battery
- Light weight, portable, convenient for use
Specification:
Safety standard |
IEC60601-1 class I, type CF |
Lead |
Standard 12 Leads, Lead change automatically |
Resolution |
12 bit / 1000Hz |
Operation mode |
Manual/Auto/Analysis modes |
Filter |
AC, EMG filter |
Drift filter |
Anti-drift system |
Input circuit |
Floating; Protection against Defibrillator effect |
CMRR |
>100dB (with filter) |
Input circuit current |
<0.1μA |
Input impedance |
≥50ΜΩ |
Calibrating voltage |
1mV±3% |
Frequency response |
0.05Hz~160Hz (IEC) |
Time constant |
>3.2seconds |
Noise level |
≤15Vp-p |
Threshold |
≤20μV |
Sensitivity |
Auto 2.5, 5, 10, 20, 40mm/mV |
Recording system |
High resolution thermal printer |
Paper speed |
25, 50mm/s±3% |
Recording paper |
210/216mmx20m, roll/fold paper |
Power supply |
AC: 220V / 110V, 50/60Hz |
LCD display |
7 inch Color LCD |
