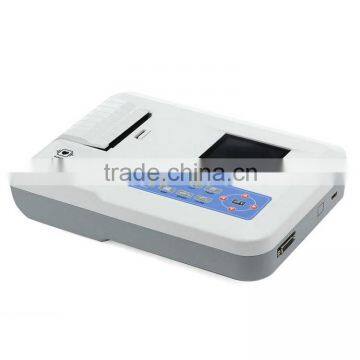

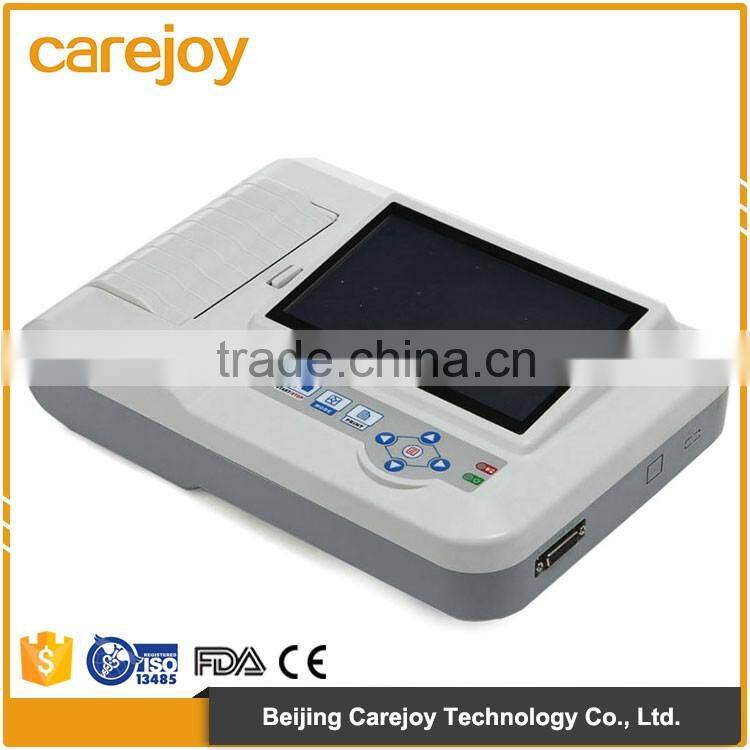

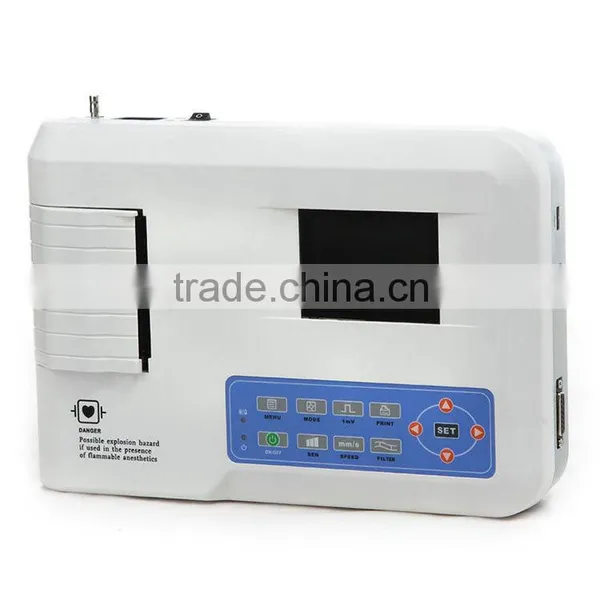

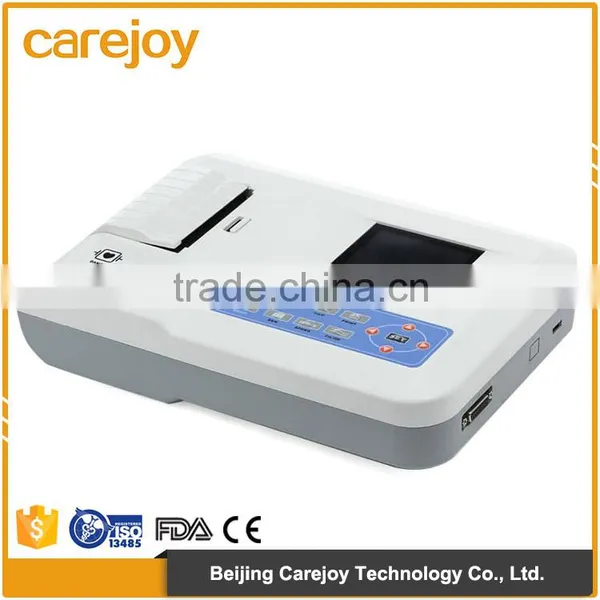

High Resolution 480*270 Wider Touch Screen Portable Standard 12 Lead Ecg Soft Keyboard Control

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Clinical Examination Aids

Brand Name:

OEM

Model Number:

EKG-903B

Beijing Carejoy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Type Clinical Examination Aids

Brand Name OEM

Model Number EKG-903B

Place of Origin Beijing, China

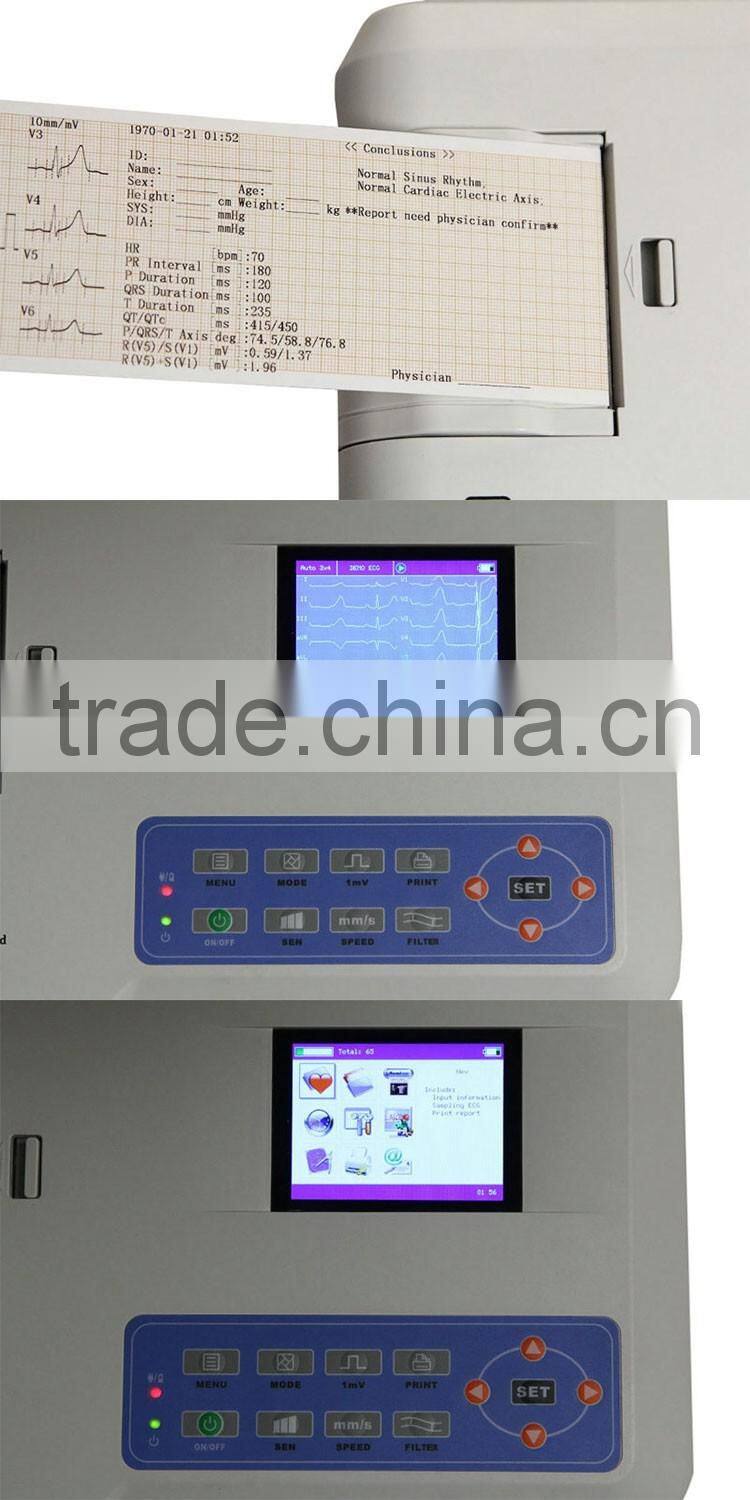

High resolution 480*270 wider Touch screen portable Standard 12 Lead ecg soft keyboard control

Product Description

Features:

TFT Color LCD, high resolution of 480*270 and design of more wider screen in

proportion of 10:9.

Touch screen and soft keyboard control, more convenient for operation

Simultaneous 12 leads display

Auto-analysis and auto-interpretation.

Provide more than 10 printing memory.

More than 1000 cases in internal memory

Can print 90 minutes and print out 150 pcs ECG continually

Support 90 Chinasa, English, Spanish and Turkish operating interface.

Option:ECG-Sync software, connect with the PC by USB connector to form
a ECG workstation,

Specification:

Safety Type	class I, type CF applied part, which has defibrillation-proof applied part

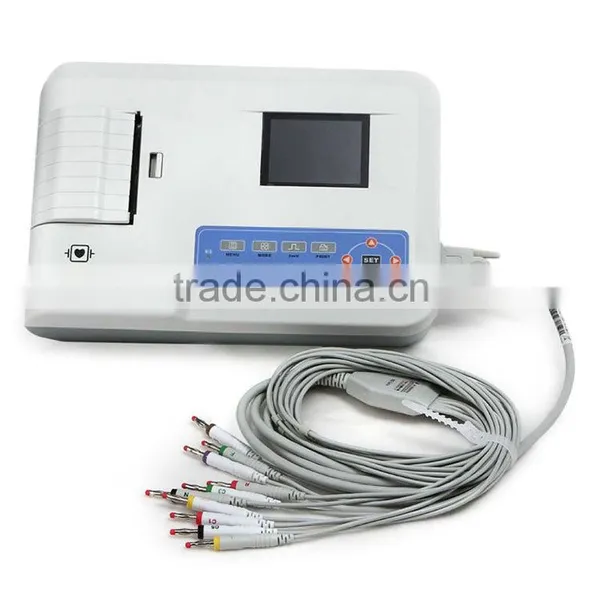

Lead	Standard 12 Leads
Input way	Floating and defibrilation protection
Patient leak current	<10μA
Sampling rate	1000Hz
A/D conversion	12bit
Frequency response	0.05Hz~150Hz (-3dB, +0.4dB)
CMRR	>60dB, >100dB(Add filter)
Enduring polarization voltage	±300mV
Noise level	≤15μVp-p
EMG interference filter	25/35Hz(-3dB)
AC filter	50Hz/60Hz (≥20dB)
Recording way	Thermal printing system(32spots/mm)
Recording paper	80mm(W)x20m(L)Sensitivity
Sensitivity	2.5mm/mV , 5mm/mV, 10mm/mV, 20mm/mV 40mm/mV, Auto
Paper speed	Auto recording: 25mm/s, 50mm/s Rhythm-recording: 25mm/s,50mm/s Manual-record: 5mm/s,6.25mm/s,10mm/s 12.5mm/s, 25mm/s, 50mm/s
AC	110V/220V, 50Hz/60Hz
DC	7.4V, 3700mAh rechargeable lithium polymer battery
Dimension	315(L)x215(W)x77(H)mm
Net Weight	2.25Kg
