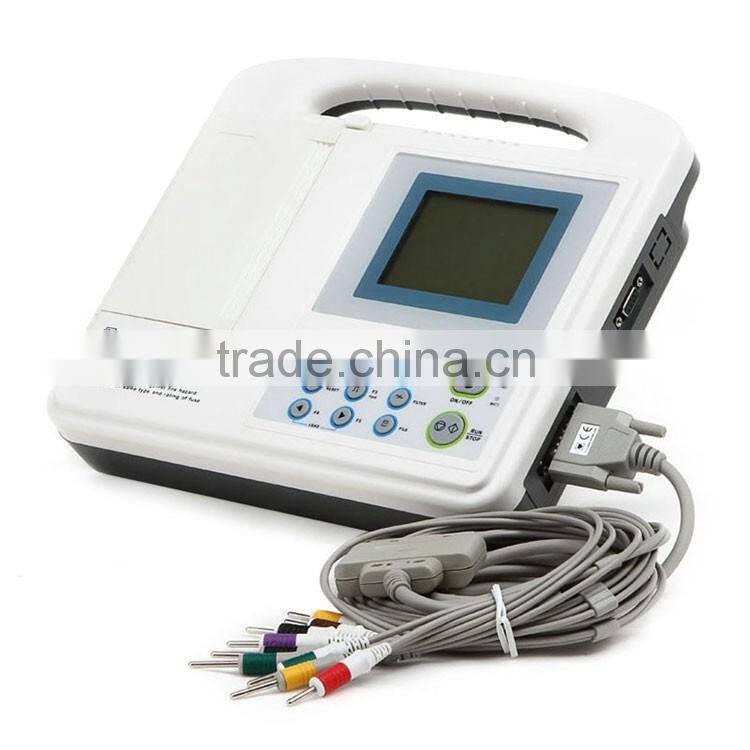

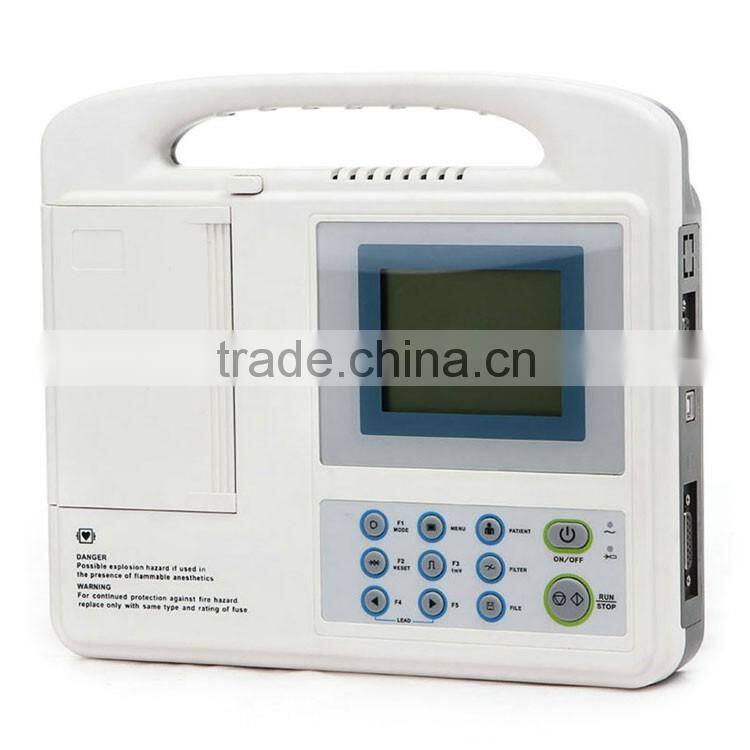

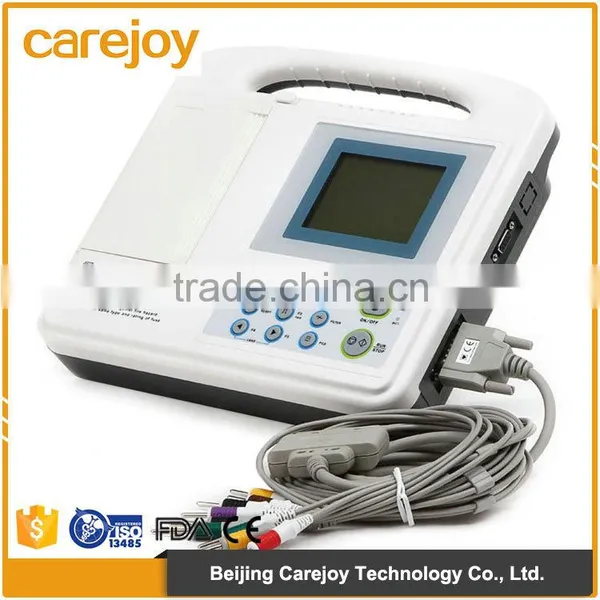

ISO 3.8 Inch LCD High Resolution Thermal Printer 12 Leads Electrocardiograph Ecg Machine With Interpretation

ISO 3.8 Inch LCD High Resolution Thermal Printer 12 Leads Electrocardiograph Ecg Machine With Interpretation thumbnail-1
ISO 3.8 Inch LCD High Resolution Thermal Printer 12 Leads Electrocardiograph Ecg Machine With Interpretation thumbnail-2
ISO 3.8 Inch LCD High Resolution Thermal Printer 12 Leads Electrocardiograph Ecg Machine With Interpretation thumbnail-3
ISO 3.8 Inch LCD High Resolution Thermal Printer 12 Leads Electrocardiograph Ecg Machine With Interpretation photo-1
ISO 3.8 Inch LCD High Resolution Thermal Printer 12 Leads Electrocardiograph Ecg Machine With Interpretation photo-2
ISO 3.8 Inch LCD High Resolution Thermal Printer 12 Leads Electrocardiograph Ecg Machine With Interpretation photo-3
US$ 100 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Blood Testing Equipments
Brand Name:
OEM
Place of Origin:
Beijing, China
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Blood Testing Equipments
Brand Name OEM
Place of Origin Beijing, China
Model Number EKG-1206

ISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretation

ISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretation

Product Description

 Features:

- Six channel digital ECG machine with interpretation.

- Simultaneous acquisition of 12-lead ECG signal.

- Manual/Auto/Arrhythmia analysis modes.

- Real time ECG, 20 patients cases.

- Multiple printing modes.

- 112mm 3/6-ch format recording.

- 320x240 graphic, 3.8 inch LCD.

- High resolution thermal printing system.

- High resolution digital filter.

- Built-in USB or RS232, optional PC-ECG software.

- AC/DC power, built-in rechargeable Ni-MH battery.

- Light weight with handle, convenient for use.





Specification:

Safety standard

IEC60601-1 class I, type CF

Lead

Standard 12 Leads, Lead change automatically

Resolution

 12 bit / 1000Hz

Operation mode

Manual/Auto/Analysis modes

Filter

AC, EMG filter

Drift filter

Anti-drift system

Input circuit

Floating; Protection against Defibrillator effect

CMRR

>100dB (with filter)

Input circuit current

<0.1μA



Input impedance

≥50ΜΩ

Calibrating voltage

1mV±3%



Frequency response

0.05Hz~160Hz (IEC)



Time constant

>3.2seconds

Noise level

≤15Vp-p

Threshold

≤20μV

Sensitivity

Auto 2.5, 5, 10, 20, 40mm/mV

Recording system

High resolution thermal printer



Paper speed

25, 50mm/s±3%

Recording paper

112mmx20m, roll/fold paper



Power supply

AC: 220V / 110V, 50/60Hz
DC: 14.4V rechargeable NI-Ion battery (2200mAh)

LCD display

320x240 graphic, 3.8 inch LCD

Dimensions

285×265×72mm

Weight

2.5kg



 ISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretationISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretationISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretation





Click the link for more styles:

https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html



Hot Sale

ISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretation

Contact Information

ISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretation

Company Information

ISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretation

ISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretation

Our Services

1. 18 months warranty for the mainframe from date of shipment under normal use and service.

2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.

3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.



4. OEM/ODM services are available.

Packaging & Shipping

ISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretation

ISO 3.8 inch LCD High resolution thermal printer 12 Leads electrocardiograph ecg machine with interpretation
