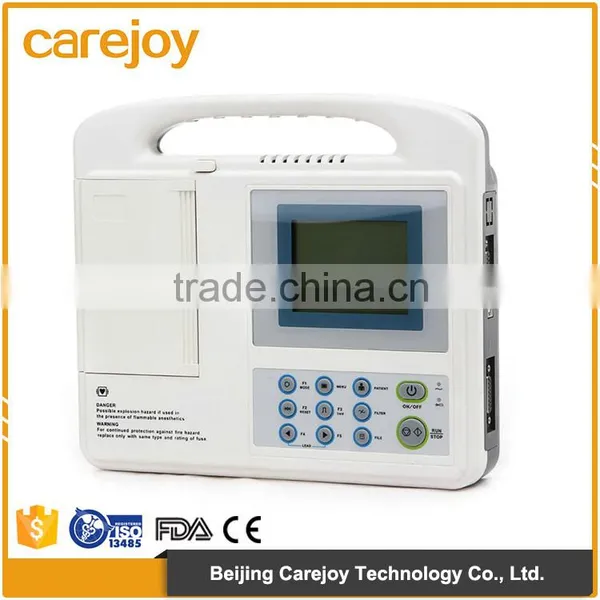

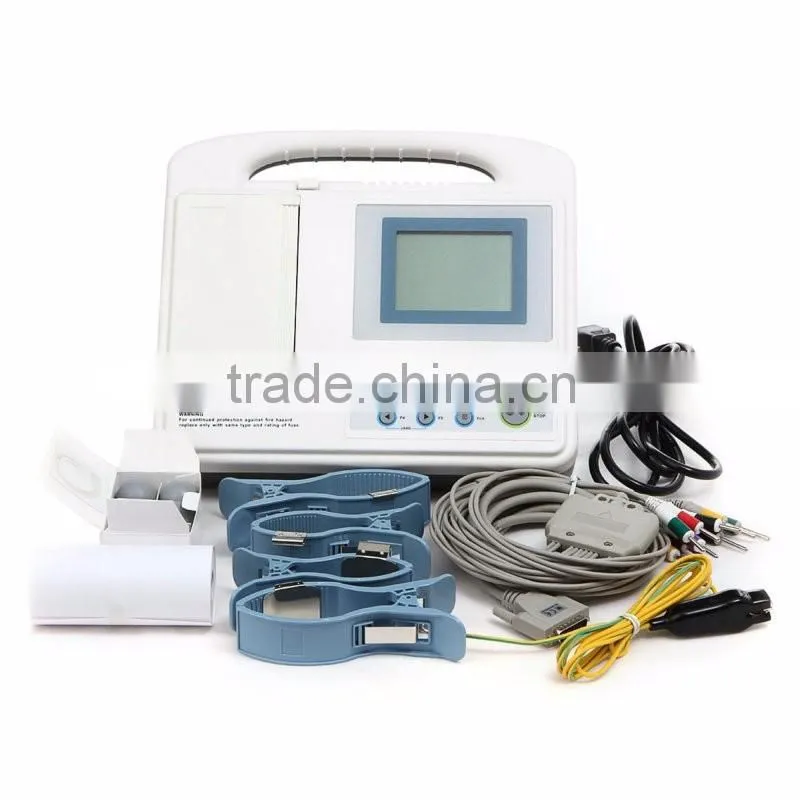

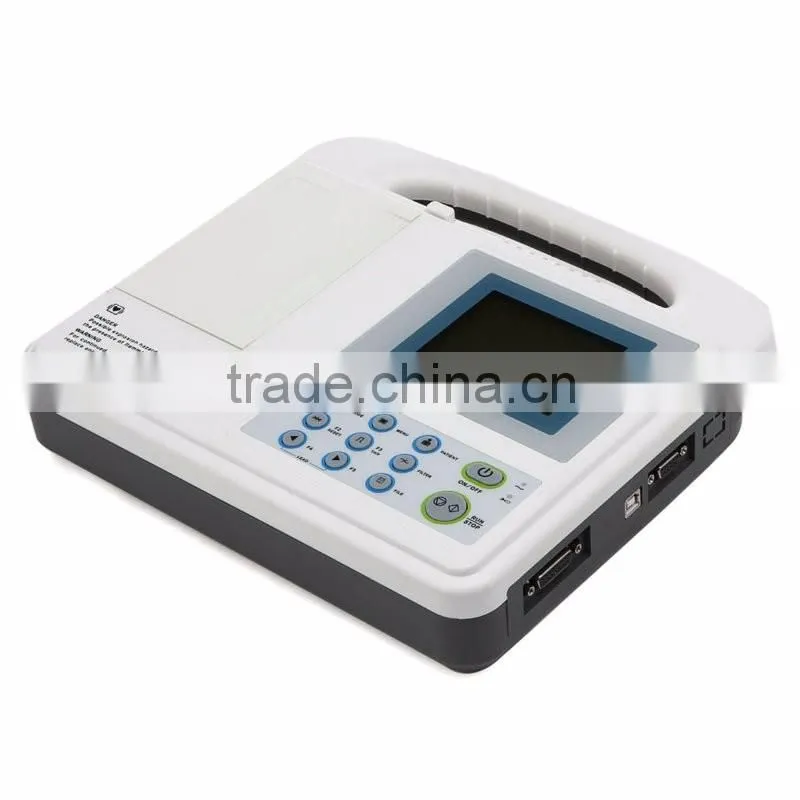

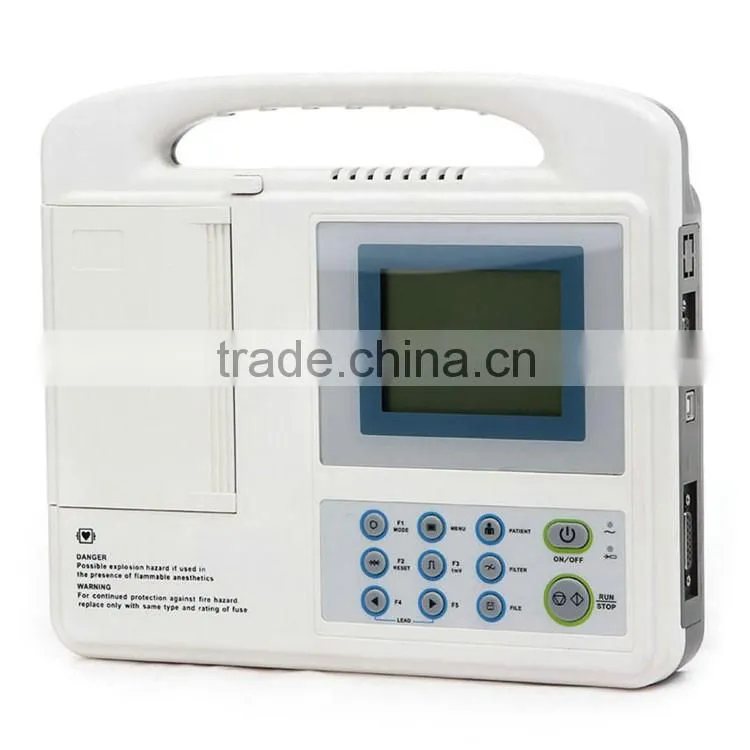

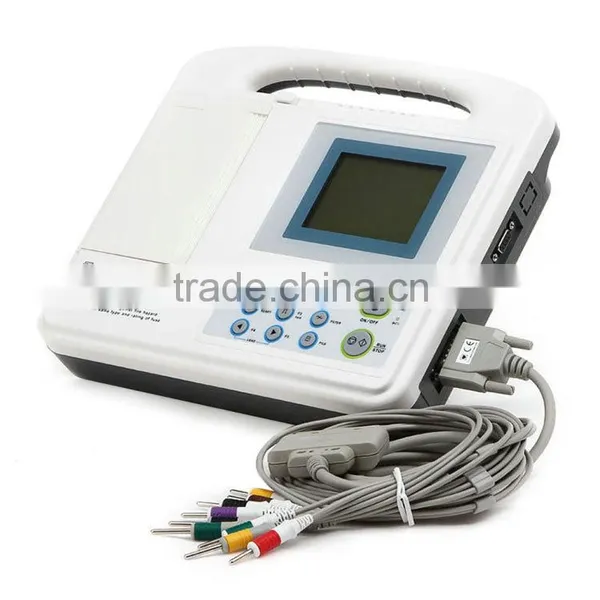

Help CenterOEM Six Channel Digital ECG Machine 12-lead Digital 6-channel Electrocardiograph
Related Products
-
CE &ISO13485 OEM Design Standard 12 Leads Touch Screen Digital 6-channel ElectrocardiographUS$ 100 - 699MOQ: 1 Set -
CE and ISO13485 White Color High Resolution TFT Color LCD Portable Digital 3-channel ElectrocardiographUS$ 100 - 559MOQ: 1 Set
-
China Medical Devices AC/DC Power, Built-in Rechargeable Ni-H Battery Poratble Ecg Machine for SaleUS$ 100 - 389MOQ: 1 Set
-
Automatic and Manual Operation Modes Digital 1-channel Electrocardiograph Cheap Mini Portable Ecg MachineUS$ 100 - 389MOQ: 1 Set
-
Cheap Hand-held Single Channel Digital ECG Machine Portable Ecg MonitorUS$ 100 - 389MOQ: 1 Set
Features:
- Six channel digital ECG machine with interpretation.
- Simultaneous acquisition of 12-lead ECG signal.
- Manual/Auto/Arrhythmia analysis modes.
- Real time ECG, 20 patients cases.
- Multiple printing modes.

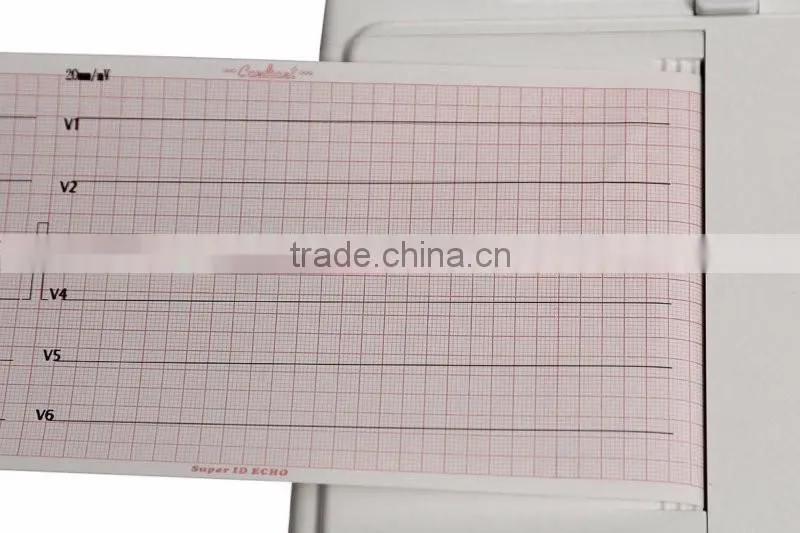

- 112mm 3/6-ch format recording.

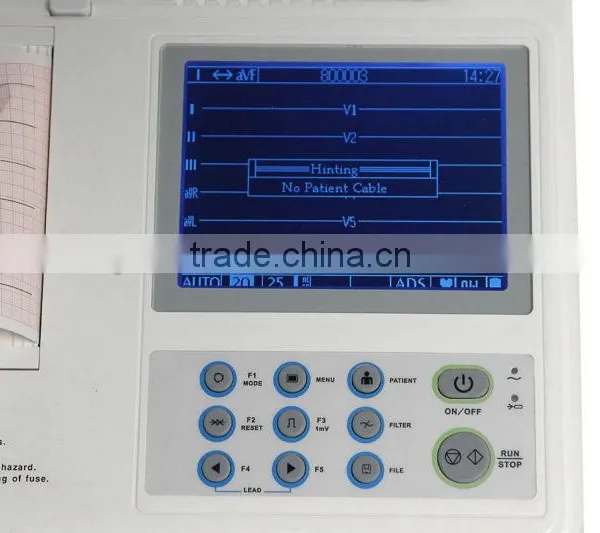

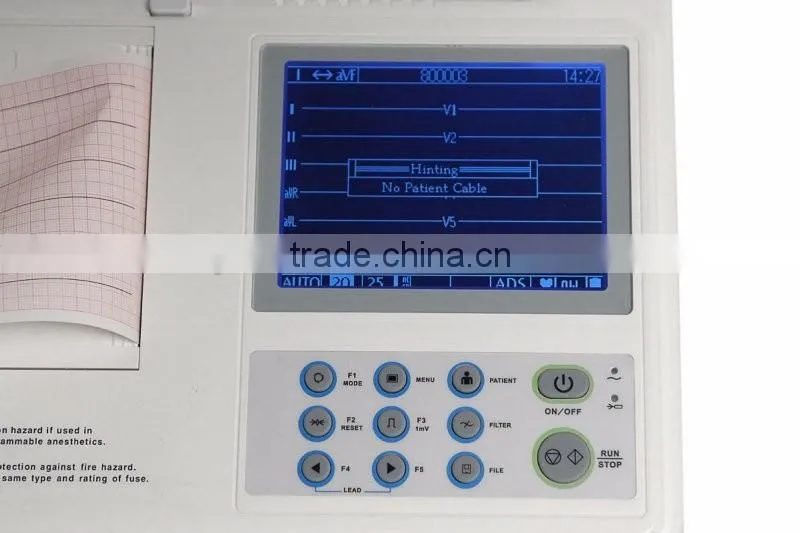

- 320x240 graphic, 3.8 inch LCD.

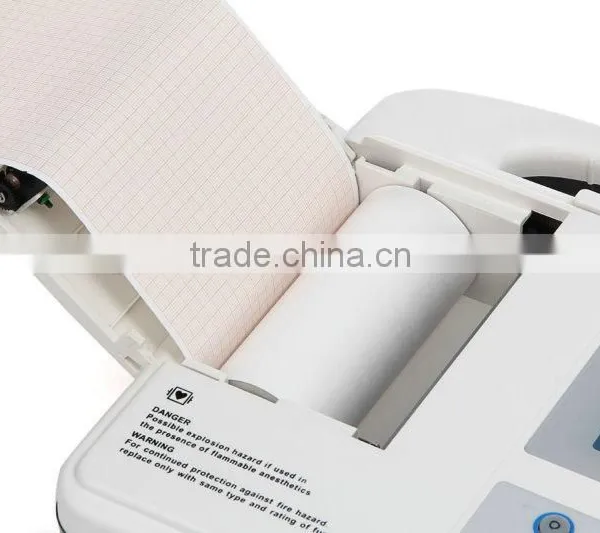

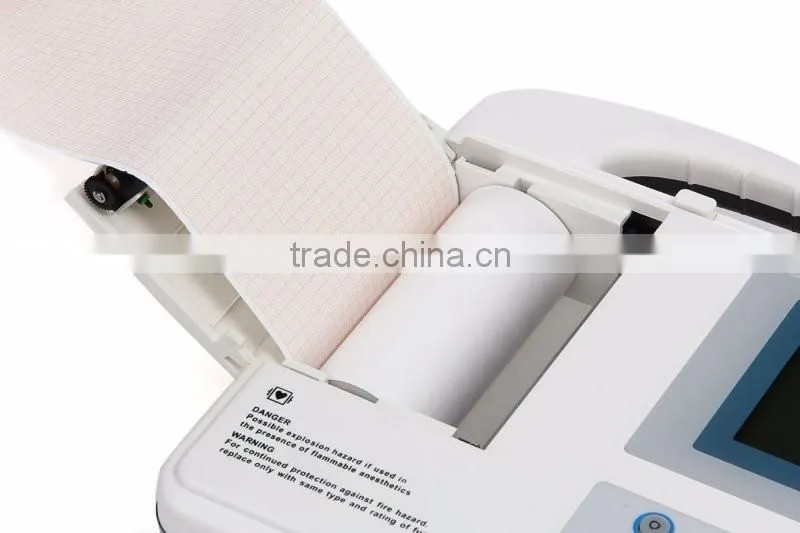

- High resolution thermal printing system.
- High resolution digital filter.

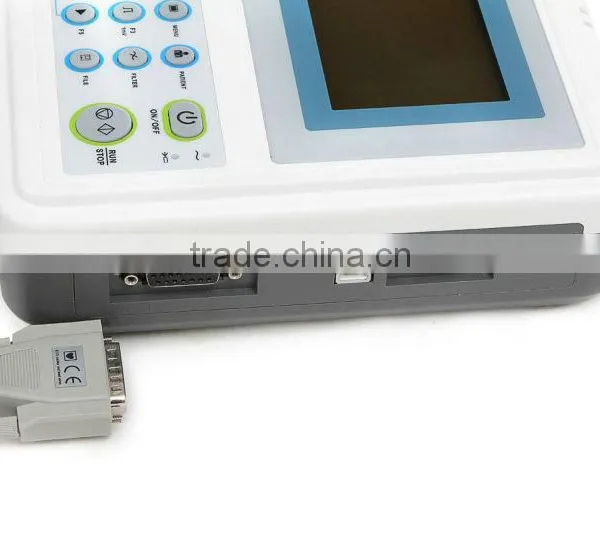

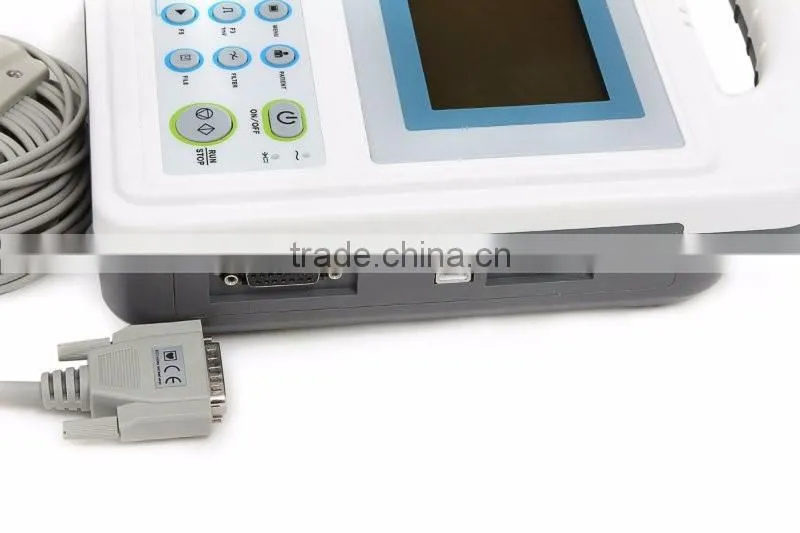

- Built-in USB or RS232, optional PC-ECG software.
- AC/DC power, built-in rechargeable Ni-MH battery.
- Light weight with handle, convenient for use.
Specification:
| Safety standard | IEC60601-1 class I, type CF |
| Lead | Standard 12 Leads, Lead change automatically |
| Resolution | 12 bit / 1000Hz |
| Operation mode | Manual/Auto/Analysis modes |
| Filter | AC, EMG filter |
| Drift filter | Anti-drift system |
| Input circuit | Floating; Protection against Defibrillator effect |
| CMRR | >100dB (with filter) |
| Input circuit current | <0.1μA |
| Input impedance | ≥50ΜΩ |
| Calibrating voltage | 1mV±3% |
| Frequency response | 0.05Hz~160Hz (IEC) |
| Time constant | >3.2seconds |
| Noise level | ≤15Vp-p |
| Threshold | ≤20μV |
| Sensitivity | Auto 2.5, 5, 10, 20, 40mm/mV |
| Recording system | High resolution thermal printer |
| Paper speed | 25, 50mm/s±3% |
| Recording paper | 112mmx20m, roll/fold paper |
| Power supply | AC: 220V / 110V, 50/60Hz |
| DC: 14.4V rechargeable NI-Ion battery (2200mAh) | |
| LCD display | 320x240 graphic, 3.8 inch LCD |
| Dimensions | 285×265×72mm |
| Weight | 2.5kg |
Click the link for more styles:
https://img13.fr-trading.com/productgrouplist-801123345/ECG.html
Click the picture for detalied information:
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
