CE &ISO13485 OEM design Standard 12 leads Touch Screen Digital 6-channel Electrocardiograph
Features:

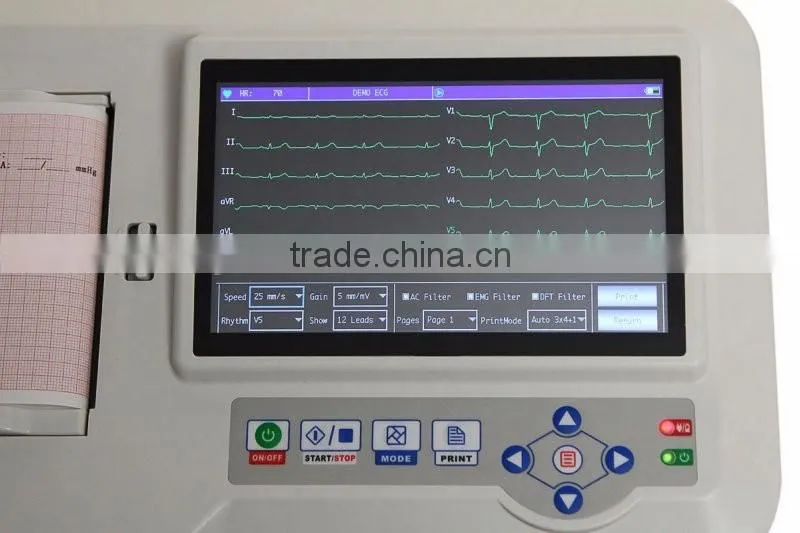

12-lead simultaneous standard resting ECG

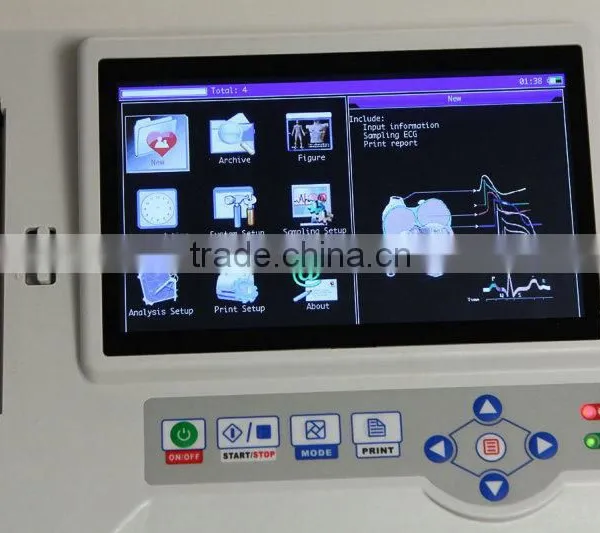

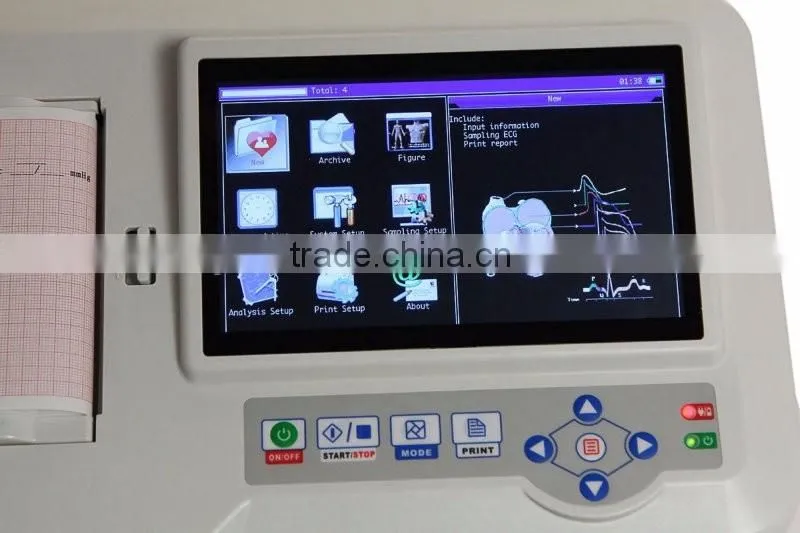

7-inch TFT, touch screen, led back light
Digital isolation technology and signal processing solution, digital filter
Patient management, name and age and id.
Detail analysis report.
Mufti-language options: Chinese, English, Italian, Turkey, Spanish, etc

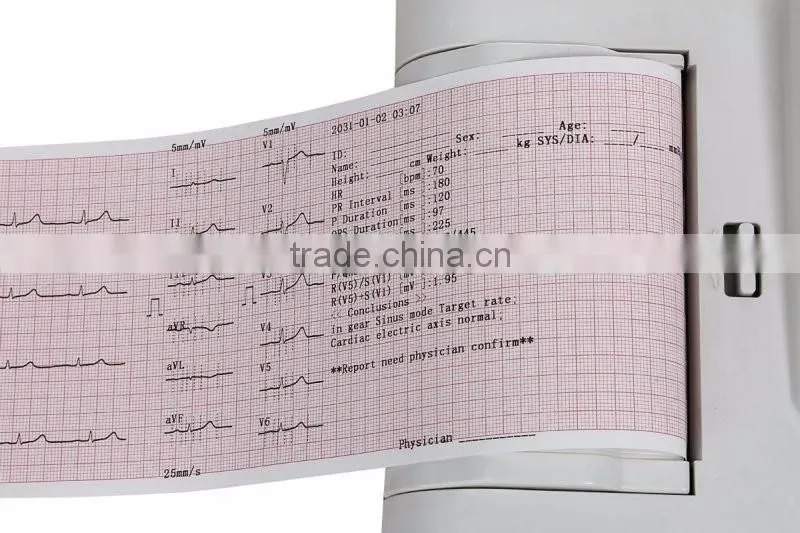

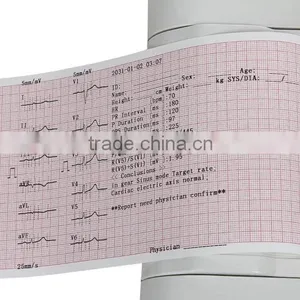

Built-in lithium rechargeable battery, wide thermal printing system

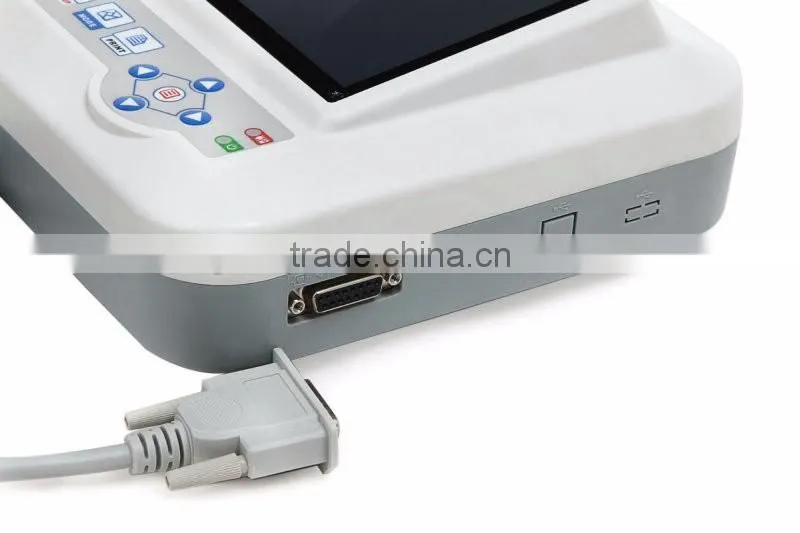

USB and LAN socket
Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
Auto-measurement, auto-analysis, and auto-interpretation
Specification:
| Safety standard | IEC class I, type CF |
| Lead | Standard 12 leads |
| Patient leak current | <10uA |
| Input impedance | >=50M |
| Frequency response | 0.05~150Hz(-3dB) |
| Time constant | >3.2s |
| CMRR | >100dB |

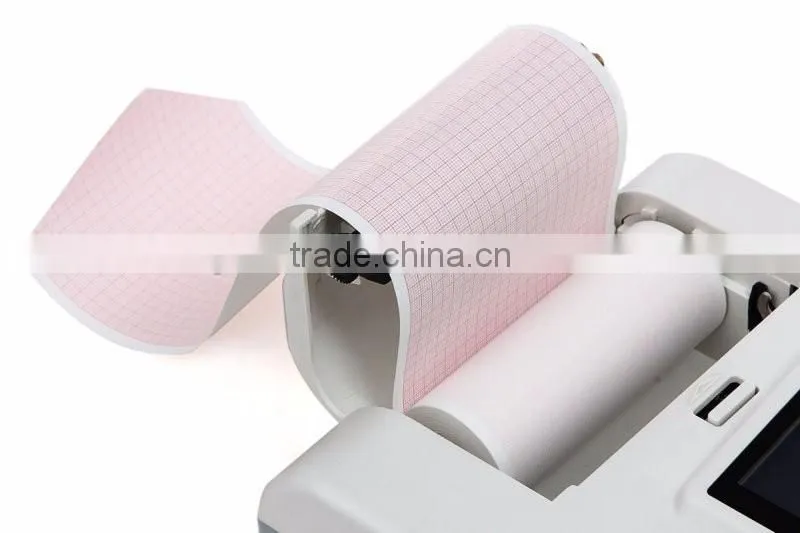

| Dimension of recording paper | 80mmx20m |
| Paper speed | 25mm/s, 50mm/s |
| Sensitivity choice | 5, 10, 20mm/mV |

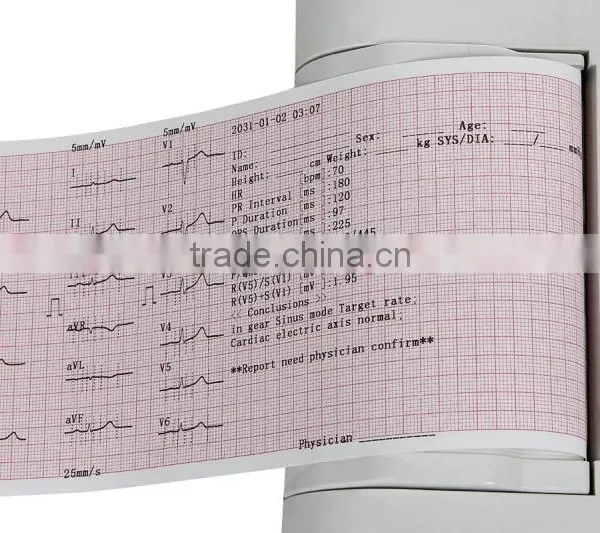

| Measurement parameters | HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) |
| Product safety type | Class I, CF. Defibrillation and pacing protection |
| Enduring polarization voltage | 300mv |
| Noise level | <15uVp-p |
| Dimension | 130mm x 74mm x 25mm (WxLxH) |
| Net weight | 2.5kg |

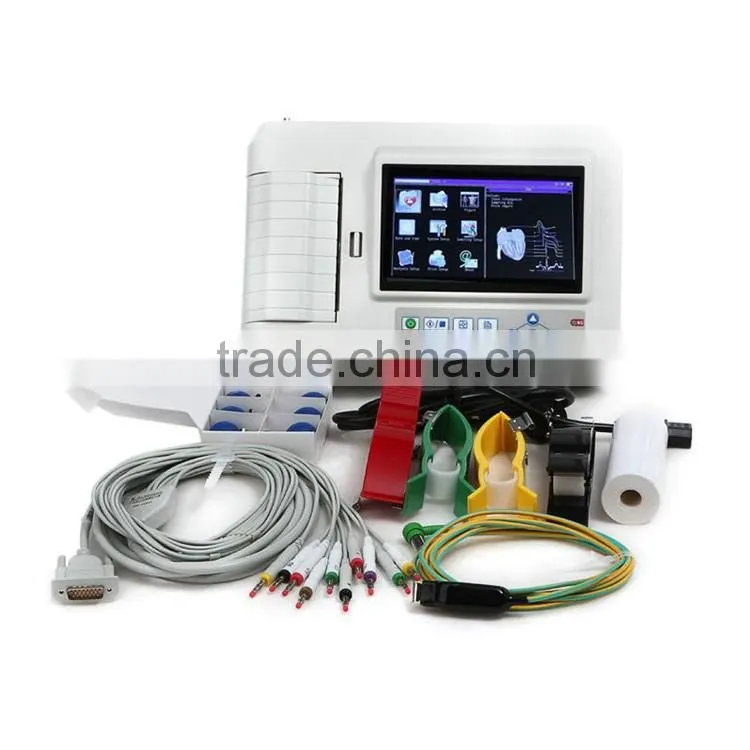

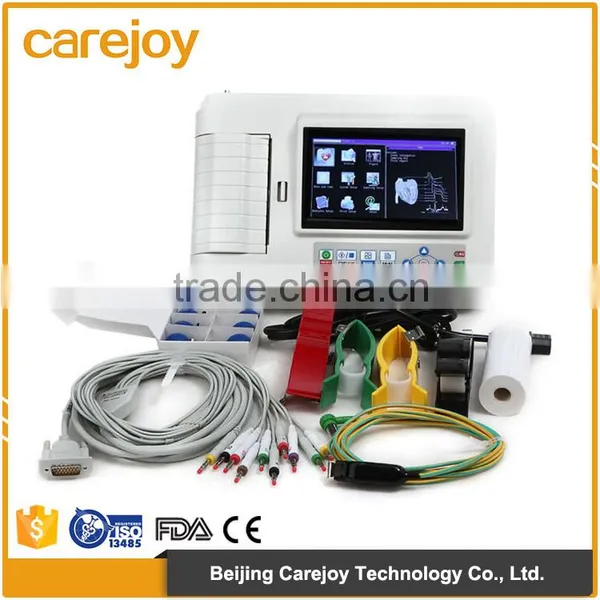

Packing List:
Electrocardiograph: 1each

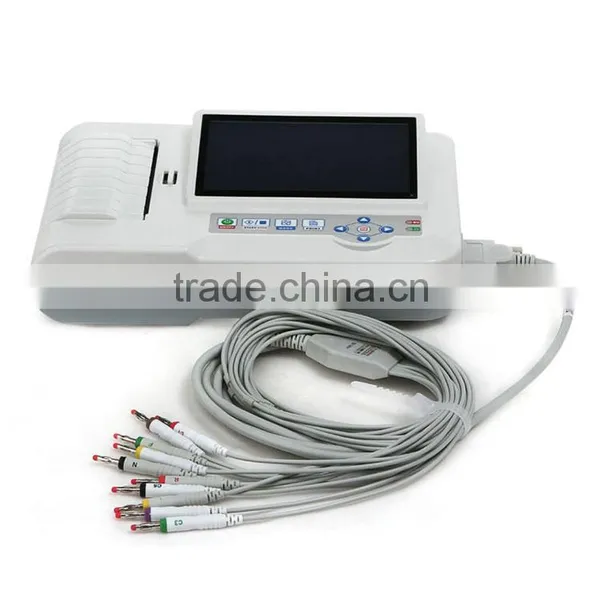

Banana type ECG cable: 1each
Chest electrodes: 6each
Limb electrodes: 4each
Power cable: 1each
Grounding cable: 1each
Fuse: 2each
Paper roll: 1each
Manual: 1each
Click the link for more styles:
https://img13.fr-trading.com/productgrouplist-801123345/ECG.html
Click the picture for detalied information:
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
