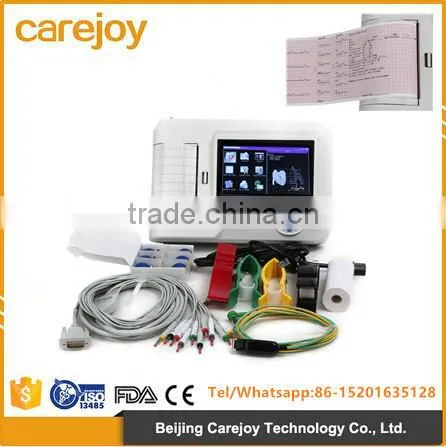

CE& ISO Approved Digital 6-channel Touch Screen Color Electrocardiograph

US$ 499 - 529 MOQ: 1 Unit

Key Specifications

Type:

First-Aid Devices

Model Number:

EKG-923

Place of Origin:

Beijing, China

Beijing Carejoy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Type First-Aid Devices

Model Number EKG-923

Place of Origin Beijing, China

Features:

12-lead simultaneous standard resting ECG
7-inch TFT, touch screen, led backlight
Digital isolation technology and signal processing solution, digital filter
Patient management, name and age and id.
Detail analysis report.
Multi-language options: Chinese, English, Italian, Turkey, Spanish, etc
Built-in lithium rechargeable battery, wide thermal printing system
USB and LAN socket
Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
Auto-measurement, auto-analysis, and auto-interpretation

Specification:

Safety standard	IEC class I, type CF
Lead	Standard 12 leads
Patient leak current	<10uA
Input impedance	>=50M
Frequency response	0.05~150Hz(-3dB)
Time constant	>3.2s
CMRR	>100dB
Dimension of recording paper	80mmx20m
Paper speed	25mm/s, 50mm/s
Sensitivity choice	5, 10, 20mm/mV
Measurement parameters	HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Product safety type	Class I, CF. Defibrillation and pacing protection
Enduring polarization voltage	300mv
Noise level	<15uVp-p
Dimension	130mm x 74mm x 25mm (WxLxH)
Net weight	2.5kg
