Home > Health & Medicine > Medical Equipment > Ventilator > CE& FDA Approved Portable Ecg Machine Digital 6-channel Touch Screen Color Electrocardiograph ECG EKG Machine With Free Software

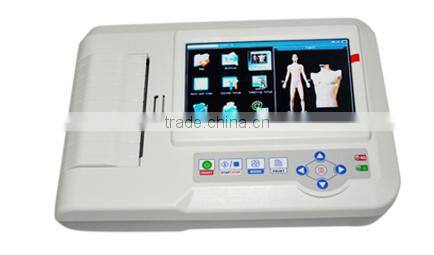

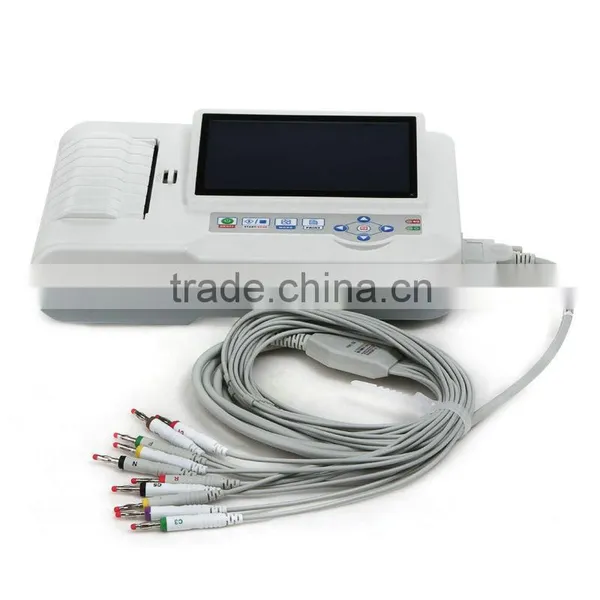

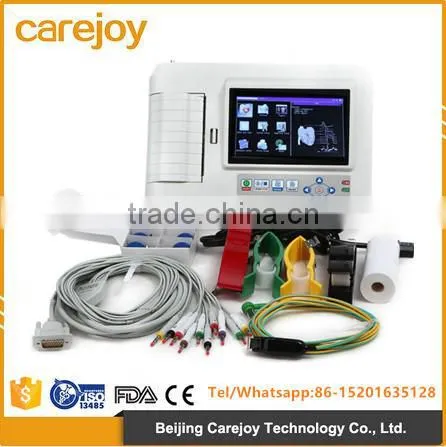

CE& FDA Approved Portable Ecg Machine Digital 6-channel Touch Screen Color Electrocardiograph ECG EKG Machine With Free Software
US$ 499 - 599
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Examination Therapy Equipments
Brand Name:
Carejoy
Model Number:
EKG-923S
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE & ISO Approved 12 Channel Ecg Machine EKG MachineUS$ 699 - 899MOQ: 1 Set -
2016 Health & Medical Equipment 10 Inch Touch Screen 12 Channel Ecg Low PriceUS$ 699 - 899MOQ: 1 Set
-
CE& FDA Approved Digital 1-channel Handheld Palm Electrocardiograph ECG EKG MachineUS$ 199 - 299MOQ: 1 Unit
-
1-channel Handheld Electrocardiograph ECG EKG Machine Low PriceUS$ 199 - 299MOQ: 1 Unit
-
Digital 1-channel Handheld ElectrocardiographUS$ 199 - 299MOQ: 1 Unit
Type
Examination Therapy Equipments
Brand Name
Carejoy
Model Number
EKG-923S
Place of Origin
Beijing, China
Features:

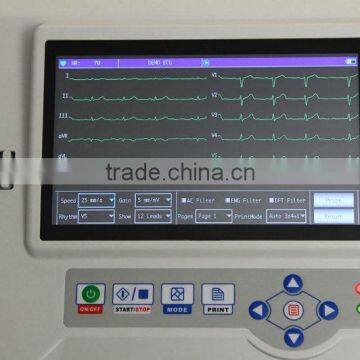

- 12-lead simultaneous standard resting ECG

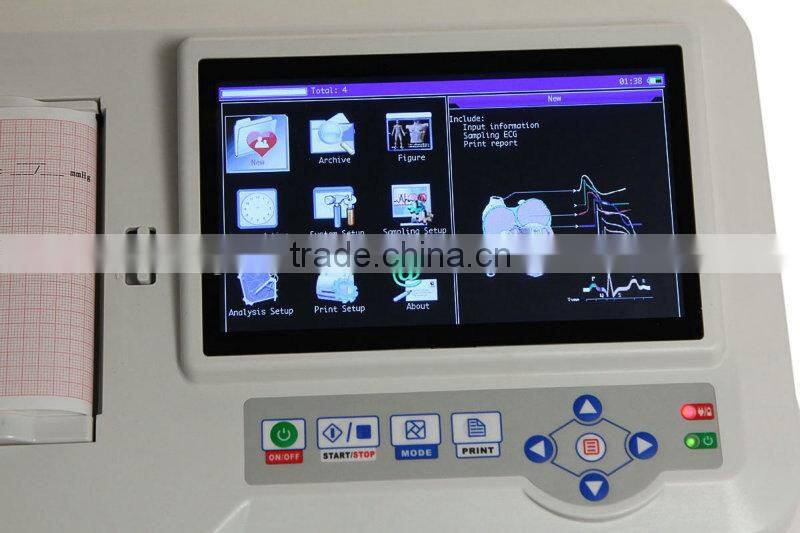

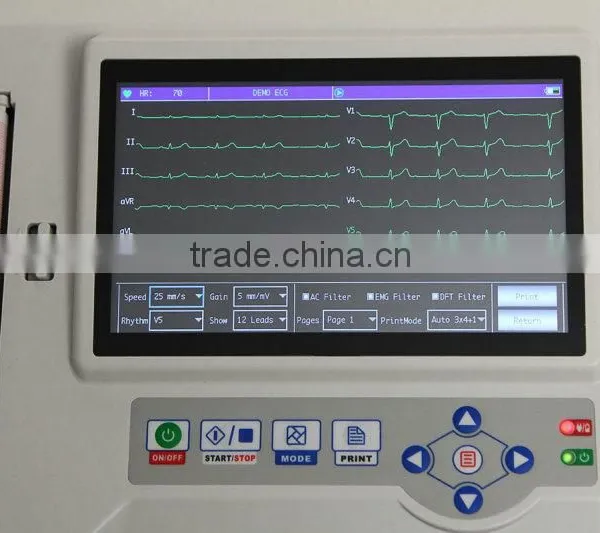

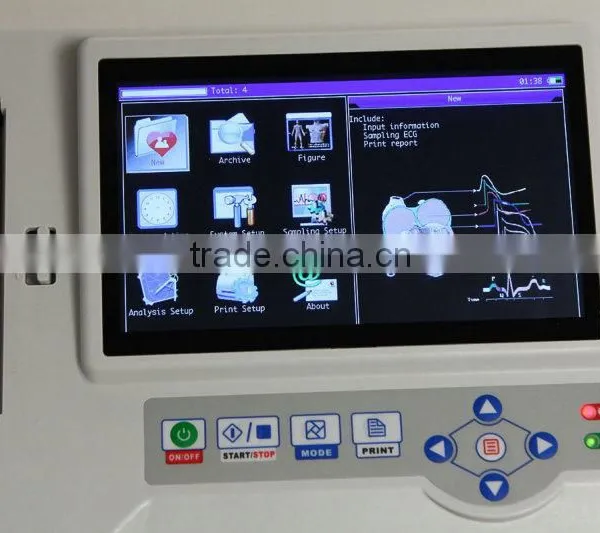

- 7-inch TFT, touch screen, led backlight
- Digital isolation technology and signal processing solution, digital filter
- Patient management, name and age and id.
- Detail analysis report.
- Multi-language options: Chinese, English, Italian, Turkey, Spanish, etc

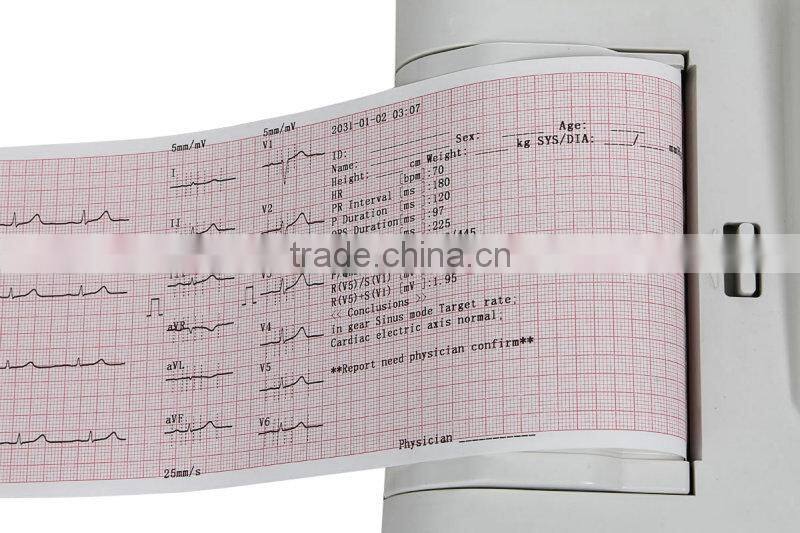

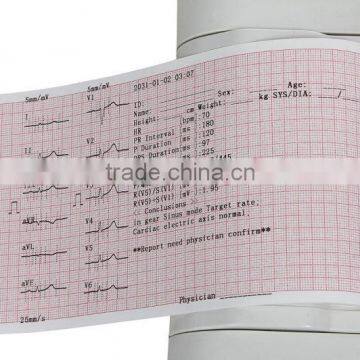

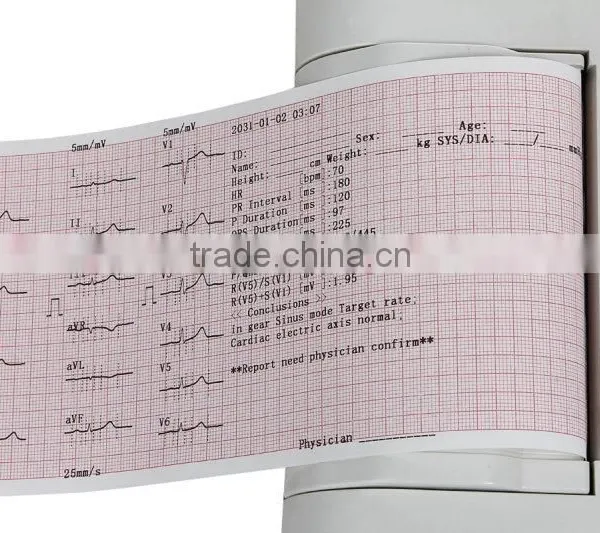

- Built-in lithium rechargeable battery, wide thermal printing system

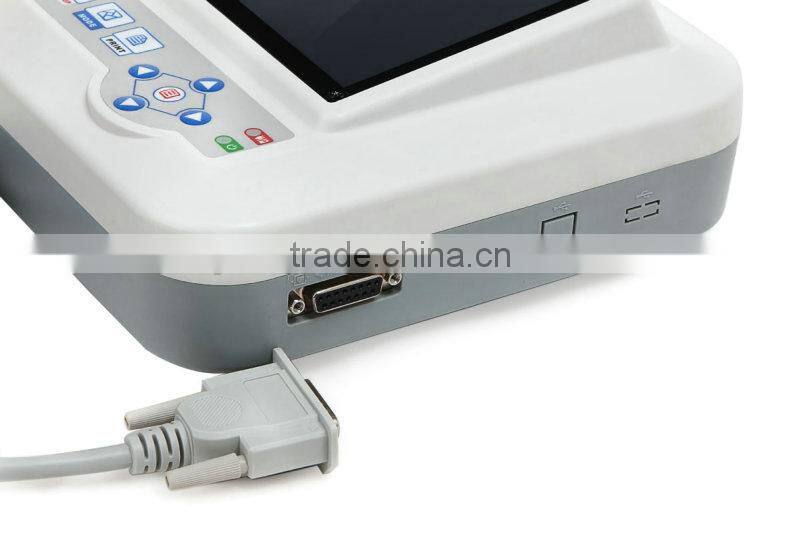

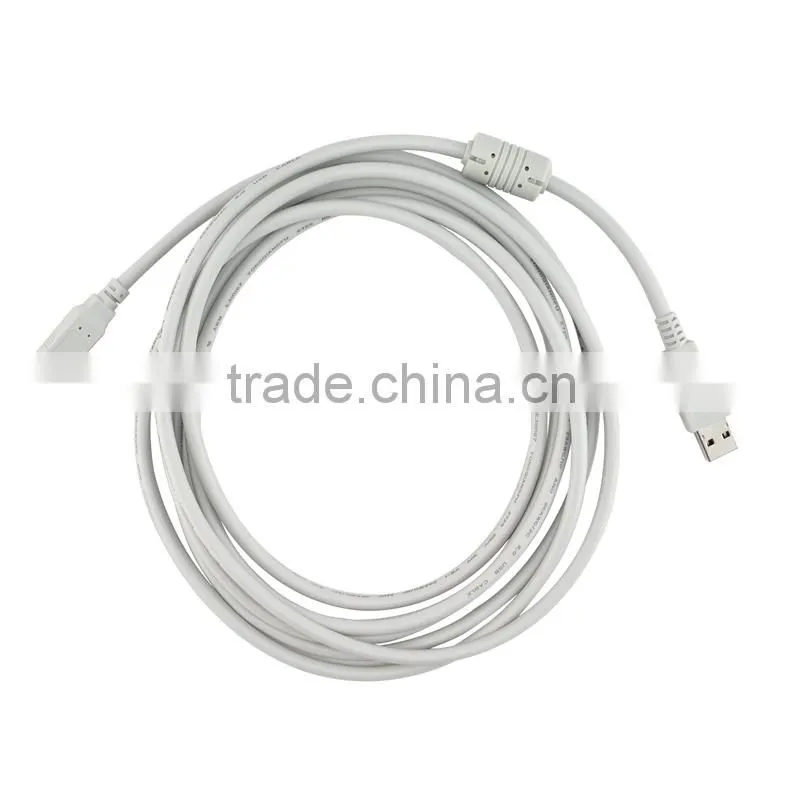

- USB and LAN socket
- Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
- Auto-measurement, auto-analysis, and auto-interpretation
- With software kit,can upload the data to PC for further analysis
Specification:
Safety standard | IEC class I, type CF |

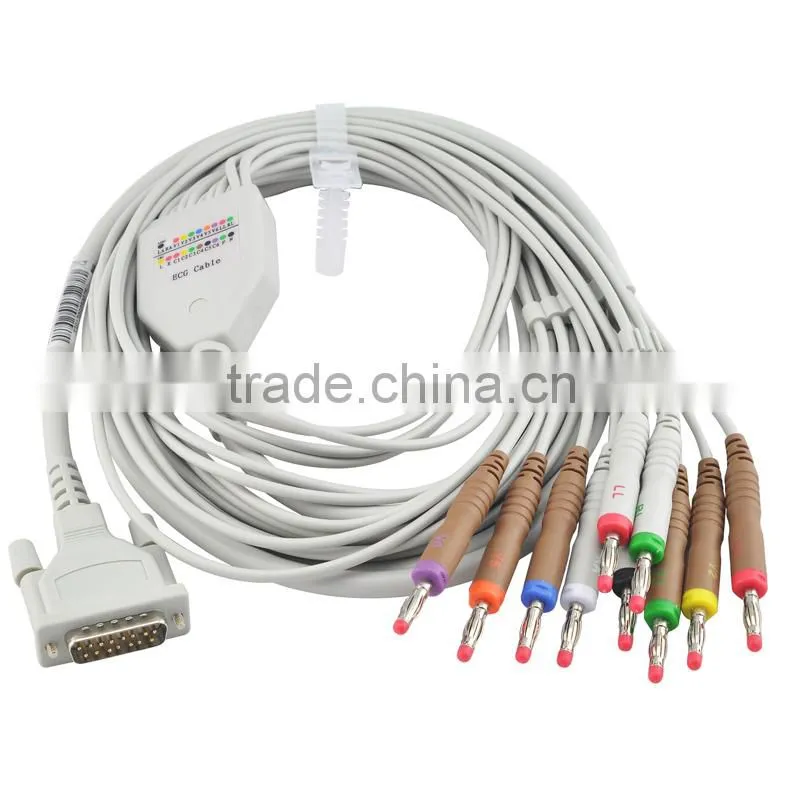

Lead | Standard 12 leads |
Patient leak current | <10uA |
Input impedance | >=50M |
Frequency response | 0.05~150Hz(-3dB) |
Time constant | >3.2s |
CMRR | >100dB |
Dimension of recording paper | 80mmx20m |
Paper speed | 25mm/s, 50mm/s |
Sensitivity choice | 5, 10, 20mm/mV |
Measurement parameters | HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) |
Product safety type | Class I, CF. Defibrillation and pacing protection |
Enduring polarization voltage | 300mv |
Noise level | <15uVp-p |
Dimension | 130mm x 74mm x 25mm (WxLxH) |
Net weight | 2.5kg |
