Color LCD Display 12-lead ECG 3-Channel Portable ECG EKG
US$ 100 - 559
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other
Brand Name:
Carejoy
Model Number:
EKG-903B
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Color LCD 3-Channel Portable ECG Machine on SaleUS$ 100 - 559MOQ: 1 Set -
Color LCD 12-lead ECG 3-Channel Portable ECG Machine With Low PriceUS$ 100 - 559MOQ: 1 Set
-
CE& ISO Approved Digital 6-channel Touch Screen Color ElectrocardiographUS$ 499 - 529MOQ: 1 Unit
-
CE & FDA Approved Digital 6-channel ECG EKG Machine With Low PriceUS$ 499 - 539MOQ: 1 Unit
-
Digital 6-channel Touch Screen Color ECG EKG Machine With Software on SaleUS$ 499 - 569MOQ: 1 Unit
Type
Other
Brand Name
Carejoy
Model Number
EKG-903B
Place of Origin
Beijing, China

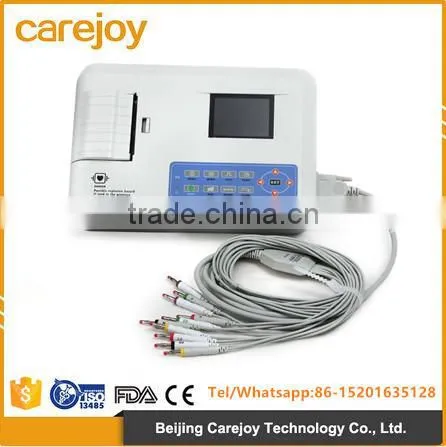

Color LCD display 12-lead ECG 3-Channel portable ECG EKG
Product Description
TFT Color LCD, high resolution of 480*270 and design of more wider screen in
proportion of 10:9.
Soft keyboard control, more convenient for operation
Simultaneous 12 leads display
Auto-analysis and auto-interpretation.
Provide more than 10 printing memory.
More than 1000 cases in internal memory
Can print 90 minutes and print out 150 pcs ECG continually
Support 90 Chinese, English, Spanish and Turkish operating interface.
Option:ECG-Sync software, connect with the PC by USB connector to form
a ECG workstation.
a ECG workstation.
Specification:
Safety Type |
class I, type CF applied part, which has defibrillation-proof applied part
|
|
Lead
|
Standard 12 Leads |
|
Input way
|
Floating and defibrilation protection |
|
Patient leak current
|
<10μA
|
|
Sampling rate
|
1000Hz
|
|
A/D conversion
|
12bit
|
|
Frequency response
|
0.05Hz~150Hz (-3dB, +0.4dB)
|
|
CMRR
|
>60dB, >100dB(Add filter)
|
|
Enduring polarization voltage
|
±300mV |
|
Noise level
|
≤15μVp-p
|
|
EMG interference filter
|
25/35Hz(-3dB)
|
|
AC filter
|
50Hz/60Hz (≥20dB)
|
|
Recording way
|
Thermal printing system(32spots/mm)
|
|
Recording paper
|
80mm(W)x20m(L)Sensitivity
|
|
Sensitivity
|
2.5mm/mV , 5mm/mV, 10mm/mV, 20mm/mV
40mm/mV, Auto
|
|
Paper speed
|
Auto recording: 25mm/s, 50mm/s
Rhythm-recording: 25mm/s,50mm/s
Manual-record: 5mm/s,6.25mm/s,10mm/s
12.5mm/s, 25mm/s, 50mm/s
|
|
AC
|
110V-220V, 50Hz/60Hz
|
|
DC
|
7.4V, 3700mAh rechargeable lithium polymer
battery
|
|
Dimension
|
315(L)x215(W)x77(H)mm
|
|
Net Weight
|
3.25Kg
|
Detailed Images
Company Information
Our Services
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
