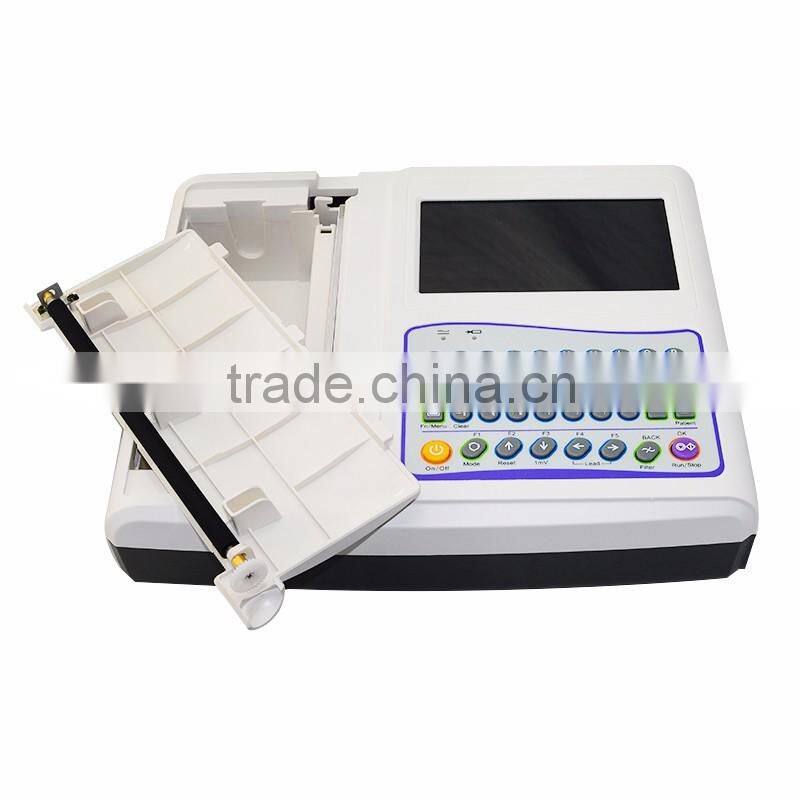

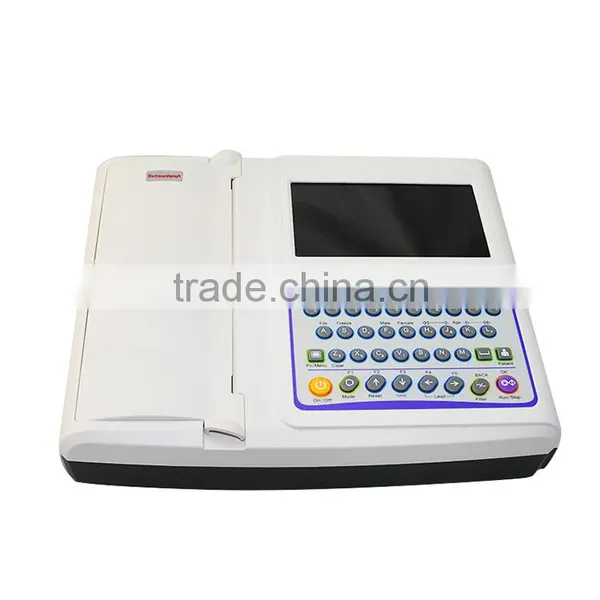

CE &ISO13485 OEM 18 months warranty 7 inch color LCD Digital 12-channel Electrocardiograph
Details

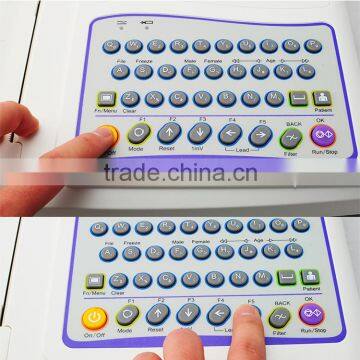

- Alphanumeric keyboard to operate, very convenient to use

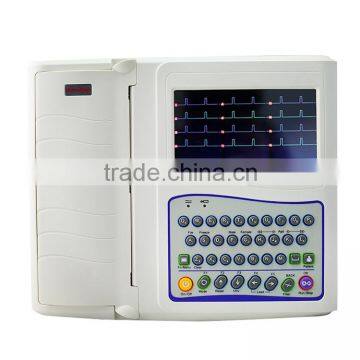

- 800x480 graphic 7 inch color LCD to simultaneously display ECG information
- Portable and delicate design, easy to operate
- Accurate pulse pace identification function
- High accuracy digital filter, automatic baseline adjustment
- Working modes: Manual, Automatic, Arrythmia Analysis, Storage
- 215mm, 12 channel format recording, excellent automatic interpretation
- 250 patient cases storage ( SD card storage is optional )
- Detailed patient information record
- Adapt to 110-230V,50/60Hz power supply.
- Built-in rechargeable Li-ion battery continuously working for about 4 hours

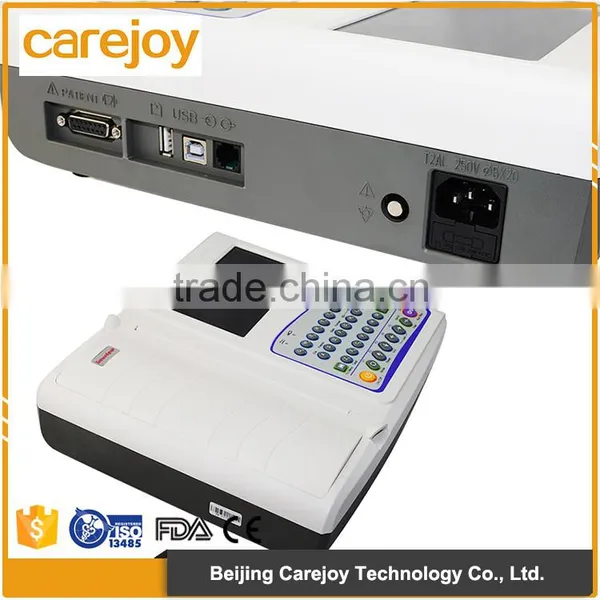

- USB / Rs232 communication port support USB storage, laser printer printing and PC ECG software ( Optional )
| Lead | Standard 12 leads |
| Lead acquisition | 12 bit/1000Hz(synchronously 12 leads) |
| Work mode | Manual/Auto/R-R Analysis |
| Filter | AC Filter: 50Hz/60Hz |
| EMG Filter: 25Hz/45Hz | |
| Anti-Drift Filter:0.15 Hz (Adaptive) | |
| CMMR | ≥120dB (with AC Filter) |
| Input circuit | Floating; Protection circuit against |
| Defibrillator effect | |
| Input impedance | ≥50ΜΩ |
| Input circuit current | ≤0.05 μA |
| Patient current leakage | <10 μA |
| Calibrating voltage | 1mV±2% |
| Voltage tolerance | ≥±500mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05~160Hz(-3db) |
| Noise level | <15μVp-p |
| Inter-channel interference | ≤0.5mm |
| Sensitivity | Auto,2.5,5,10,20,40mm/mV(±3%) |
| Recording mode | 3ch+++, 6ch, 6ch+, 12ch |
| Default Man.Mode is 3ch+++ format | |
| Default Auto.Mode is 12ch format | |
| Paper speed | 6.25,12.5,25,50mm/s(±3%) |
| Paper | 215mm x 20m roll / 210x140mm Z-fold paper |
| Working environment | Temperature5-40℃;Humidity 25-95% |
| Power supply | AC 110-230v(±10%), 50/60Hz(±1Hz), 40VA |
| DC Built-in rechargeable battery,14.4V (4400mAh) | |
| Dimension/Weight | 347mm x 293mm x 83mm, 4.8kgs |

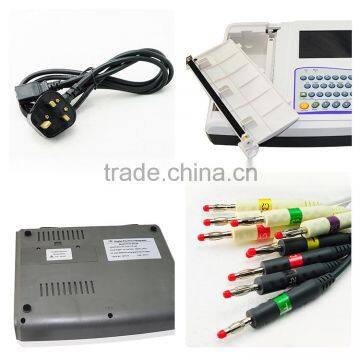

Packing List:
Electrocardiograph: 1each
Banana type ECG cable: 1each
Chest electrodes: 6each
Limb electrodes: 4each
Power cable: 1each
Grounding cable: 1each
Fuse: 2each
Paper roll: 1each
Manual: 1each
Click the link for more styles:
https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
