ECG EKG/ecg Machine

ECG EKG/ecg Machine thumbnail-1
ECG EKG/ecg Machine thumbnail-2
ECG EKG/ecg Machine thumbnail-3
ECG EKG/ecg Machine thumbnail-4
ECG EKG/ecg Machine thumbnail-5
ECG EKG/ecg Machine thumbnail-6
ECG EKG/ecg Machine photo-1
ECG EKG/ecg Machine photo-2

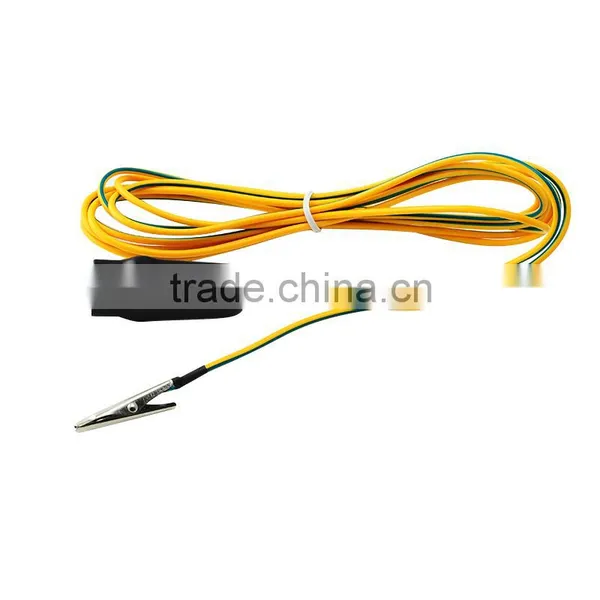

ECG EKG/ecg Machine photo-3
ECG EKG/ecg Machine photo-4
ECG EKG/ecg Machine photo-5
ECG EKG/ecg Machine photo-6
US$ 199 - 329 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
First-Aid Devices
Model Number:
EKG-901
Place of Origin:
Beijing, China
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type First-Aid Devices
Model Number EKG-901
Place of Origin Beijing, China

Features:

  • One channel digital ECG machine with interpretation
  • Simultaneous acquisition of 12-lead ECG signal
  • Manual/Auto/Arrhythmia analysis modes
  • Real time ECG, 20 patients cases
  • Multiple printing modes
  • 320x240 graphic, 3.8 inch LCD
  • High resolution thermal printing system
  • High resolution digital filter
  • Built-in USB or RS232, optional PC-ECG software
  • AC/DC power, built-in rechargeable Ni-MH battery
  • Light weight with handle, convenient for use

Specification:



Safety standard

IEC60601-1 class I, type CF

Lead

Standard 12 Leads, Lead change automatically

Resolution

 12 bit / 1000Hz

Operation mode

Manual/Auto/Analysis modes

Filter

AC, EMG filter

Drift filter

Anti-drift system

Input circuit

Floating; Protection against Defibrillator effect

CMRR

>100dB (with filter)

Input circuit current

<0.1μA

Input impedance

≥50ΜΩ

Calibrating voltage

1mV±3%

Frequency response

0.05Hz~160Hz (IEC)

Time constant

>3.2seconds

Noise level

≤15Vp-p

Threshold

≤20μV

Sensitivity

Auto 2.5, 5, 10, 20, 40mm/mV

Recording system

High resolution thermal printer

Paper speed

25, 50mm/s±3%

Recording paper

50mmx20m, roll/fold paper

Power supply

AC: 220V / 110V, 50/60Hz DC: 14.4V rechargeable NI-Ion battery (1500mAh)

LCD display

320x240 graphic, 3.8 inch LCD

Dimensions

285×265×72mm

Weight

2.5kg

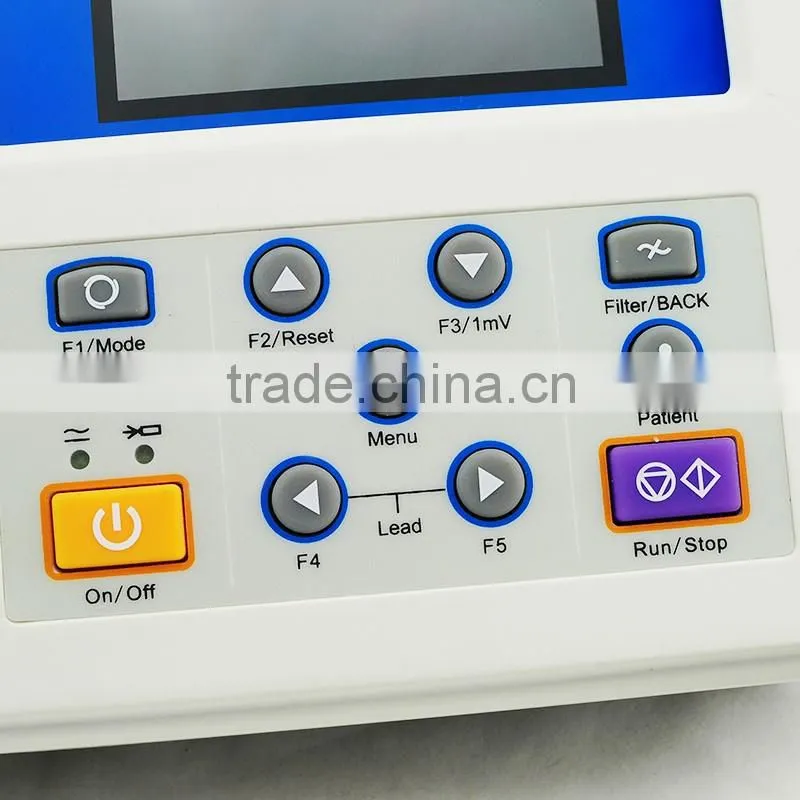

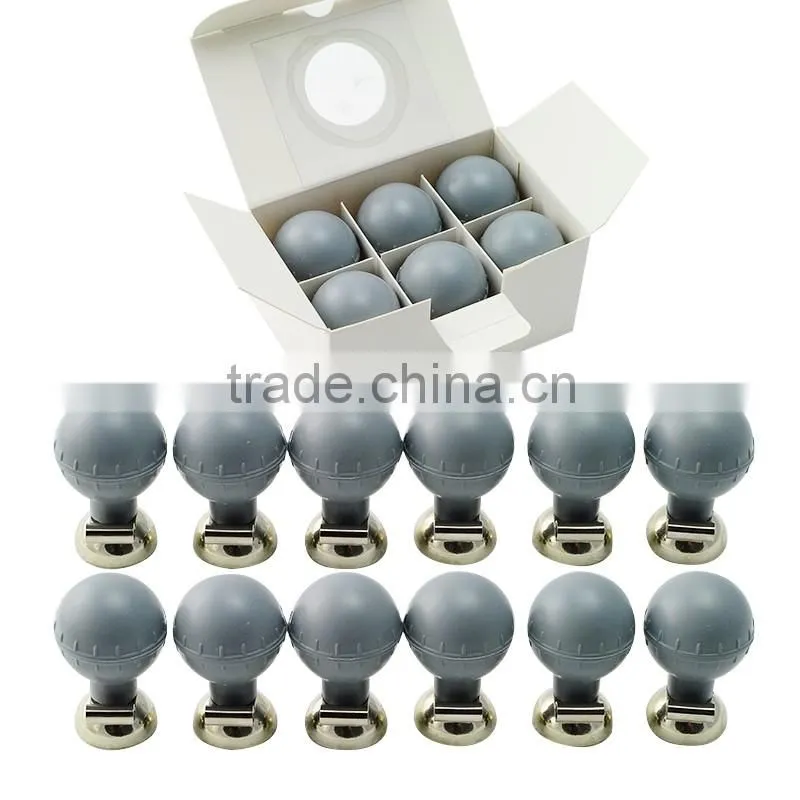

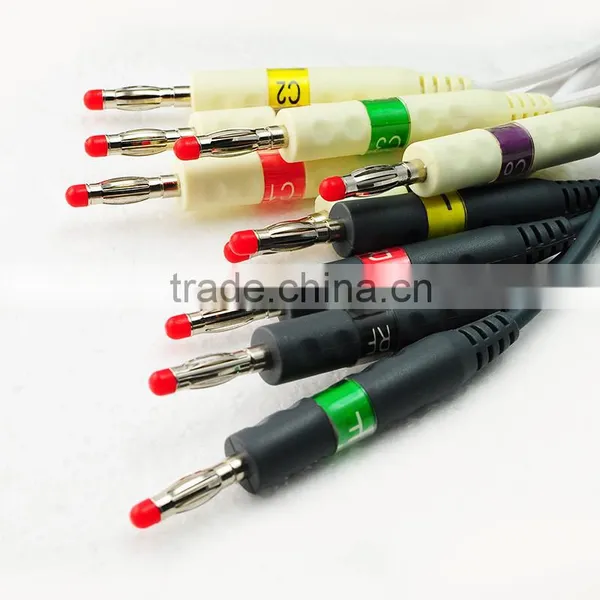

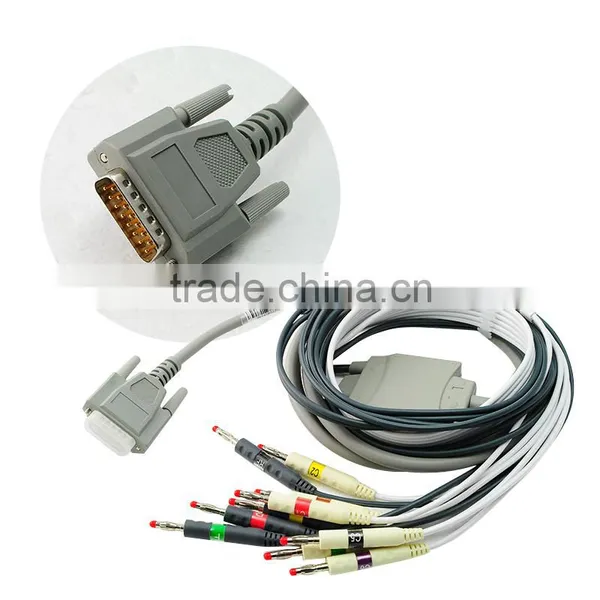

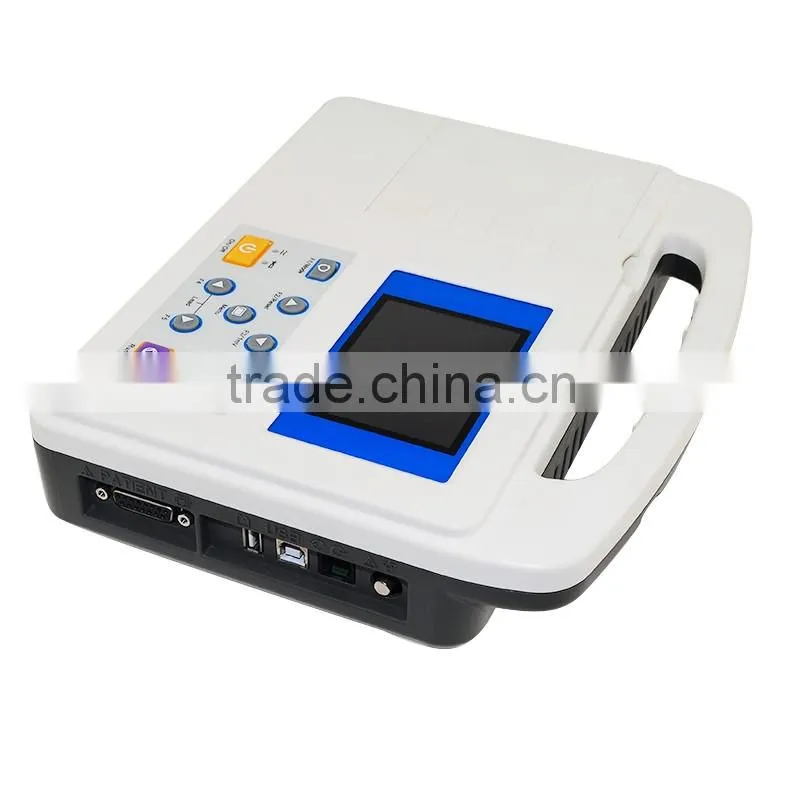

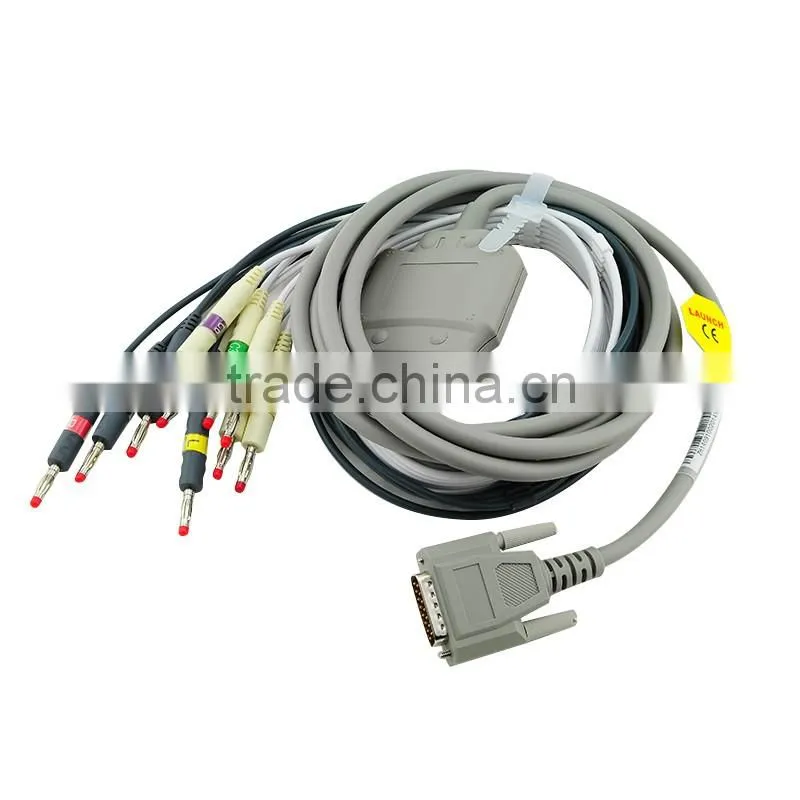

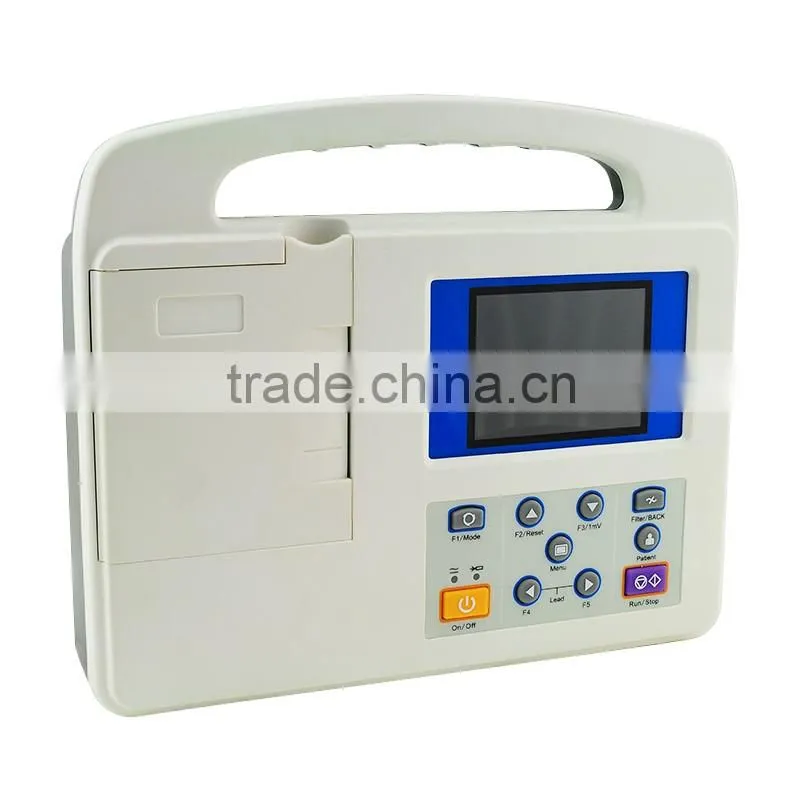

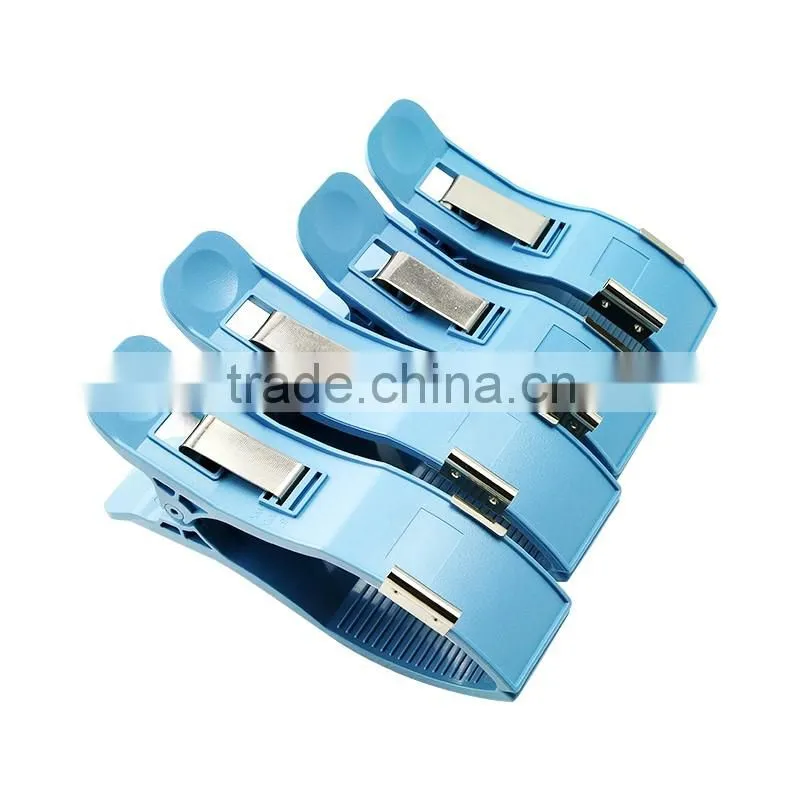

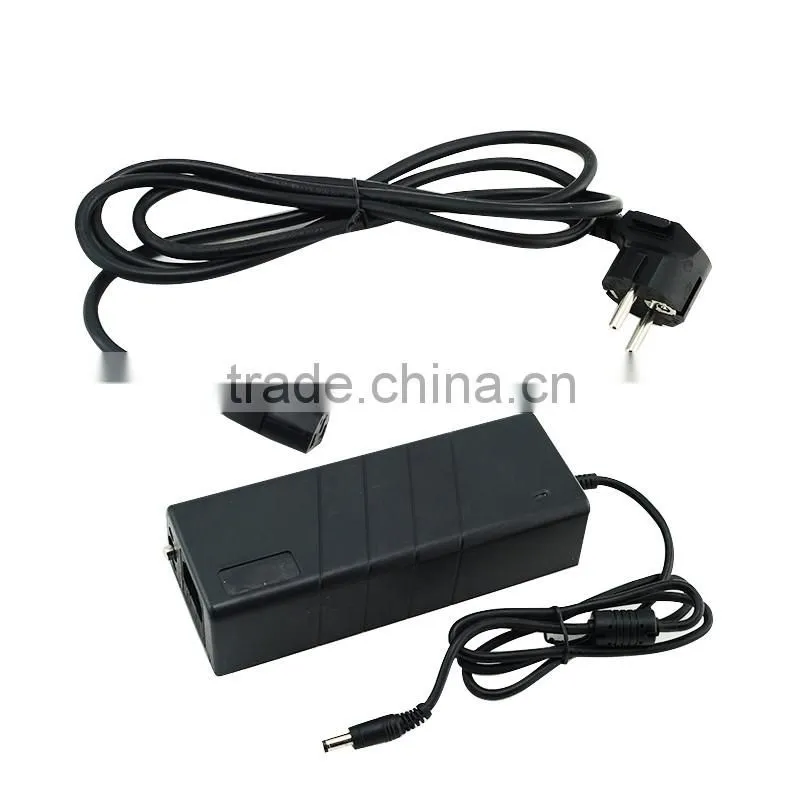

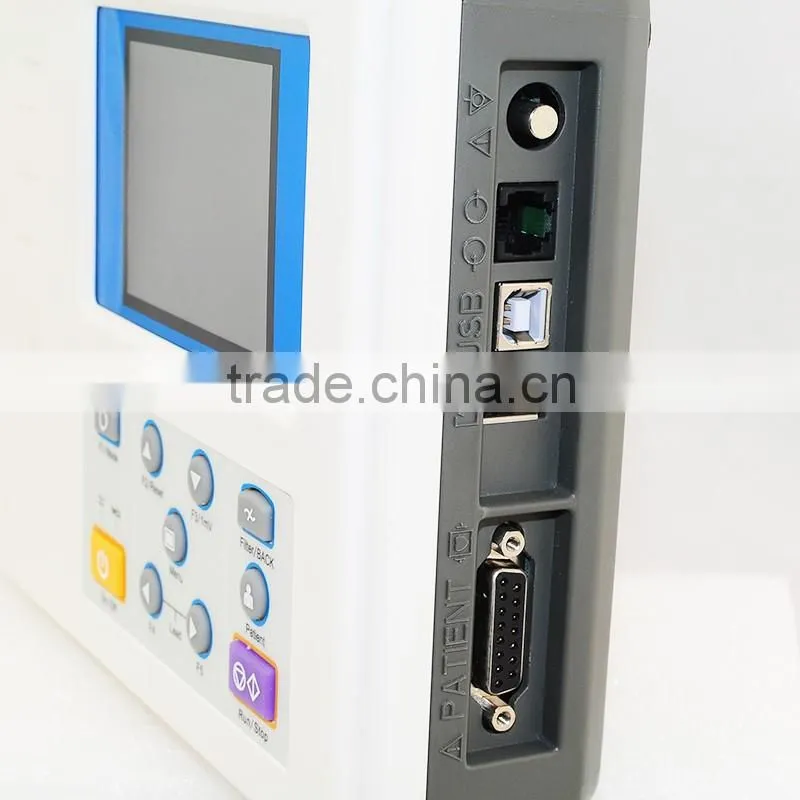

Detailed Images

 ECG EKG/ecg machineECG EKG/ecg machineECG EKG/ecg machineECG EKG/ecg machineECG EKG/ecg machineECG EKG/ecg machineECG EKG/ecg machineECG EKG/ecg machine



















































ECG EKG/ecg machine
