24 Hours Holter Monitor Medical Cardiac Heart Monitor 3/12 Channel ECG Holter Monitor
Holter Monitor
Version: CardioScape Holter Monitor
Functions & Features for Holter Monitor:
QRS Templates
Apply Demix technology, ensures the accuracy of QRS templates, includes N (Normal), V (Ventricular Ectopy), S (SVE), U (Unknown), P (Pacemaker), A (Artifact). All the templates can be combined or separated as individual beats. beats can be superimposed. Weak signal can be identified such as P wave.
-
Arrhythmia Analysis
VE, SVE, aberrant beats, V-Tach, V-Pair, V-Bigeminy, Tri-geminy etc. -
HRT (VE Chaos) Analysis
HRT is the most powerful ECG-related risk predictor for assessing the death risk following myocardial infarction. The predictive value is comparable with that of the LVEF. -
Pacemaker Analysis
Unique pacemaker analysis is suitable for various models i.e. AAI, VVI, DDD, DDR pacemakers. -
HRV (Heart Rate Variability) Analysis
Time domain and Spectral domain HRV analysis, superlower HRV analysis -
Atrial Fibrillation and Atrial Flutter Analysis
Atrial Fibrillation is very important for the cardiologist concern. Holter ECG is an excellent test to detect transient A-Fib. -
OSAS (Obstructive Sleep Apnea Syndrome) Analysis
Using Holter test to detect the OSAS earlier and cost-saving. -
ST Analysis
ST analysis trends, form and support report, identify ischemia location.
Holter Monitor Model: CS-3CL
Features for Holter Monitor:
- 3-lead Color LCD Holter recorder
- Compact size, light weight
- Fully programmable, high Fidelity
- Lower power consumption
- Fast data transfer
- Pacemaker detection
Specification for Holter Monitor:
- Channel: 3 digital recording channels for 12-lead
- Sample rate: 1000Hz
- Resolution: 12 bit sampling
- Frequency response: 0.05-60Hz
- Recording time: 24 hours, full disclosure, no data compression, 12-lead ECG
- Storage: 2G built-in flash memory
- LCD display: ECG waveform and lead number
- Dimension: 80mmx45mmx18mm
- Weight: 75 grams (battery not included)

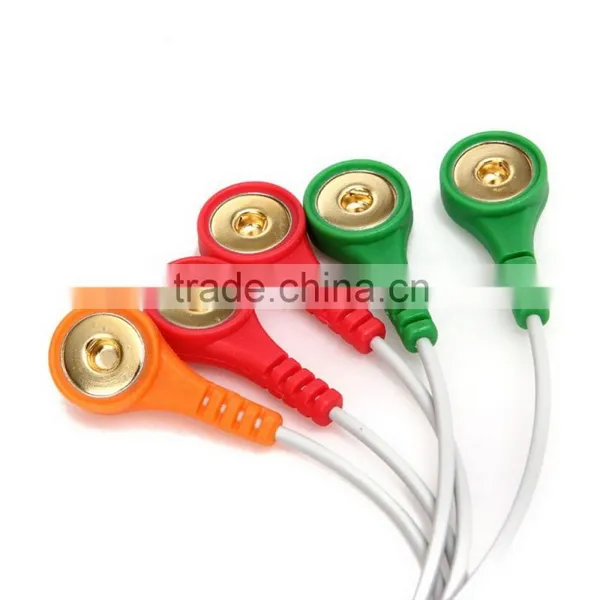

- Lead: 5 wire patient cable (I, II, III, aVR, aVL, aVF, V1~V6)
- Power: 2 AA size battery
Safety Mode |
IEC60601-1 class I, type CF |
Lead selection |
Automatic and Manual |
Operation mode |
Automatic and Manual |
Input circuit |
Floating |
Calibrating voltage |
1mV ±5% |
Input current |
<100nA |
CMRR |
>103dB |
A/D |
12bit |
Frequency response |
0.05Hz-150Hz |
Filter |
AC: 50/60Hz EMG: 35-4Hz |
Skin voltage tolerance |
±300mV |
Sensitivity setting |
5, 10, 20mm/mV, conversion deviation≤5% |
Noisy level |
≤15Vp-p |
Display |
LCD 160x96, visual size: 34x60 |
Recording system |
Thermal-array printing |
Noise level |
≤15μVp-p |
Power supply |
AC: 220V+-10% DC: 7.4 Lithium battery |
Size |
190x90x40mm |
Weight |
800g |
- Hand-held single channel digital ECG machine with measurement report
- Automatic and manual operation modes
- LCD display ECG wave
- AC/DC power, built-in rechargeable Ni-MH battery
- Mini size, hand-held, portable, convenient for doctors’ use anywhere
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
Beijing Carejoy Technology Co., Ltd. (Carejoy) is a professional manufacturer & distributor for high-tech medical equipments.
Carejoy aims to provide the cost-effective, reliable performance products. By collaborating with famous universities and organizations, the company has designed and produced several types medical equipments in China market. The quality management system of Carejoy is ISO13485 certified. Our products are also CE certified by MedCert Germany CE 0482. Carejoy has a considerable market share in China domestic market and a growing increase in international market.
Carejoy aims to build good business relationships with more international distributors and customers sincerely. Carejoy assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices and rapid & effective customer service.
