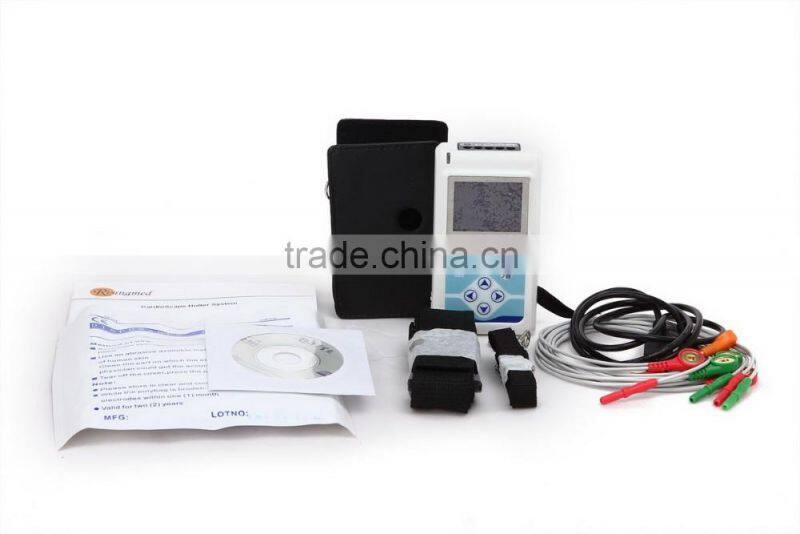

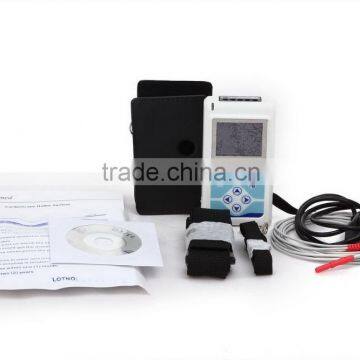

Medical Equipment Cardiac Heart Monitor 3/12 Channel ECG Holter Price with Free Software
Holter Monitor
Version: CardioScape Holter Monitor
Functions & Features for Holter Monitor:
QRS Templates
Apply Demix technology, ensures the accuracy of QRS templates, includes N (Normal), V (Ventricular Ectopy), S (SVE), U (Unknown), P (Pacemaker), A (Artifact). All the templates can be combined or separated as individual beats. beats can be superimposed. Weak signal can be identified such as P wave.
- Arrhythmia Analysis
VE, SVE, aberrant beats, V-Tach, V-Pair, V-Bigeminy, Tri-geminy etc. - HRT (VE Chaos) Analysis
HRT is the most powerful ECG-related risk predictor for assessing the death risk following myocardial infarction. The predictive value is comparable with that of the LVEF. - Pacemaker Analysis
Unique pacemaker analysis is suitable for various models i.e. AAI, VVI, DDD, DDR pacemakers. - HRV (Heart Rate Variability) Analysis
Time domain and Spectral domain HRV analysis, superlower HRV analysis - Atrial Fibrillation and Atrial Flutter Analysis
Atrial Fibrillation is very important for the cardiologist concern. Holter ECG is an excellent test to detect transient A-Fib. - OSAS (Obstructive Sleep Apnea Syndrome) Analysis
Using Holter test to detect the OSAS earlier and cost-saving. - ST Analysis
ST analysis trends, form and support report, identify ischemia location.
Holter Monitor Model: CS-3CL
Features for Holter Monitor:
- 3-lead Color LCD Holter recorder
- Compact size, light weight
- Fully programmable, high Fidelity
- Lower power consumption
- Fast data transfer
- Pacemaker detection
Specification for Holter Monitor:
- Channel: 3 digital recording channels for 12-lead
- Sample rate: 1000Hz
- Resolution: 12 bit sampling
- Frequency response: 0.05-60Hz
- Recording time: 24 hours, full disclosure, no data compression, 12-lead ECG
- Storage: 2G built-in flash memory
- LCD display: ECG waveform and lead number
- Dimension: 80mmx45mmx18mm
- Weight: 75 grams (battery not included)

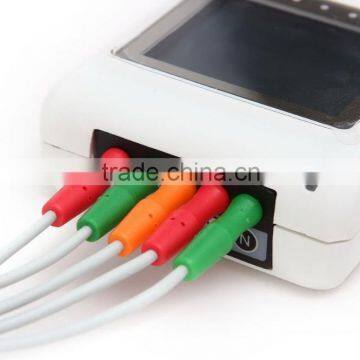

- Lead: 5 wire patient cable (I, II, III, aVR, aVL, aVF, V1~V6)
- Power: 2 AA size battery
Safety Mode | IEC60601-1 class I, type CF |
Lead selection | Automatic and Manual |
Operation mode | Automatic and Manual |
Input circuit | Floating |
Calibrating voltage | 1mV ±5% |
Input current | <100nA |
CMRR | >103dB |
A/D | 12bit |
Frequency response | 0.05Hz-150Hz |
Filter | AC: 50/60Hz EMG: 35-4Hz |
Skin voltage tolerance | ±300mV |
Sensitivity setting | 5, 10, 20mm/mV, conversion deviation≤5% |
Noisy level | ≤15Vp-p |
Display | LCD 160x96, visual size: 34x60 |
Recording system | Thermal-array printing |
Noise level | ≤15μVp-p |
Power supply | AC: 220V+-10% DC: 7.4 Lithium battery |
Size | 190x90x40mm |
Weight | 800g |
- Hand-held single channel digital ECG machine with measurement report
- Automatic and manual operation modes
- LCD display ECG wave
- AC/DC power, built-in rechargeable Ni-MH battery
- Mini size, hand-held, portable, convenient for doctors’ use anywhere
Package: Standard export carton.
Payment & Delivery:
T/T, West Union & Paypal.
Shipping: DHL, UPS or TNT etc, arrive in 3-5 working days.
Air shipping & sea shipping are also available.
Warranty: 18 months upon delivery.
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
