CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope

CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope thumbnail-1
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope thumbnail-2
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope thumbnail-3
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope thumbnail-4
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope thumbnail-5
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope thumbnail-6
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope photo-1
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope photo-2
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope photo-3
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope photo-4
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope photo-5
CE Approved 3 Channel 24-hour LCD ECG Holter Recorder System With Free Software-Cardioscope photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Brandnew
Place of Origin:
Beijing, China
Model Number:
Cardioscape CS-3CL
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Brandnew
Place of Origin Beijing, China
Model Number Cardioscape CS-3CL
Product Description



Description:



1.Holter Monitor System

   Version: CardioScape Holter Monitor Software

  Functions & Features for Holter Monitor System:

  •  QRS Templates

              Apply Demix technology, ensures the accuracy of QRS templates, includes N (Normal), V (Ventricular Ectopy), S (SVE), U              (Unknown), P (Pacemaker), A (Artifact). All the templates can be combined or separated as individual beats. beats can                  be superimposed. Weak signal can be identified such as P wave.

  • Arrhythmia Analysis
    VE, SVE, aberrant beats, V-Tach, V-Pair, V-Bigeminy, Tri-geminy etc.
  • HRT (VE Chaos) Analysis
    HRT is the most powerful ECG-related risk predictor for assessing the death risk following myocardial infarction. The predictive value is comparable with that of the LVEF.
  • Pacemaker Analysis
    Unique pacemaker analysis is suitable for various models i.e. AAI, VVI, DDD, DDR pacemakers.
  • HRV (Heart Rate Variability) Analysis
    Time domain and Spectral domain HRV analysis, superlower HRV analysis
  • Atrial Fibrillation and Atrial Flutter Analysis
    Atrial Fibrillation is very important for the cardiologist concern. Holter ECG is an excellent test to detect transient A-Fib.
  • OSAS (Obstructive Sleep Apnea Syndrome) Analysis
    Using Holter test to detect the OSAS earlier and cost-saving.
  • ST Analysis
    ST analysis trends, form and support report, identify ischemia location.

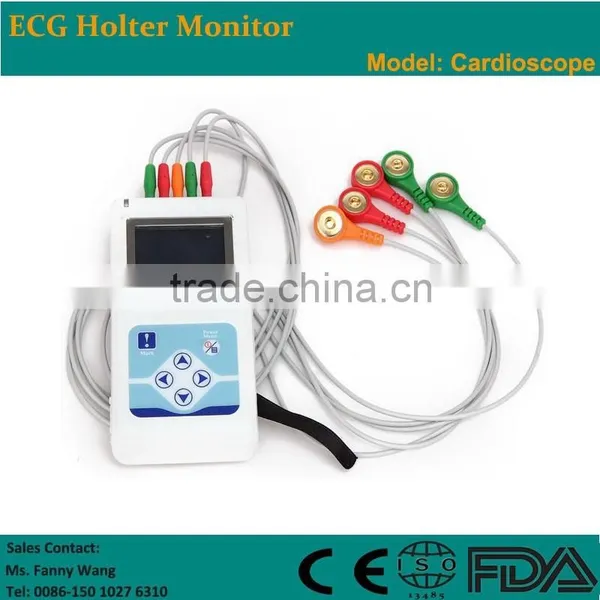

2. Holter Monitor Model: CS-3CL

Features for Holter Monitor:

  • 3-Channel Color LCD Holter recorder
  • Compact size, light weight
  • Fully programmable, high Fidelity
  • Lower power consumption
  • Fast data transfer
  • Pacemaker detection

Specification for Holter Monitor:

  • Channel: 3 digital recording channels for 12-lead
  • Sample rate: 1000Hz
  • Resolution: 12 bit sampling
  • Frequency response: 0.05-60Hz
  • Recording time: 24 hours, full disclosure, no data compression, 12-lead ECG
  • Storage: 2G built-in flash memory
  • LCD display: ECG waveform and lead number

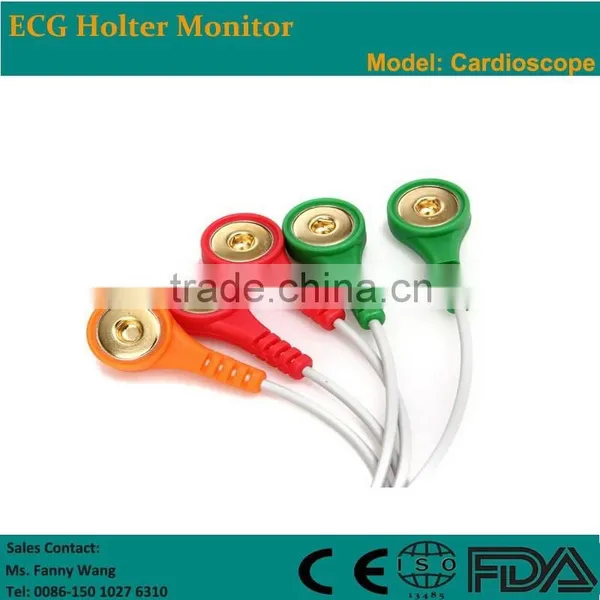

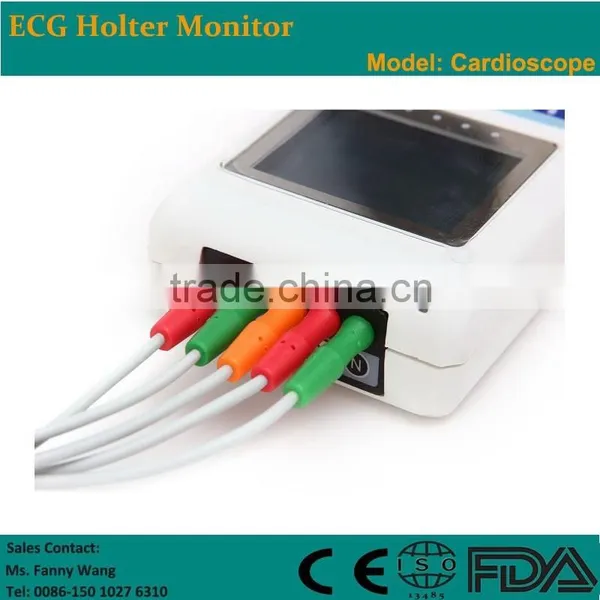

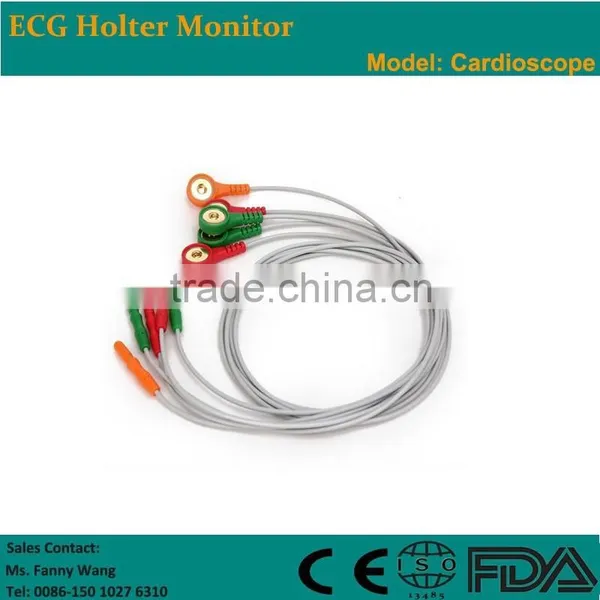

  • Lead:  5 wire patient cable (I, II, III, aVR, aVL, aVF, V1~V6)
  • Power: 2 AA size battery

Safety Mode

IEC60601-1 class I, type CF

Lead selection

Automatic and Manual

Operation mode

Automatic and Manual

Input circuit

Floating

Calibrating voltage

1mV ±5%

Input current

<100nA

CMRR

>103dB

A/D

12bit

Frequency response

0.05Hz-150Hz

Filter

AC: 50/60Hz      EMG:  35-4Hz

Skin voltage tolerance

±300mV

Sensitivity setting

5, 10, 20mm/mV, conversion deviation≤5%

Noisy level

≤15Vp-p

Display

LCD 160x96, visual size: 34x60

Recording system

Thermal-array printing

Noise level

≤15μVp-p







- Hand-held single channel digital ECG machine with measurement report
- Automatic and manual operation modes
- LCD display ECG wave
- Mini size, hand-held, portable, convenient for doctors’ use anywhere


Packaging & Shipping



Package:  We offer the standard Export Carton or wooden case for shipment, and we can also accept special packing as per client's request.



Per package dimension: 1KGS , 20*10*5cm



Shipping: Our company offer the shipment via Express(DHL, TNT, UPS, FEDEX), Postal Service, by sea or by air. We will help select the most appropriate shipment method, based on full consideration of cost, speed and customer's special request.



Delivery time: within 5-10 days after confirmation the payment.





Our Services



Warranty: 18 months after delivery date, and spare parts  are available for ten years.



Delivery time: within 5-10 days after confirming the payment.



Package: Standard Export Carton with foam.



Training: We offer the on-line or on-spot training, upon the client's request.



Our Goal: Offer my esteemed clients the best qualified products and service, far beyond your expectation.





Company Information



Our company has been a professional manufacturer & distributor for high-tech medical equipments since 2001.

We aim to provide the cost-effective, reliable performance products. By collaborating with famous universities and organizations, the company has designed and produced several types medical equipments in China market. The quality management system of Risingmed is ISO13485 certified. Our products are also CE certified by MedCert Germany CE 0482. We have won a considerable market share in China domestic market and a growing increase in international market.

We aim to build good business relationships with more international distributors and customers sincerely. Risingmed assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices and rapid & effective customer service.

We have many medical product categaries up to now:



Pulse Oximeter, Ultrasound Scanner, Patient Monitor, ECG, Holter, Fetal Doppler, Fetal Monitor, Endoscopes,  Operation lights, Operation tables,etc.
