12 Channels ECG ECG Holter Monitor
--Ambulatory ECG Holter System Software: CardioScape Holter
Model: CS-12CL
Description:
Holter Analyzer
Version: CardioScape Holter
Functions & Features:
-
QRS Templates
Apply Demix technology, ensures the accuracy of QRS templates, includes N (Normal), V (Ventricular Ectopy), S (SVE), U (Unknown), P (Pacemaker), A (Artifact). All the templates can be combined or separated as individual beats. beats can be superimposed. Weak signal can be identified such as P wave.Arrhythmia Analysis
VE, SVE, aberrant beats, V-Tach, V-Pair, V-Bigeminy, Tri-geminy etc.
- HRT (VE Chaos) Analysis
HRT is the most powerful ECG-related risk predictor for assessing the death risk following myocardial infarction. The predictive value is comparable with that of the LVEF. - Pacemaker Analysis
Unique pacemaker analysis is suitable for various models i.e. AAI, VVI, DDD, DDR pacemakers. - HRV (Heart Rate Variability) Analysis
Time domain and Spectral domain HRV analysis, superlower HRV analysis - Atrial Fibrillation and Atrial Flutter Analysis
Atrial Fibrillation is very important for the cardiologist concern. Holter ECG is an excellent test to detect transient A-Fib. - OSAS (Obstructive Sleep Apnea Syndrome) Analysis
Using Holter test to detect the OSAS earlier and cost-saving. - ST Analysis
ST analysis trends, form and support report, identify ischemia location
Holter Recorders
Model: CS-12CL
Features:

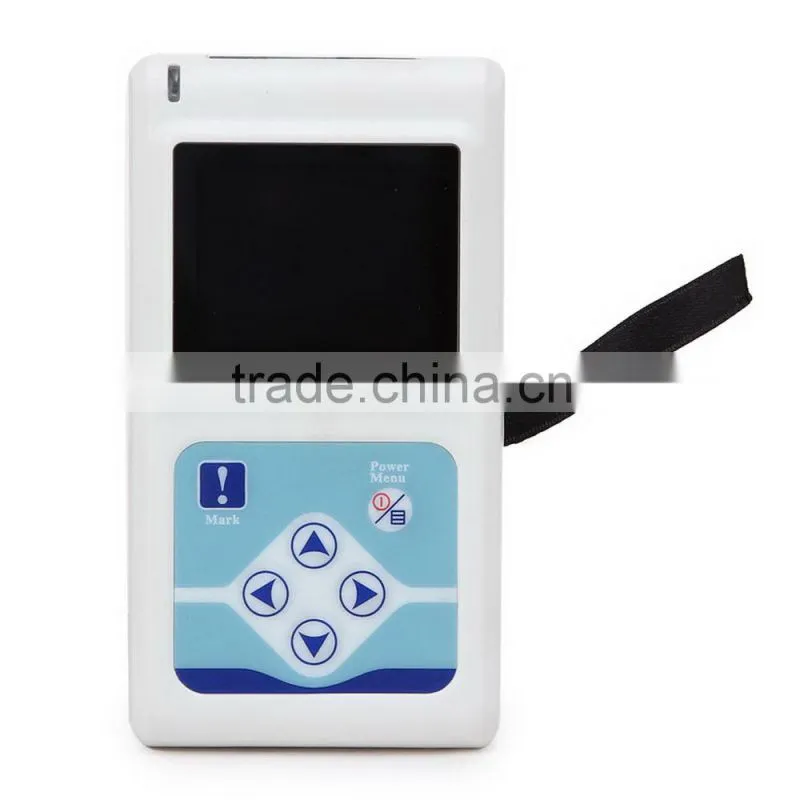

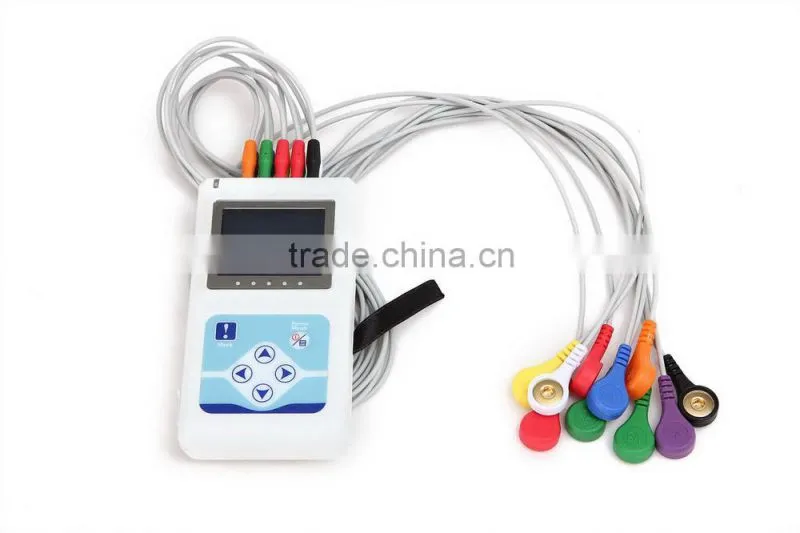

12-lead Color LCD Holter recorder
Compact size, light weight
Fully programmable, high Fidelity
Lower power consumption
Fast data transfer
Pacemaker detection
Specification:
- Channel: 10 digital recording channels for 12-lead
- Sample rate: 1000Hz
- Resolution: 12 bit sampling
- Frequency response: 0.05-60Hz
- Recording time: 24 hours, full disclosure, no data compression, 12-lead ECG
- Storage: 2G built-in flash memory
- LCD display: ECG waveform and lead number
- Dimension: 80mmx45mmx18mm
- Weight: 75 grams (battery not included)

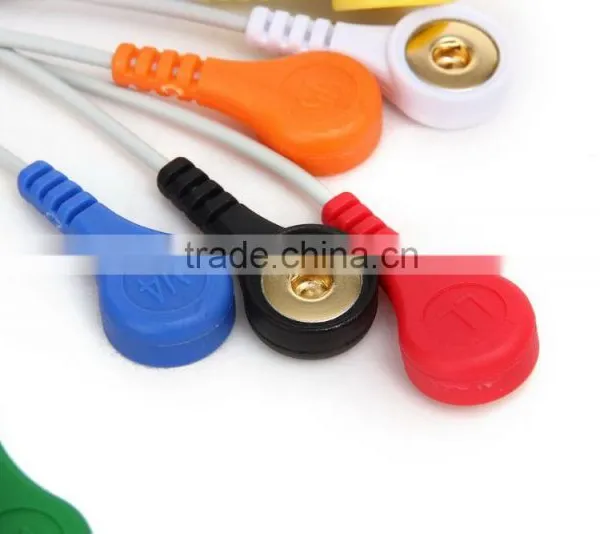

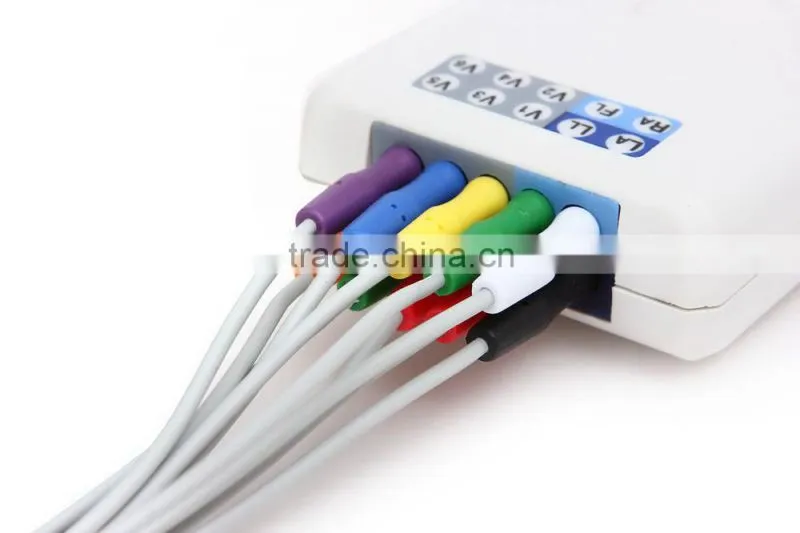

- Lead: 10 wire patient cable (I, II, III, aVR, aVL, aVF, V1~V6)

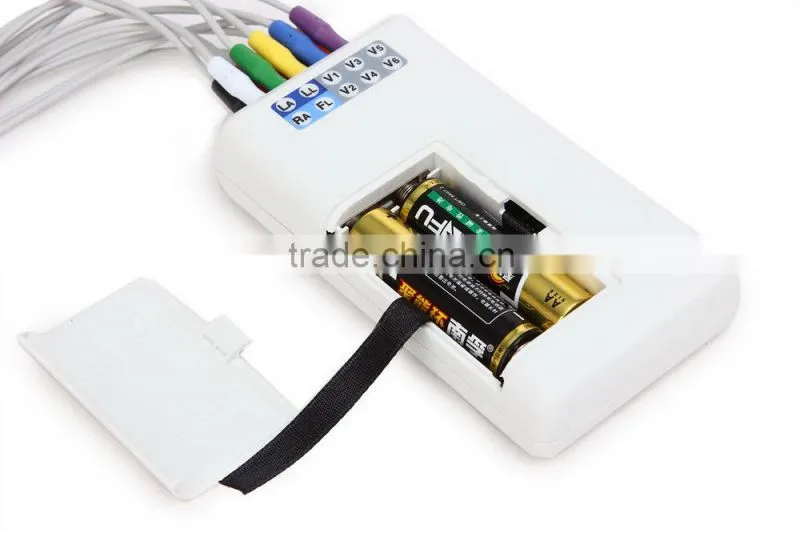

- Power: 2 AA size battery
Features:
Specification:
Safety Mode |
IEC60601-1 class I, type CF |
Lead selection |
Automatic and Manual |
Operation mode |
Automatic and Manual |
Input circuit |
Floating |
Calibrating voltage |
1mV ±5% |
Input current |
<100nA |
CMRR |
>103dB |
A/D |
12bit |
Frequency response |
0.05Hz-150Hz |
Filter |
AC: 50/60Hz EMG: 35-4Hz |
Skin voltage tolerance |
±300mV |
Sensitivity setting |
5, 10, 20mm/mV, conversion deviation≤5% |
Noisy level |
≤15Vp-p |
Display |
LCD 160x96, visual size: 34x60 |
Recording system |
Thermal-array printing |
Noise level |
≤15μVp-p |
Power supply |
AC: 220V+-10% DC: 7.4 Lithium battery |
Size |
190x90x40mm |
Weight |
800g |
- Hand-held single channel digital ECG machine with measurement report
- Automatic and manual operation modes
- LCD display ECG wave
- AC/DC power, built-in rechargeable Ni-MH battery
- Mini size, hand-held, portable, convenient for doctors’ use anywhere
