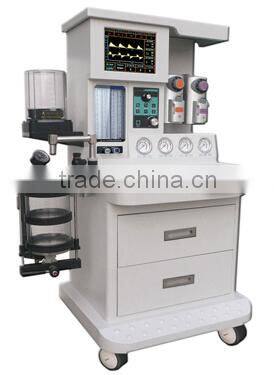

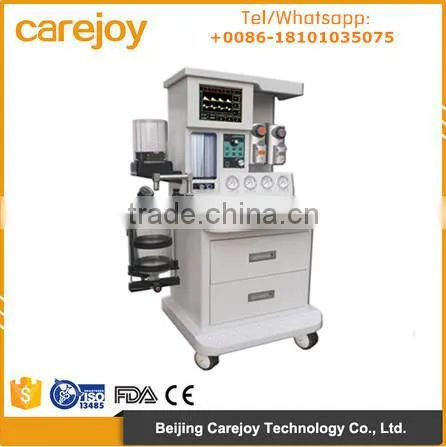

CE*ISO Approved 10.4 Inch Screen Trolley Anesthesia Machine Apparatus With Two Evaporator AM-900B

CE*ISO Approved 10.4 Inch Screen Trolley Anesthesia Machine Apparatus With Two Evaporator AM-900B thumbnail-1
CE*ISO Approved 10.4 Inch Screen Trolley Anesthesia Machine Apparatus With Two Evaporator AM-900B photo-1
US$ 2,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Properties:
The Basis of Surgical Instruments
Type:
Other, Other, Trolley
Brand Name:
Carejoy
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Properties The Basis of Surgical Instruments
Type Other, Other, Trolley
Brand Name Carejoy
Model Number AM-900B
Place of Origin Beijing, China
Product Description
Anesthesia Machine

Features:
  • Advanced versatile anaesthesia machine with more working modes including IPPV, VCV, PCV, SIMV, SIGH, MANUAL, STANDY, DEMO for selection
  • 10.4-inch TFT color screen showing P-t & F-t dual channel waveform
  • Adopts integrated computer controlled high speed data processing system with high reliability and advanced technology

Anesthesia Machine:

  • Patient: Adult, Pediatric
  • Driven mode: Pneumatically driven electronically controlled
  • Mode: Semi-open, Semi0closed or closed system
  • Power supply: 110/220V +/- 10%, 50/60Hz +/-1Hz
  • Internal battery: DC12V( over 4 hours)
  • Power consumption: ≤50W
  • Dimension: 910W x 618L x 1355H(mm)
  • Net weight: 112Kg

Main Unit:

  • Circle absorber: compact circle absorber
  • Bellow: 0-1600ml
  • Gauge: 4 units, one is for N2O, one is for Air, two is for O2
  • Flow meter(backlight design):
  • O2, N2O, Air five-tube flow meter
  • O2 flow meter: 0L/min~1L/mim~10L/min
  • N2O flow meter: 0L/min~1L/mim~10L/min
  • Air flow meter range: 0L/min~10L/min
  • O2 and N2O Linkage Device
  • Adjust O2 and N2O in proportion(O2 concentration is not lower than 25%)
  • Fast for oxygen:35L/min—75L/min
  • Gas source pressure

O2: 0.27MPa—0.55MPa

N2O: 0.27MPa—0.55Mpa

Air: 0.27MPa—0.55MPa

  • Anesthetic Vaporizer: two high precise vaporizers

Anaesthesia Ventilator:

  • Respiration Pattern: IPPV,VCV,PCV,SIMV,SIGH,MANUAL,STANDBY,DEMO
  • Display: 10.4 TFT color screen
  • Waveform: P-t, F-t
  • Tidal Volume: 20ml to 1600ml
  • Respiratory frequency: 1 to 65bpm
  • I:E ratio: 8:1--1:8
  • Inspiration pause: 0--50%Ti
  • Inspiration Pressure: 1--60cmH2O
  • Trigger Pressure: -10--10cmH2O
  • Pressure Alarm setting: High Alarm limit Set 1--60cmH2O,Low Alarm limit Set 0--20cmH2O
  • O2 Concentration Alarm setting: High Alarm limit Set 21--99%, Low Alarm limit Set 21--50%
  • MV Alarm setting: High Alarm limit Set 10--99L/min, Low Alarm Limit Set 0--40L/min
  • Monitoring Parameter (under both manual and control modes):
  • O2 concentration, MV, respiratory frequency, tidal volume, airway average pressure, PEEP, I:E ratio, air maximum pressure etc.
  • Alarm parameters: pressure high alarm, pressure low alarm, O2 concentration high alarm, O2 concentration low alarm, MV high alarm, MV low alarm, AC power lost alarm, O2 lost alarm etc.
  • Alarm silence function
  • CE*ISO approved 10.4 inch screen Trolley Anesthesia Machine apparatus with Two Evaporator AM-900B
