Home > Products > Anesthesia Machine > CE ISO marked 10.4 inch color TFT screen Trolley Anesthesia Machine apparatus with Evaporator Oxygen, nitrous oxide option 900A
CE ISO marked 10.4 inch color TFT screen Trolley Anesthesia Machine apparatus with Evaporator Oxygen, nitrous oxide option 900A
USD $2,000 - $6,000
/ Set
1 Set(Min.Order)
- 300 Set / Sets per Month
- Beijing
- Credit Card
You May Like
Product Details
| Properties: | The Basis of Surgical Instruments | Type: | Other | Brand Name: | Brandnew |
| Model Number: | AM-900A | Place of Origin: | Beijing, China |
Product Description
Product Description

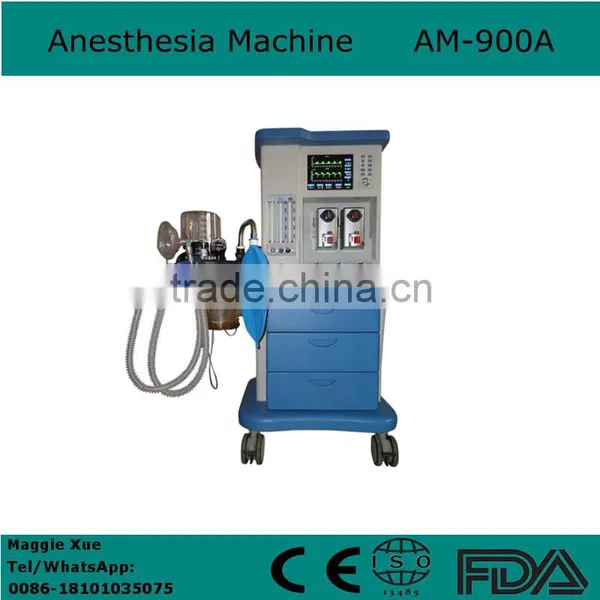

Anesthesia Machine
Features:
Anesthesia information management system output port
Owned power supply to support the work of the anesthesia machine for more than two hours
Host:
10.4 "color TFT screen display
Double-ended differential pressure flow sensor, machine control or manual mode can be real-time monitor the tidal volume, respiratory rate, airway pressure, pressure wave, the flow velocity waveform (bidirectional) on the pressure, the lower limit of suffocation, the oxygen concentration.
Breathing ring function
Can be closed, half-closed, half-open inhalation anesthesia
Scope: adults, children
Low gas source alarm: when oxygen gas source pressure is too low, will have more than seven seconds audible alarm
High-pressure limit: when airway pressure exceeds the upper limit set value, the ventilator automatically limited to stop the airway pressure continue going up to ensure patient safety.
Low-voltage protection: When the oxygen pressure is lower than 0.1MPa, the nitrous oxide pathway automatically cut off
Failure alarm, power failure continuation function
Rapid oxygen supply: 35 ~ 75L/min
Air source pressure: oxygen: 0.27 ~ 0.55MPa
Nitrous oxide: 0.27 ~ 0.55MPa
Air: 0.27 ~ 0.55MPa
Power supply: 220V ± 10%, 50Hz ± 1%
Double-ended differential pressure flow sensor, machine control or manual mode can be real-time monitor the tidal volume, respiratory rate, airway pressure, pressure wave, the flow velocity waveform (bidirectional) on the pressure, the lower limit of suffocation, the oxygen concentration.
Breathing ring function
Can be closed, half-closed, half-open inhalation anesthesia
Scope: adults, children
Low gas source alarm: when oxygen gas source pressure is too low, will have more than seven seconds audible alarm
High-pressure limit: when airway pressure exceeds the upper limit set value, the ventilator automatically limited to stop the airway pressure continue going up to ensure patient safety.
Low-voltage protection: When the oxygen pressure is lower than 0.1MPa, the nitrous oxide pathway automatically cut off
Failure alarm, power failure continuation function
Rapid oxygen supply: 35 ~ 75L/min
Air source pressure: oxygen: 0.27 ~ 0.55MPa
Nitrous oxide: 0.27 ~ 0.55MPa
Air: 0.27 ~ 0.55MPa
Power supply: 220V ± 10%, 50Hz ± 1%
Flowmeter:
Oxygen, nitrous oxide, air six tube flowmeter (0 ~ 10L/min)
Oxygen / nitrous oxide linkage to ensure that the oxygen concentration not less than 25%
Anesthesia ventilator:
With each set of adults, children bellows
Pneumatic electrical control
Detection parameters: tidal volume, respiratory rate, respiratory ratio, peak airway pressure, airway pressure waveform
Operating modes: manual, automatic
The respiratory mode: IPPV, SIGH, SIMV/f/2, SIPPV PEEP (0.5 ~ 2KPa)
Tidal volume: 0 to 1500mL
Respiratory rate: 4 ~ 60bpm
Respiratory ratio: 1:0.5 ~ 1:4 adjustable
Synchronous trigger pressure: -1 ~ 0KPa
Pressure upper limit: 2 ~ 6KPa
Pressure lower limit: 0.6 ~ 2KPa
Breathing circuit:
Oxygen / nitrous oxide linkage to ensure that the oxygen concentration not less than 25%
Anesthesia ventilator:
With each set of adults, children bellows
Pneumatic electrical control
Detection parameters: tidal volume, respiratory rate, respiratory ratio, peak airway pressure, airway pressure waveform
Operating modes: manual, automatic
The respiratory mode: IPPV, SIGH, SIMV/f/2, SIPPV PEEP (0.5 ~ 2KPa)
Tidal volume: 0 to 1500mL
Respiratory rate: 4 ~ 60bpm
Respiratory ratio: 1:0.5 ~ 1:4 adjustable
Synchronous trigger pressure: -1 ~ 0KPa
Pressure upper limit: 2 ~ 6KPa
Pressure lower limit: 0.6 ~ 2KPa
Breathing circuit:
Integrated design, integrated breathing circuit
Evaporator:
Evaporator:
High-precision dual-evaporator, enflurane and isoflurane (also provide other optional evaporator)
Concentration adjustment range: 0.5 ~ 5% VOL
Evaporator has the flow, pressure, and automatic temperature compensation function
Self-locking and interlocking functions
Capacity: 180mL
Concentration adjustment range: 0.5 ~ 5% VOL
Evaporator has the flow, pressure, and automatic temperature compensation function
Self-locking and interlocking functions
Capacity: 180mL
