High Energy Flat-top Beam Active Electro-optical Q-switched Laser

High energy flat-top beam Active electro-optical q-switched laser

Model: MES-550

- Q-switch and Peel mode
- Single pulse energy up to 1000mJ
- Flat-top beam mode
- Intelligent alarm system

What's METOS Different?

1. Over 10 years’ professional experience of vertical EO Q-switch YAG laser guarantee product quality;
2. T-PULSE™ technology generates better beam quality with high peak power;
3. Special designed laser head passed mechanical deformation test, sealed cover is dust proof and anti vibration, ensures long term stable working;
4. Strong energy output: exceed 12J/cm2 @3mm spot, enhance treatment result;
5. 10Hz high repetition rate with 1-7mm adjustable spot size, flexible adjustment for different application and fast treatment;
6. Enhanced laser peeling handpiece for skin rejuvenation and whitening, widen the application scope;
7. Excellent water cooling system with intelligent alert unit, ensures safe and longtime stable working;
8. 8.0” TFT color touch screen and arm with diode laser beam guide, for easy operation;
9. Over 600 sets system working over the world, Germany, USA, Australia, Japan, India, New Zealand, Denmark, Signore, Thailand...etc.;

Base on Our professional technical background and longtime experience with laser, This fantastic system bring the powerful, reliable and versatile platform for your laser aesthetic application.

With MES-550, you could feel the change of your life from the state-of-the-art laser. For most of skin treatment applications, such as tattoo removal, pigmented lesion removal, vascular lesion treatment, nevus removal...,  MES-550 would be your best choice.

The cost effective MES-550 Q-switched laser, become a valuable tool for the surgeon’s over the world. With perfect technical support and service network,we will provide convenient and fast on time service for you.

Powerful platform by T-pulse laser technology

T-pulse™ adopts the active EO Q-switched module with unique resonator technology to get stable high energy laser output. The giant laser pulse has only 6-10ns pulse-width which produced the mega-watts level high peak power!

The key components imported from Germany, MES-550 produced the high quality flat-top beam.It’s real uniform beam profile which would be better for the pigmented lesion broken and limit side-effect on normal skin.Especilly for the chloasma treatment, it need the lower energy with uniform beam profile to get the best result.

With our special housing and hardware platform, MES-550 would be used in different application environment.It’s very useful for some high humidity and high temperature range and adverse circumstances.

Q-switched Mode for Pigment Lesion Removal

According the selective photothermolysis theory, the laser with different wavelength could effect to different color pigment lesion. It would be safe for the normal tissue of skin.

With high peak power, the focused energy would concentrate on the pigment granules, then it would be boiled away or broken and bring out of body by lymphatic system.

EO Q-switch is an electrical signal controlled Q-switch. With this electro-optic device, the repetition rate could totally be controlled and energy can be adjust continuouslly. Moreover, the output energy stability is better than passive Q-switch laser.

MES-550 Q-switch mode could produce high peak power pulse laser with “ns” level narrow pulsewidth. It’s helpful for the pigment disintegration without any side-effect. All the action is in a single pulse rather than coming from multi-pulses which will lead to longer effect time on skin.

Peel Mode for Skin Rejuvenation
Soft laser peel is a new skin rejuvenation technology which could take effect with a special carbon lotion or carbon powder normally. The longer pulsewidth laser of MES-550 could scan the skin and make the skin softer and younger.

With the special handpiece for peeling, MES-550 laser peel could provide the additional function than any other types of Q-switched lasers in the market.You could also treat the skin with Q-switched mode and peel mode alternatively.

Intelligent ICMS cooling manage system

ICMS™ is our superior design on water cooling system management. The intelligent cooling management system provided real time monitor for the water cooling status.

All the alerts of cooling system are monitored by MCU control system,once any function work unproperly, the MCU would protect the system with corresponding procedures.Thus, you can work with MES-550 for longtime without any worries and break.

Durable and easy to use

1.7 jointed arm delivery system, make it easy for longtime treatment
2.Two handpieces choice base on different treatment mode
3.Red diode laser beam point, find the right treatment area exactly
4.Motor drived auto-switching with 1064/ 532nm wavelength change
5.Operation and parameter adjustment with color TFT touch screen

Typical Application
1.Removal of eyebrow line, eye line, lip line...
2.Removal of colorful tattoo:red, blue, black, brown...
3.Clearance speckle, freckle, coffee spots, sun-burn spots, age spots...
4.Removal of vascular lesion and spider vessel
   Removal of birth mark, Ota nevus, Ito nevus,black nevus...
5.Skin rejuvenation with laser peeling

Technical Specifications

l Laser Type: EO Q-switched Nd:YAG Laser;

l Wavelength: 1064/532nm;

l Output Energy(max.): 1000mj@1064nm, 400mj@532nm;1000mj@peel mode;

l Energy density(max.): 12.0J/cm2@1064nm;

l Pulse Width: 8±2ns@Q-switched mode, 200-250μs@peel mode;

l Repetition Rate: 1,2,3,5,10Hz;

l Spot Size: φ1-7mm for Q-switched mode, φ8mm for peel mode;

l Beam Mode: Flat-top;

l Cooling System: Closed Cycle Water to Air Heat Exchanger;

l Delivery: 7 jointed articulated arm;

l Control System: 8.0"TFT color touch screen;

l Electrical Power: 220V,10A,50/60Hz;

l Dimensions: 1100(H)×330(W)×830(D);

l Weight: 90Kg.

Interface:

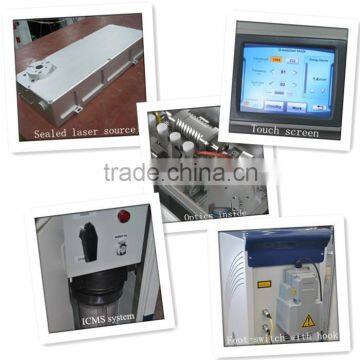

Photos:
