1064/532nm Pico Laser More Effective Than Q-switched Nd-yag Laser

1064/532nm pico laser more effective than q-switched nd-yag laser

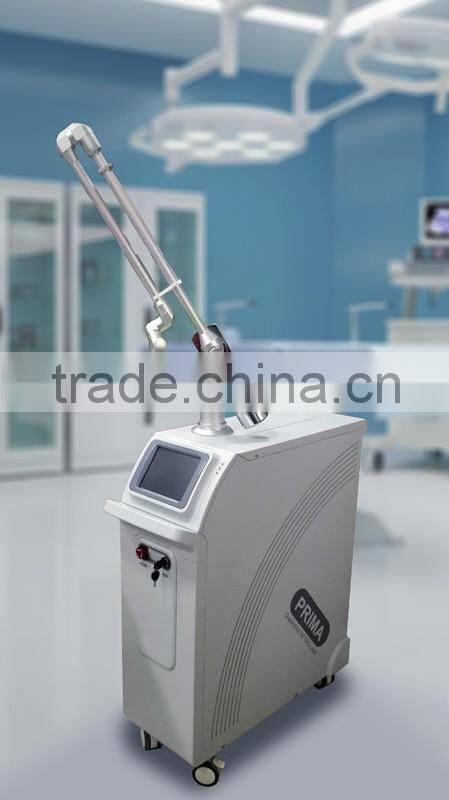

Model: MES-750

This Nd YAG laser system is a picosecond pulse solid-state laser system intended to treat skin conditions with high pulse energy and extremely short duration in the range of 300-500 picoseconds (ps). The device is capable of operation at 1064 nm and 532 nm wavelengths.

Typical Application
• Tattoo removal
• Skin revitalization
• Acne Scar Treatment
• Removal of pigmented lesions
• Wrinkle Treatment

What's the MES-750 picosecond laser system?

Our laser is a remarkably innovative dual wavelength picosecond laser. It enables removal of multi-colored tattoos, recalcitrant tattoos and benign pigmented lesions on any skin type. Its unique mode of action is based on delivering ultra-short picosecond pulses of energy to the tissue. These bursts of energy create a photo-mechanical impact which breaks up the tattoo ink or pigmentation into smaller, more easily eliminated particles.

What are the advantages of MES-750 picosecond laser?
MES-750 picosecond laser: Dual wavelengths – 1064 nm & 532 nm wavelengths in one laser system. Treat the widest range of tattoos – 2 wavelengths to treat most tattoo colors & types, including recalcitrant tattoos. Treat dermal and epidermal pigmented lesions – Large spot sizes enable deep penetration when needed. Highest peak power – For effective energy over the broadest range of spot sizes. Shortest picosecond pulses – 40% shorter picosecond pulses mean effective, yet lower energy for less risk of side effects.

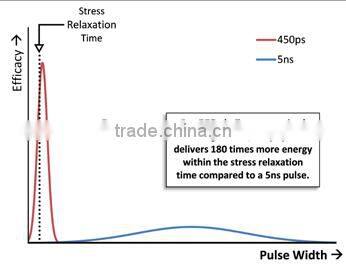

Picosecond vs. Nanosecond Technology
Traditional nanosecond lasers predominately rely on photothermal action, delivering heat to the pigment and surrounding tissue. Picosecond laser takes advantage of Pressure Wave Technology to shatter the target ink into tiny particles that are easily eliminated by the body.

Technical Specifications

l Laser Type: Nd:YAG Picosecond Laser;

l Wavelength: 1064/532nm;

l Output Energy(max.):  >350mj@1064nm;

l Peak Power: 1.8GW;

l Pulse Width:  300-500 Picoseconds (ps);

l Repetition Rate: 1,2,3,5,10Hz;

l Spot Size: φ1-7mm;

l Cooling System: Closed Cycle Water to Air Heat Exchanger;

l Delivery: 7 jointed articulated arm;

l Control System: 8.0"TFT color touch screen;

l Electrical Power: 220V,10A,50/60Hz;

l Dimensions: 1100(H)×330(W)×830(D);

l Weight: 90Kg.
