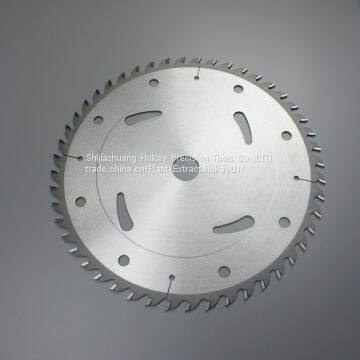

Power tool accessories tungsten carbide cutting disc wood cutting
Tungsten carbide tipped (TCT) saw blade, which is installed in circular saw, mitre saw, mill saw, etc, for timber, solid wood, hard / soft wood, laminated board, mdf board, plywood cutting.
No. |
OD |
Kerf |
Body |
ID |
Teeth |
Type |
ID |
D (mm) |
B (mm) |
b (mm) |
d (mm) |
Z |
T-type |
01 |
250 |
3.2 |
2.2 |
25.4/30 |
60 |
ATB/TCG |
02 |
300 |
3.2 |
2.2 |
25.4/30 |
60 |
ATB/TCG |
03 |
300 |
3.2 |
2.2 |
25.4/30 |
72 |
ATB/TCG |
04 |
300 |
3.2 |
2.2 |
25.4/30 |
80 |
ATB/TCG |
05 |
300 |
3.2 |
2.2 |
25.4/30 |
96 |
ATB/TCG |
06 |
300 |
3.2 |
2.2 |
80 |
96 |
ATB/TCG |
07 |
350 |
3.5 |
2.5 |
25.4/30 |
72 |
ATB/TCG |
08 |
350 |
3.5 |
2.5 |
25.4/30 |
84 |
ATB/TCG |
09 |
350 |
3.5 |
2.5 |
25.4/30 |
96 |
ATB/TCG |
10 |
350 |
3.5 |
2.5 |
25.4/30 |
108 |
ATB/TCG |
11 |
400 |
3.5 |
2.5 |
25.4/30 |
96 |
ATB/TCG |
Advantage:
1: Superior cut quality due to very high plate quality, cutting most quantity MDF, chipboard, laminate board, plywood
2: Excellent quality carbide tip, with fast, sharp, smooth cutting surface and finish edge.
3: Straight precision vibration free cuts, radial run-out max 0.03, lateral run-out max 0.02.
4: Noise reduced, perfectly pretensioned
5: Most value for price.
Materials:
1.Tungsten Carbide tip from Ceratizit, Luxemburg, KCR05/06
2. Saw body: 75Cr1 from Grasche Group, Germany.
3. Technology conducted by German expert, Standard: German DIN54, DIN8033.
Application:
1: For cutting solid wood, soft wood, MDF, chipboard, laminates, melamine board, plywood
2. Used on table saw, Precision panel saws, push saws, sliding table saws.
Company information:
1: Top grade steel plate from 75Cr1 Germany, SKS51 Japanese, etc, Ceratizit carbide tips large size, make sure saw blade high wear resistance, and long working life
2: Advanced Germany VOLLMER equipment, Sandwich Soldering Flake, etc, guarantee the blades high precision, excellent performance and stable working condition.
3: High tech support, scientific design, strict production management, adopt zero tolerance defective scrap system to ensure high quality of users qualitative experience.
4: Cutting tools manufacturing 20 years experience. Workers do well in every process in flattening, welding, grinding, adding stress, testing, packing, etc.
