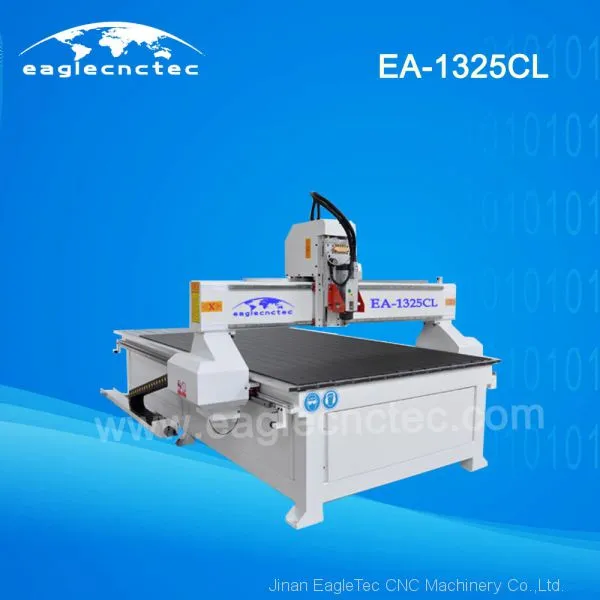

China CNC Router Manufacture
Features
1) Frame is welded with seamless steel structure; processed by high temperature tempering
treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by 6
legs with adjustable leveling feet.
2) Beam is made of steel. A steel beam is superior to a aluminum in it’s ability to suppress
and absorb the forces created during cutting. It is internally ribbed in order to stiffen the
assembly; this design is minimizing the vibration while increasing accuracy and repeatability.
3) The X and Y axis motion is via a rack and pinion drive, which is hardened for extremly
long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany
rolling antibacklash ball screw.
4) Each axis of motion is supported on high precision linear guide ways. Hiwin linear guides
allow for higher feed speeds and a better quality of cut.
5) The Y-axis uses a dual drive, one for each side of the gantry.
6) Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/UcanCAM etc.
7) Has the function of re-carving after break point and power failure.
8) All the linear guides are centrally lubricated from a central system.
