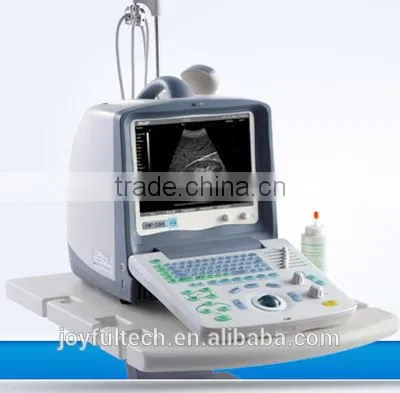

Obstetric ultrasound system ultrasound scan machine

Mainparameter

General

Imaging mode: B, B+B, 4B, B+M, M
Gray scales: 256
Display: 10 inches non-interlaced SVGA
probe frequency: 2 ~10MHz
Probe connector: 2 standard
Beam-forming: Digital Beam-forming
Dynamic Receiving Aperture
Dynamic Frequency Scanning
Dynamic Receive-focusing
Dynamic Filtering
Scanning angle: From 30 to 120 degree (depending on probes)
Scanning depth (mm): From 40 to 250 (depending on probes)

Imaging Processing

Pre-processing:
Pre-settings, Dynamic range, Edge enhancement, Frame correlation
Line correlation, 6-segment TGC adjustment, 4-focus adjustment

Post-processing:
Gray transform, Gamma correctin, Rejection, Left-right reverse
Up-down reverse, Polarity reverse
Min. 11 levels zoom, Partial zoom, Real-time histogram

Functions

Cine loop: 365 frames bidirectional cine-loop
Storage media: Built-in flash, external pen drive
Storage: Min. 50 frames permanent storage and 16-frame snapshot
Body mark: 64 types
Probe auto-detection
10-level acoustic power output adjustment
