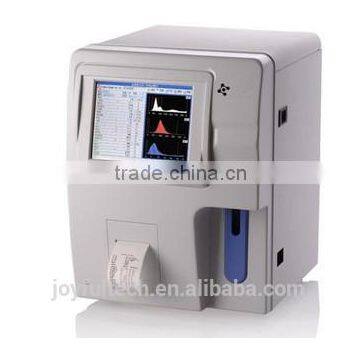

clinical laboratory equipment
Specification
Model |
TE-3000 |
Parameters |
23Parameters 20+3histogram |
Principles |
Impedance |
Sample volume |
20μl venous blood or capillary |
Sample processing |
Open tube |
Aperture Diameter |
WBC 80 μm RBC/PLT 80μm |
Dilution Rations |
Whole blood 1-500 Capillary Blood 1-250 |
Whole blood 1-40000 Capillary Blood 1-40000 | |
Data storage |
20000 test results with histogram |
Throughput |
60 samples/hour |
Display |
8 inch colour LED |
Carryover |
WBC,RBC,HGB≤0.5%,PLT≤1% |
Aperture |
Double apertures for WBC and RBC/PLT |
Patented aperture technology |
Automatic block-clearing of high pressure and lower rate of block |
Printout |
built-in the thermal printer(optional external printer) |
input/outpout |
one RS232,1keyboard,1USB,1printer port |
Operating environment |
Temperature 15°C-30°C,Humidity 30%-85% |
Power requirment |
100-240V~50/60Hz |
Dimension |
440(W)*354(D)*430(H) |
Weight |
17KG |
Main parameter
1.How It Works: Electrical impedance method, cyanide met hemoglobin method and non-cyanide SFT method
2.Test Parameters: WBC three categories, 22 parameters, 23 parameters
(including color histograms of WBC, RBC, PLT)
3.Specimen Amount: Whole blood: 9.6μL; peripheral blood(direct detection): 9.6μL; peripheral blood
(pre-dilution mode): 20μL
4.Test Speed:Single-channel: 30 samples/h, dual-channel: 60 samples/h. May be continuous 24 hours a day, with automatic sleep and wake functions
5.Results Storage: The device saves 1.2 million copies of the results with all three histograms automatically
6.Quality Control Methods:L-J graph, X, SD, CV%
7.Automatic detection reagent margin, closed reagent tube
8.Calibration: Manual calibration and automatic calibration
9.Reference Value Setting: 8 settings groups with adult male, adult female, child, newborn, general all purpose and 3 groups of custom settings
10.Information: The device supports a variety of multiple patient information fast Chinese input, including 12 kinds of information such as name, department and censorship.
11.Operation: Chinese Windows color operating system, graphical buttons, supporting mouse operation
12.Interface: A parallel printer interface, a VGA display interface, two RS-232 interfaces, two USB interfaces and two PS / 2 interfaces
13.Report Printing: Built-in high thermal printing, optional six reporting formats in English, and an optional external printer
14.Working Environment: Working temperature of 15-35°C, and can be used in high altitude environment
15.Power supply: AC 220V 50HZ
Feature
- 3 part differentiation, 20 parameters +3 histograms
- Double apertures for WBC and RBC/PLT separately
- Whole blood and pre-diluted counting modes available for different patients' sample requirement
- 60 samples/hour throughput
- Storage capability of up to 20000 sample results with histograms
-
External keyboard, optional barcode scanner, printer port and other enhanced function
Warranty
We offer 1 year free maintenance.
We have set up 24 hours online service.As a professional medical manufacturer around the world, we consist quick and efficient service and maintenance whenever and wherever you need us.
Choose Me
OEM:Yes
Experienced for many years:Yes
Exhibition Attended:Yes
Research&Develop Team:Yes
CE Certificate:Yes
Custom Personalized Service :Yes
High Quality:Of course!
