Help CenterTattoo Removal Laser Machine Powerful 10.4 Inch 2 In 1 IPL ND YAG Laser CPC Connector Black Face Nd Yag Machine Movable Screen Pigmented Lesions Treatment
Related Products
-
Powerful 10.4 Inch 2 in 1 IPL ND YAG Laser CPC Connector Black Face Laser Machine Movable ScreenUS$ 1 - 5,500MOQ: 1 Unit -
Powerful 10.4 Inch 2 in 1 IPL ND YAG Laser CPC Connector Birthmark Removal Machine Movable ScreenUS$ 1 - 5,500MOQ: 1 Unit
-
Powerful 10.4 Inch 2 in 1 IPL ND YAG Laser CPC Connector Best Laser q Switch nd Yag Laser Removal of Tattoo Movable ScreenUS$ 1 - 5,500MOQ: 1 Unit
-
Powerful 10.4 Inch 2 in 1 IPL ND YAG Laser CPC Connector Beauty Center Equipment Movable ScreenUS$ 1 - 5,500MOQ: 1 Unit
-
Powerful 10.4 Inch 2 in 1 IPL ND YAG Laser CPC Connector All Color Tattoo Removal Laser Machine Movable ScreenUS$ 1 - 5,500MOQ: 1 Unit
The premium Q-switched Nd:YAG Laser offers the light of single wavelength 1064/532nm with sequential and uniform energy output, which will be on the target tissue directly to shatter pigments cell, not damage any normal tissue. It is very safe and effective treatment procedure for various tattoo and pigment lesions.
By bonding technology, the treatment performance is more effective than previous, it is our newest development with advantages of no light leakage, no need to debug, lower than 1‰ maintenance and much longer life time.

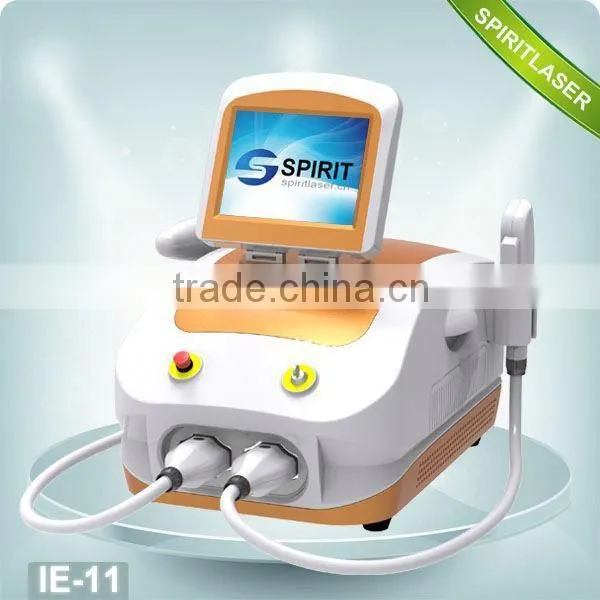

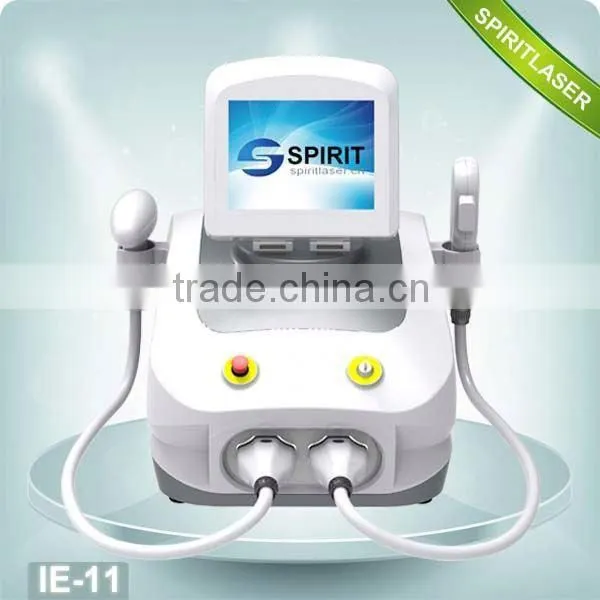

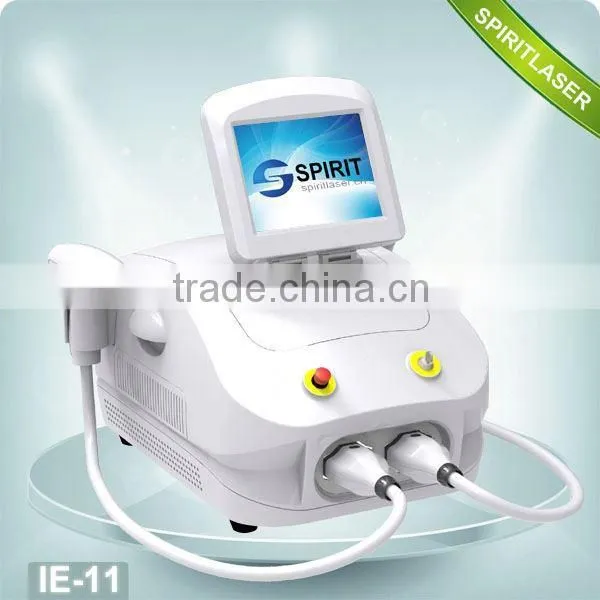

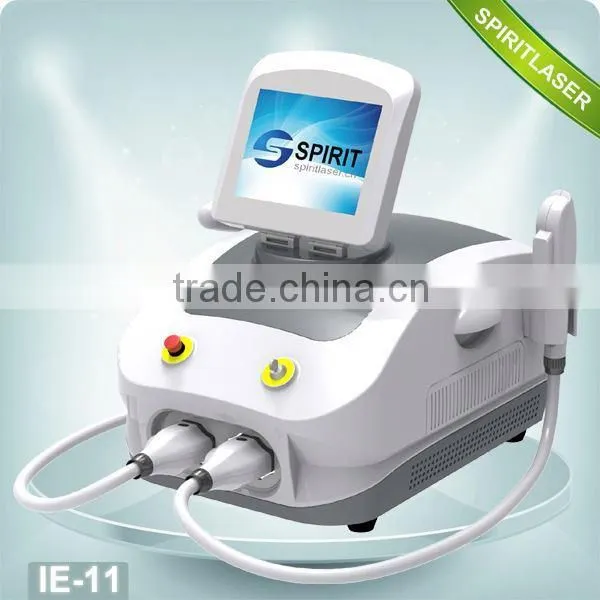

Powerful 10.4 Inch 2 in 1 IPL ND YAG Laser
CPC Connector black face nd yag machine Movable Screen
Model number: IE-11
The 2 in 1 intelligent beauty machine is multi-function which integrates with IPL+ND YAG Laser
black face nd yag machine
1. IPL work theory
- IPL (Intense Pulsed Light) is a kind of light with high energy and broad wavelength. Intense Pulsed Light with broad spectrum affects pigmentations, vascular lesions and hair follicles. Photothermic and photochemical action will be triggered by the radiation of IPL. Pigment is shattered and eliminated out of body through metabolism.
- Meanwhile, IPL will also promote collagen production, which can make the skin more flexible and smooth. The light with long wavelength can easily pass through epidermis layer to the hair follicles in the deep skin layer. At the targeted area, high energy occurs to destroy follicles and hair shaft, preventing regrowth of new hair. With a series of treatment, IPL technology can help restore a more youthful appearance without downtime and side effect.
2. Q-switch ND YAG Laser work theory
- The energy of Q-switched ND YAG laser can be absorbed by pigment of target tissue like tattoo, speckle, birthmark and so on.
- The pigment will be fragmented so small that they can be metabolized by the lymphatic system or egested out of the body. Thus the tattoo or other pigmentations will be removed without damage to normal tissue. The treatment is safe and convenient without downtime and side effects.
- IPL: Hair removal, speckle removal, skin rejuvenation, spider veins removal, acne removal, wrinkle removal
- ND YAG Laser
4. Features of IE-11 Beauty Machine:
black face nd yag machine
1). 2 handpieces (IPL+ND YAG Laser)
A. IPL handpiece:
- Spot size: 12x30mm / 15x50mm optional
- Four filters: 430/530/640/690nm
- Dual flash switches
- Tips: 532nm & 1064nm
2). New Design, More convenience, safer
- 10.4’‘ Movable color touch screen, all parameters setup can be finished easily here
- Simple design, internal modular design, easy installation and maintenance
- User friendly software, e
- Multi-language for your choice
- Alarm protection system of water flow and water temperature, stop all working immediately in case of any risk at the first time, offering a safe operation to you
3). Free LOGO service : Add your LOGO on start screen for promoting your brand.
4). CPC connector
5). Power Plugs : As per your requirements!
5. Technical Specifications
black face nd yag machine
| General Specification |
Screen: 10.4' Movable color LCD touch screen Output power: 2000W Multi software languages Cooling system: semiconductor+ air + water + cooling gel Skin Cooling: -6 °C~ 0 °C Voltage: 100~240V Machine's size: 58X50X39cm Package size: 71X59X58cm N.W.: 25KG G.W.: 43KG
|
| IPL system |
IPL Energy: 1-50J Pulse No.: 1-6 Pulse Duration: 1-10ms Pulse Delay: 1-100ms Wavelength: 430/530/640/690nm standard (480/560/590/750nm optional) Spot size: 12*30mm, 15*50mm optional
|
| ND YAG laser |
Laser type: Q-SWITCH ND YAG LASER Laser energy: Max. 1500mj Pulse width: 1-3ns Frequency: 1-10HZ Wavelength: 1064nm/532nm (1320nm for skin rejuvenation optional)
|
Application of q swithched nd yag laser tattoo removal machine:
ND YAG laser : tattoo/eye embroidery/eyeline/freckles removal and skin whitening.
1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo, failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and age spot, nevus in black and blue, scarlet red, deep coffee and etc. deep color.
532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line tattoo, tattoo , lips line, pigment, telangiectasia in shallow red, brown and pink and etc. light color. pigment removal.
1320nm Professional for skin rejuvenation and face deep cleaning , blackhead removal, skin tightening and whitening, skin rejuvenation.
6. Packaging
7. More Combinations for you choose --- Only you can not think of, no I can't do.:)~~
The model also have OTHER 8 x VERSIONS as following:
1. IPL+YAG (The above introduction)
2. SHR+IPL
3. SHR+YAG
4. SHR+IPL+YAG
5. SHR+E-LIGHT
6. E-LIGHT+YAG
7. SHR+E-LIGHT+YAG
8. IPL+RF
9. E-LIGHT+RF
8. Delivery
9. Quick details
Manufacturer |
Yes |
Keyword |
black face nd yag machine |
Training and After-sale service |
offer |
Type Therapeutic range: 1.1064nm Wavelength:Remove black and dark bluetattoo pigments, such as tattoos, eyebrows, dark color around the eyes, freckle, age spot etc. 2.532nm Wavelength: Remove red and brown tattoos and red mark. 3.1320nm wavelength:The 1320nm wavelength: Skin whitening and tightening. |
Portable machine |
Brand name |
SPIRITLASER |
Place of Origin |
Beijing China (Mainland) |
Packaging Detail |
aluminum alloy case |
Delivery Detail |
3-7 DAYS |
Transportation |
By express (DHL, EMS, UPS, TNT, Fedex); By air express to air port; |
Payment method |
T/T, WESTERN UNION, MONEY GRAM, PAYPAL… |
FOR MORE DETIALS, PLEASE SEND US INQUIRY. :)
Welcome to China !~~
Welcome to Beijing !~~
Welcome to SPIRITLASER !~~
Advantages:
Q-switched ND: YAG laser with dual wavelengths (1064nm&532nm).
8ns Pulse Width for ideal results on pigmentation and tattoo removal with reduced pain.
High terminal output energy (up to 1500mj) for more efficient results.
Repetition Rate is up to 6Hz for faster treatment.
Long-life designed laser system.
Multi-spot size 1-7mm is ideal for a wide variety of treatment parameters.
Spot size adjustor is optional.
