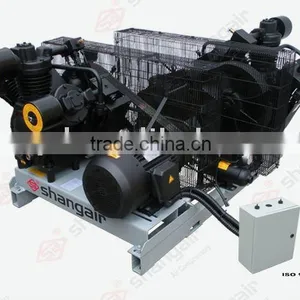

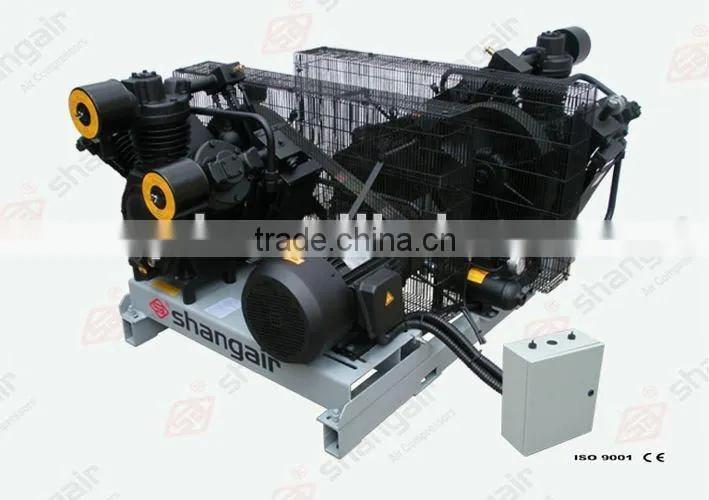

Specially for PET Bottle Blowing High-pressure Air Compressor
US$ 4,800 - 5,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Piston
Configuration:
Stationary
Power Source:
AC Power
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Piston
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Lubricated
Mute
No
Place of Origin
Jiangsu, China
Brand Name
SHANGAI
Model Number
2.4/30
Specially for PET Bottle Blowing High-pressure Air Compressor
Discharge capacity: 2.0-2.4m3/min
Discharge pressure: 30Bar
Model No. |
Air Discharge
(m3/min)
|
DischargePressure
(Mpa)
|
Motor Power
(kw)
|
Weight
(kg)
|
Size (mm)
Length×width×height
|
2-09WM-1130 |
2.0 |
3.0 |
11×2 |
1050 |
1900×1700×950 |
2-09WM-1130H |
2.4 |
3.0 |
11×2 |
1090 |
1900×1700×950 |
2-09WM-1530 |
2.4 |
3.0 |
15×2 |
1150 |
1900×1700×950 |
Main Characters of Shangair Brand Specially for PET Bottle Blowing High-pressure Air Compressor:
- Low exhaust temperature (when exhaust pressure is 7.0 Mpa, exhaust temperature is equal to or less than 170; aftercooler-processed temperature at outlet is only 15 to 20 higher than ambient temperature) and oil consumption is low (oil consumption is less than 2.6g/h).
- Advanced Shangair patented direct-flow valve technology is used for low pressure air compressor, which increases air output by 13% and reduces energy consumption by 11%.
- Ring valve made from Sweden stainless steel strip is used for high pressure air compressor.
- In order to ensure safety and reliability of air compressor, redundancy design principle is applied and multiple protection measures are taken; overload protection; overheat protection; phase-failure protection; undervoltage protection; drain and exhaust when unloading and stopping running the equipment; ensure zero-pressure start; ensure interstage timed drainage when air compressor operates continuously, which effectively prevents water flood and liquid impact.
- There are interstage safety valve and pressure indicator; pressure and temperature measuring interface is available; it is convenient for user to install and debug remote monitoring system.
- Use Shangair patented multi-stage complex impedance suction filter featuring low noise and pollution resistance.
- Advanced inductive low oil level alarm (or forced stoppage) device featuring stable performance and reliability and ensuring that the compressor is free from oil shortage and burn-in failure.
- 5-digit digital counter recording accumulated operation hours of the compressor.
- Service life of plated piston ring is three to four times longer.
- Completely new dynamic balancing design; vibration severity is only one fourth of the internationally advanced level
