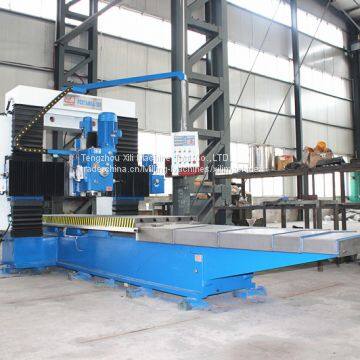

X2012 tengzhou xili Milling Machine
Specification
Specification | Unit | X2012 | ||
Max. travel | Length | mm | 4000 | 4000 |
Width | mm | 1400 | 1400 | |
Height | mm | 1000 | 1000 | |
Distance between columns | mm | 1600 | ||
Table size | Length | mm | 4000 | 4000 |
Width | mm | 1250 | 1250 | |
Table feeding speed | Feed | mm/min | 25-450 | 25-450 |
Rapid travel | mm/min | 1300 | 1300 | |
Spindle taper | 7:24, ISO50 | |||
Spindle speed step | r/min | 6steps 82-505 | ||
Spindle swivel angle | ±35° | |||
Feed rate of milling head | mm | Along the cross rail:65/320/890 Side milling head:50/265/730 | ||
Power of spindle motor | kw | 7.5 | ||
Power of table motor | kw | 7.5 | ||
Overall size | Length | mm | 9000 | 9000 |
Width | mm | 3550 | 3550 | |
Height | mm | 3150 | 3150 | |

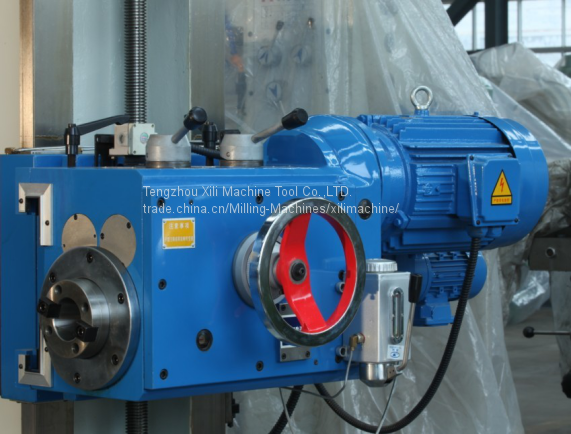

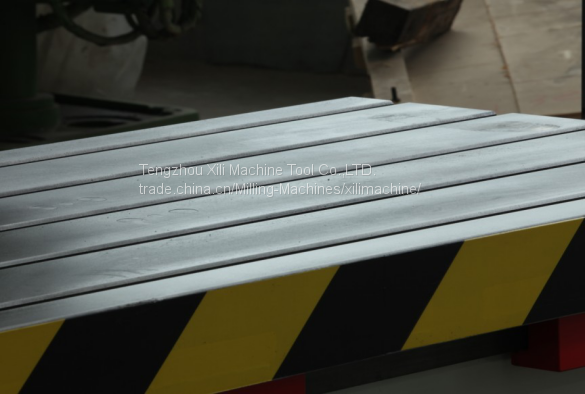

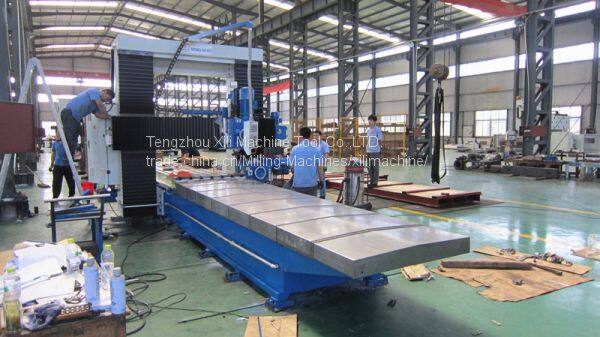

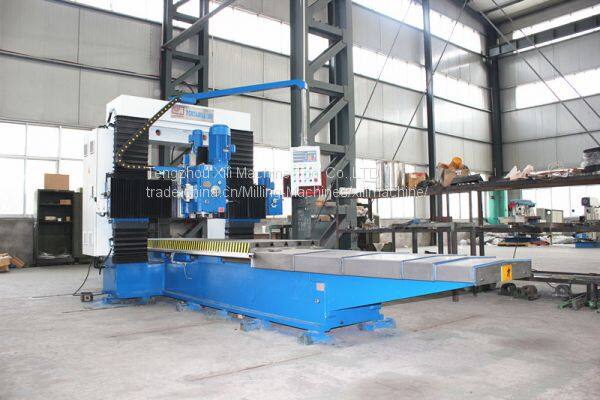

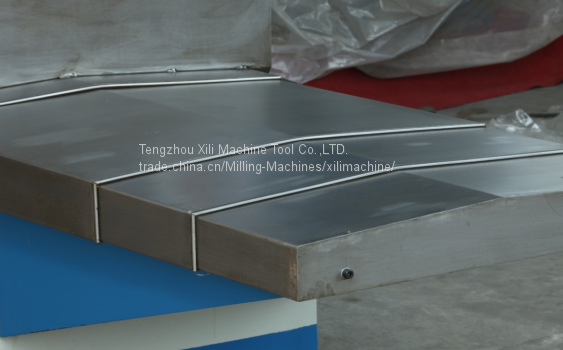

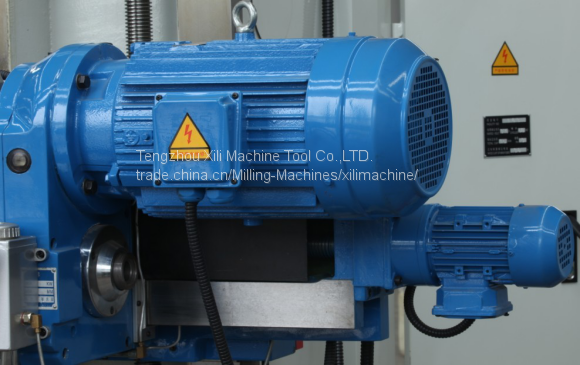

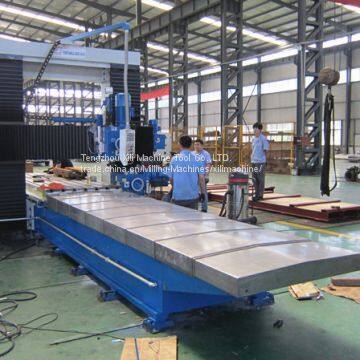

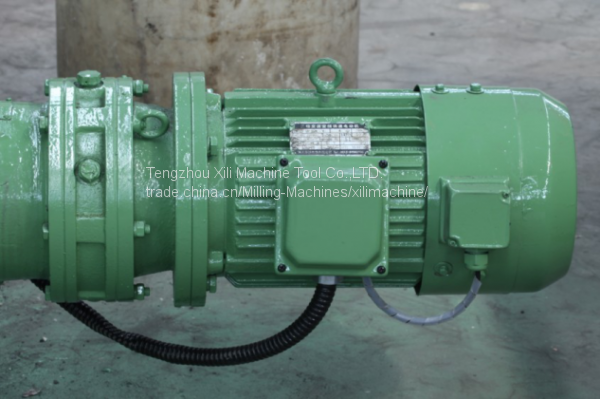

XL6436 Photos
Company information
Tengzhou Xili Machine Tool Co., Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer not trading company.All our products passed CE, ISO9001. Our main customer like: Germany KNUTH, Austria Bernardo. You can trust our quality and service.
Hope we can built long-term business relationship with you.
Our service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
