PP Colorful Sprial Hose Guard/spiral Guard for Hydraulic Hose

Standard package, inner PP bags, outer carton, or as customzied

PP colorful sprial hose guard/spiral guard for hydraulic hose

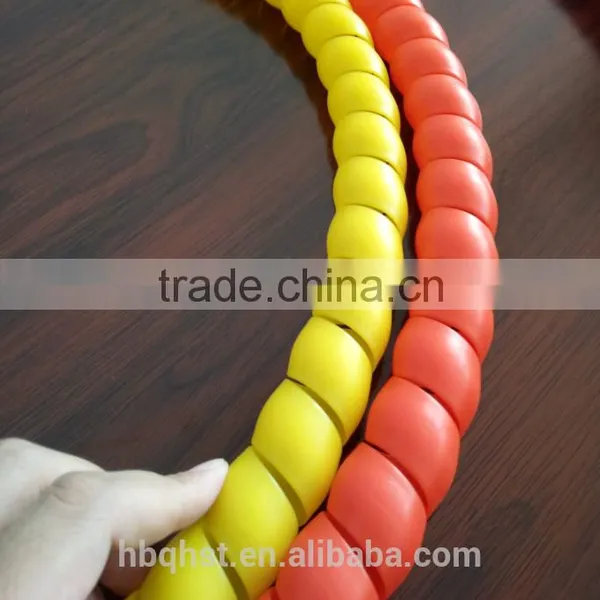

Product pictures:

Specification

Material  PP,PE or PA

Color  black,yellow,green,red,blue etc.(as your requirements)

Size  Φ10mm to Φ155mm

Surface  two kinds----convex surface and flat surface

Performance

1)Exterior surface:Spiral protection sleeve surface smooth, no lack of material, cracks, damage and glitches; no foaming and uneven; no impurities and variedness

2)Shore hardness is generally 85 to 90 degrees

3)Good resistance to high and low temperature performance

4)Good oil resistance

5)Good abrasion resistance

6)Good tensile strength and impact resistance.Tensile strength at room temperature is generally 25 ~ 30Mpa;

7) good UV resistance. Black spiral protection sleeve product line by adding a certainratio of carbon black to enhance the spiral sleeve UV protection properties.

8)Good antistatic property

Installation method

1)Revolving from the middle to the ends

2)Revolving from one end to the other end

Application

Widely used in excavators, loaders, road rollers, pavers, forklifts, cranes, dump trucks and other construction machinery and injection molding machine equipment. Mainly installed in the hydraulic hose, wire and cable products external. Its function is to enhance the hydraulic hose, wire and cable products internal wear, anti-static and UV resistance in a variety ofharsh environments  to play a security role. Installing spiral protection sleeve will not only improve aesthetics, and can extend the life of the product within 3 years. With the traditionalmetallic spring products, hose protective sleeve has ease of installation, and better wear resistance; anti-aging, corrosion resistance can be strong;More excellent, more convenient,more environmentally friendly energy-saving effect.

 Customization

a,The specifications of the rubber material.
b,Drawing and sample are highly appreciated.
c,Working environment or applications of the products.
Our services
1,Strict quality control step by step;
2,Good after-sale service;
3,Factory direct sale;
4,Free samples available;
5,Customize & OEM;

Qualification

 ISO9001  qualification

16949      qualification

 2010 Shanghai Word Expo private enterprise joint pavilion member

 Chinese state-owned enterprise --- JCM qualified supplier etc

Package:

Process:

Company Culture:

If you want to know more about our product, Welcome to contact us. We'll be serve for you within 24 hours!
