FHG -2 Rotary Bar screen machine /Grille for ETP
Features
1. The movement with the whole grid surface.
2. With overload protection device, reliable work.
3. Supply the complete set, convenient in installation.
Functions and Introduction
Mechanical Fine Screen (Type XQ Circulation Toothed Harrow Mud Cleaner) is one of the important dirt pretreated and blocked equipment in the wastewater treatment. It can be applied for drainage pumping plant, urban wastewater, industry wastewater, and coarse or fine screen.
Application:
Structures and Working Principles

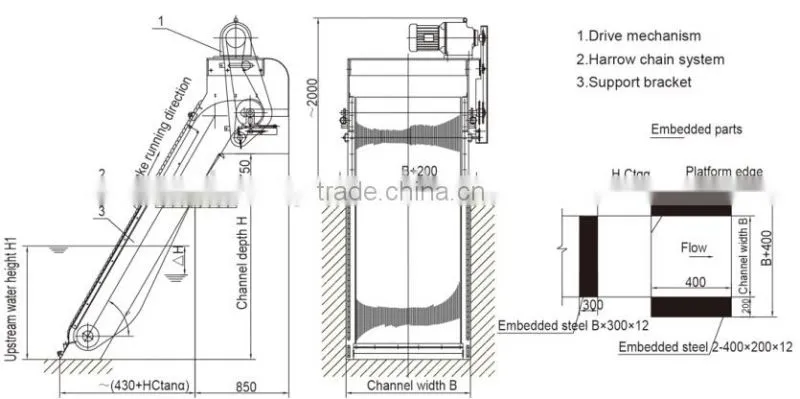

Toothed harrow made of nylon or stainless steel is equipped to the chain shaft according to certain rankings, which will form an enclosed circulating toothed harrow surface. The whole toothed harrow surface does the circulating exercise from top to bottom driven by the driven chain. The solid suspended matter intercepted on the toothed harrow will be picked up to the platform, and cleaned by turning the brush. Then the goal of protecting the water pump and reducing subsequent work load will be reached.
Model data :
Product details
If you are interested in our product, contact me!
We will do our best to be of service for you !
