NKN 1R 2.2K 11K ohm 10 watt Noninductive Wirewound Electric Resistor
Wirewound Noninductive Resistors(NKN)
Features:
1,Good heat-durability,low temperature coefficient, low noise, high overload power.
2, Operating ambient temperature:-55 to +275.
3,Surface is nonflammable,the 1/4-6W coating is gray white and indicate the resistance value by color ring, indicate a green ring at the behind of the precision color ring, the 7W or over will indicate the resistance value by lettering and coating is green.
4,Resistance tolerance: ±1%, ±2%,±5%,±10%.

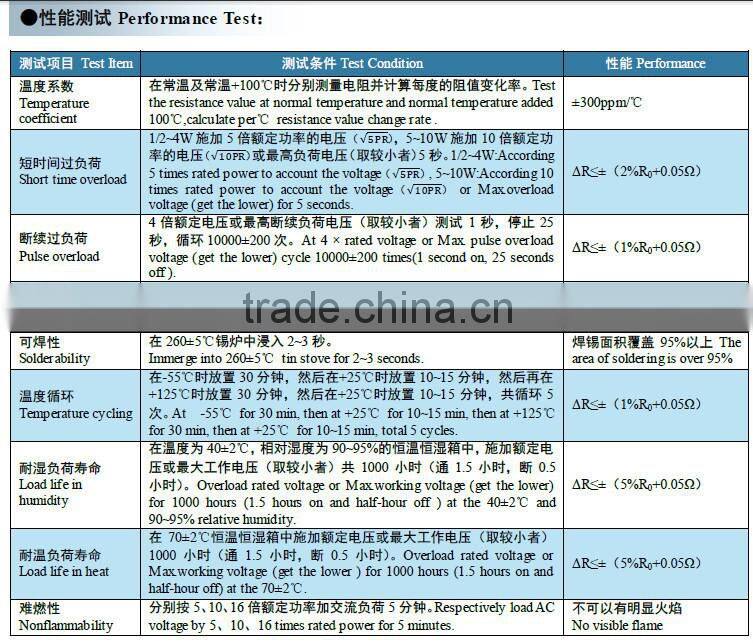

Performance Test:
Test Item Test Condition Performance
Temperature coefficient ±300ppm/
Short time overload R≤±(2%R0+0.05R)
Pulse overload R≤±(1%R0+0.05R)
Resistance to soldering heat R≤±(1% R0+0.05R)
Solerability The soldering area is over 95%
Temperature cycling R≤±(1% R0+0.05R)
Load life in humidity R≤±(5% R0+0.05R)
Load life in heat R≤±(5% R0+0.05R)
Nonflammability No visible flame
|
NKN Non-inductive wire-wound Resistors |
1/4W 1/2W 1W 2W 3W 4W 5W 6W 7W 8W 10W |
±5% ±2% ±1% |
0R01-100R |
