KNR High Load Power 50R 650 ohm 10K Wirewound Resistor
Wirewound Resistors KNR

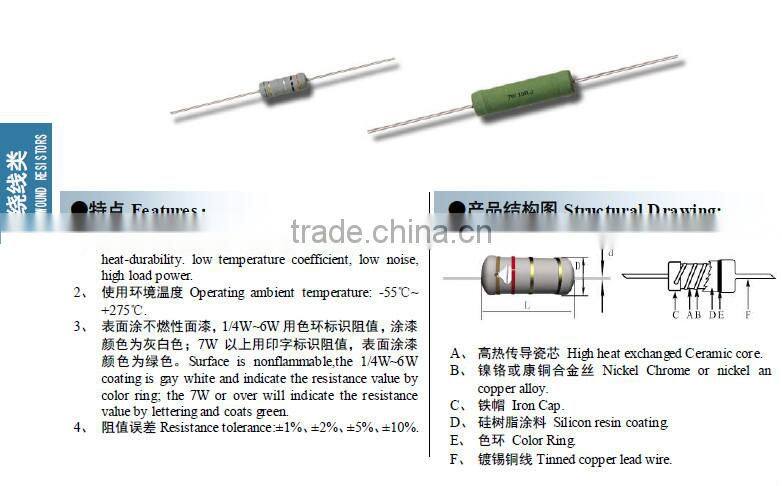

nt, low noise, high overload power.
2, Operating ambient temperature:-55°C to +275°C.
3,Surface is nonflammable, the 1/4W-6W coating is gray white and indicate the resistance value by color ring, the 7W or over will indicate the resistance value by lettering or coating is green.
4,Resistance tolerance: ±1%, ±2%,±5%,±10%.
Power: 1/4W,1/2W,1W,2W,3W,4W,5W,6W,7W,8W,10W
Tolerance: ±1%, ±2%,±5%,±10%.
Range:0R01-47K
Description |
Power |
Tolerance |
Range |
||
|
KN Wire-wound Resistors |
1/4W 1/2W 1W 2W 3W 4W 5W 6W 7W 8W 10W |
±5% ±2% ±1% |
0R01-47K |
||
|
NKN Non-inductive wire-wound Resistors |
1/4W 1/2W 1W 2W 3W 4W 5W 6W 7W 8W 10W |
±5% ±2% ±1% |
0R01-100R |
||
|
BKN Glaze Wire-wound Resistors |
1W 2W 3W 4W 5W 6W 7W 8W 10W 12W |
±5% ±2% ±1% |
0R1-47K |
||
|
BVR/LVR Low Value Alloy Wire-wound Resistors |
1W 2W 3W 5W 10W |
±5% ±1% |
0R01-10R |
||
|
|
|
|||
